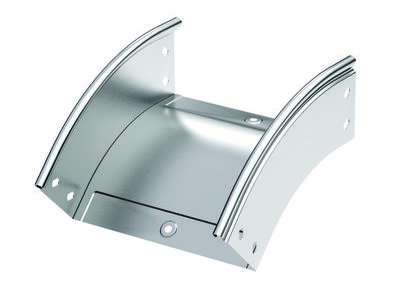

CD 45 external vertical angle 80x80, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36861KHDZ
CD 45 external vertical angle 80x80, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
CD 45 external vertical angle 80x80, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code: 36861KHDZ
  • To ask a question
  • Characteristics
  • Kit accessory’s structure
  • Accessories
  • The accompanying goods

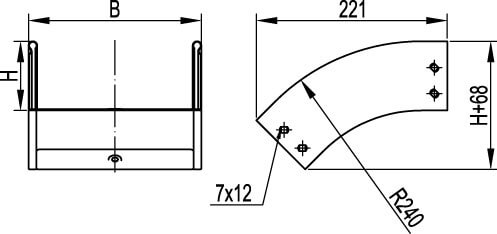

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Hot-dip galvanized
Material thickness, mm 0.8
Deflection (angle) 45°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Cable tray width, mm 80
Cable tray height, mm 80
Change of direction Vertically declining
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories 45º vertical external bend
Height 80 mm
Thickness 0.8 mm
Material Hot-dip galvanized
Width 80 mm
