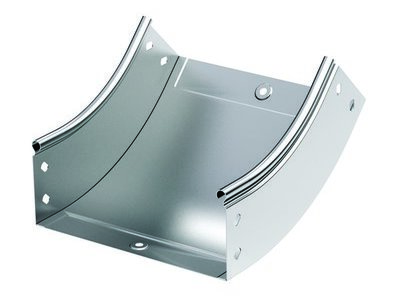

CS 45 internal vertical angle 50x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36720KHDZ

CS 45 internal vertical angle 50x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36720KHDZ
Colour Light grey
Model Included connector
Surface protection Hot-dip galvanized
Material thickness, mm 0.8
Deflection (angle) 45°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 150
Cable tray width, mm 50
Cable tray height, mm 50
Change of direction Vertically rising
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories 45º vertical inner bend
Height 50 mm
Thickness 0.8 mm
Material Hot-dip galvanized
Width 50 mm
The accompanying goods

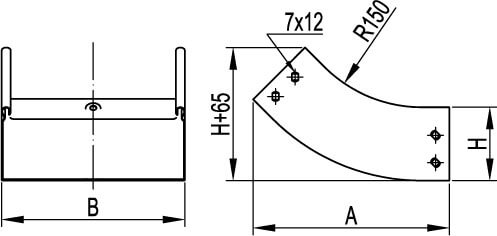

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
