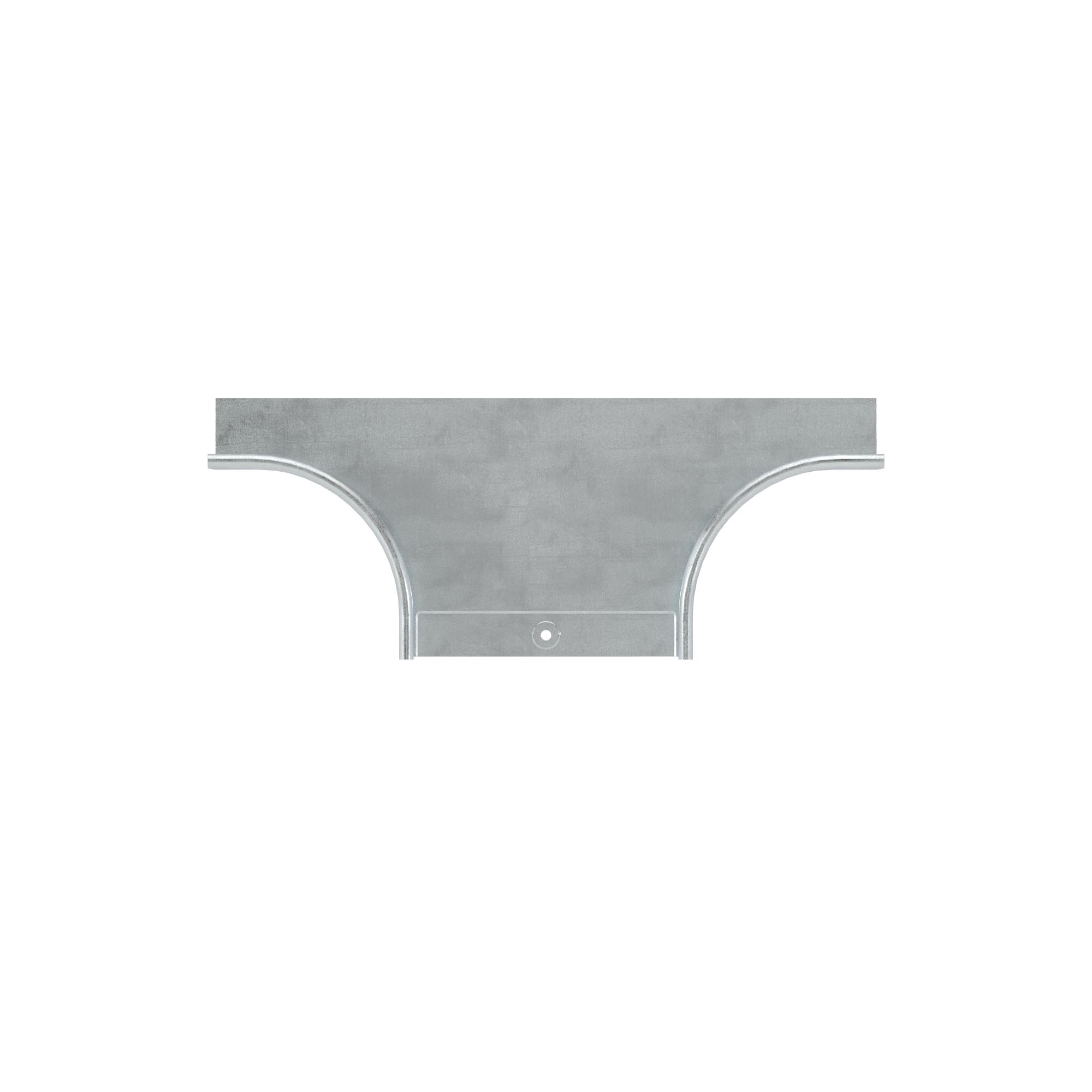

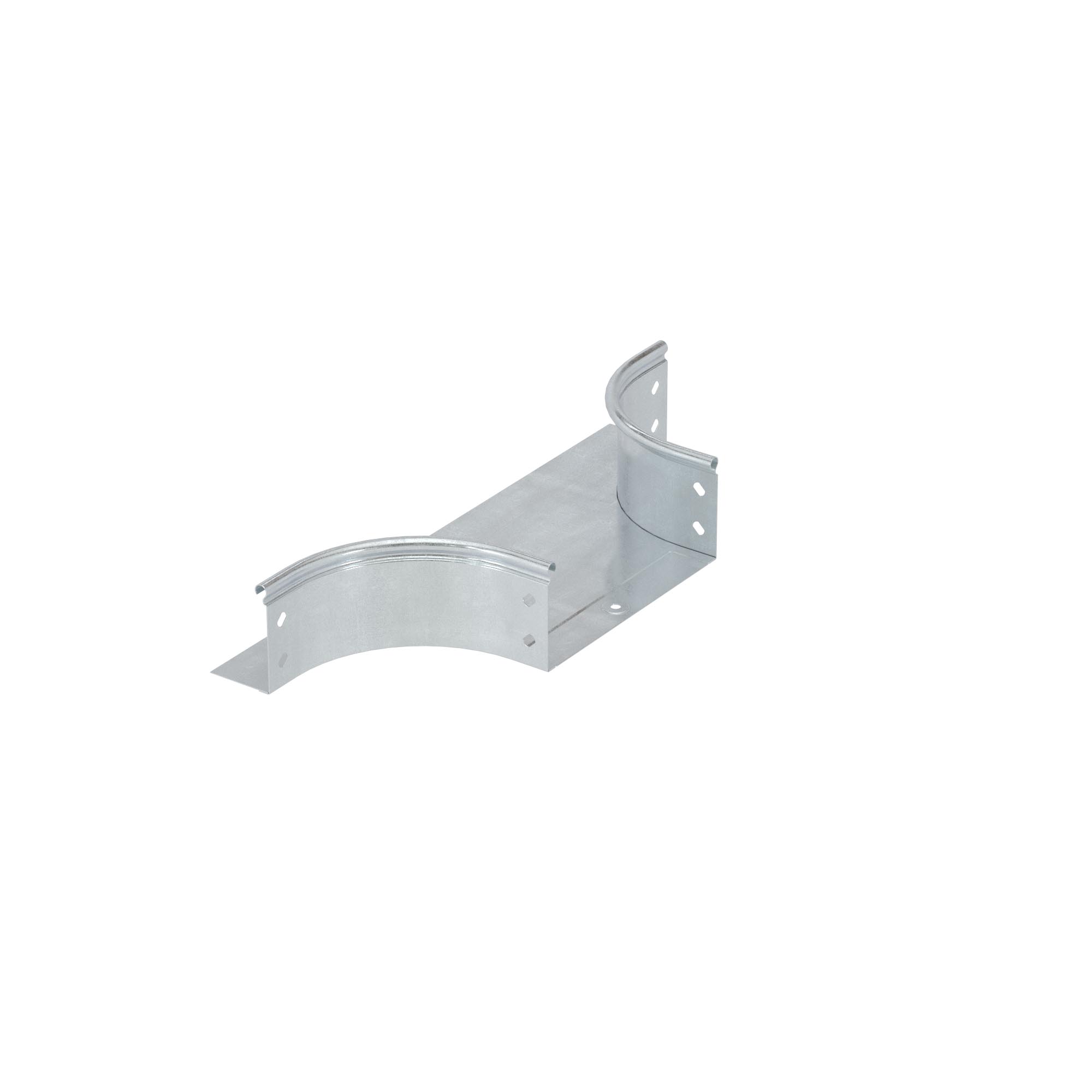

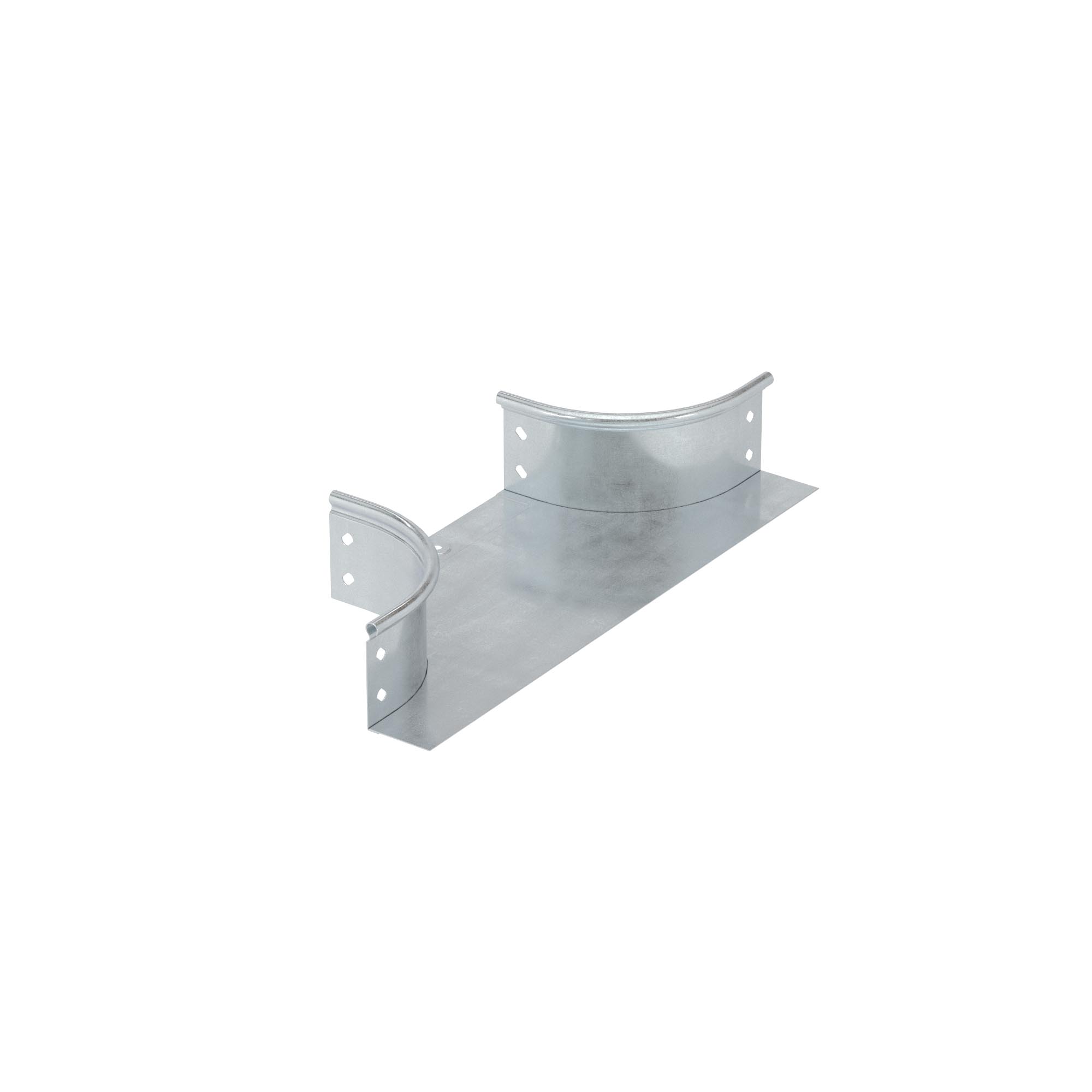

DL T-tapper 80x80 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code:
36249KHDZ
Code:
36249KHDZ
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Hot-dip galvanized |
| Material quality | Steel |
| Material | Steel |

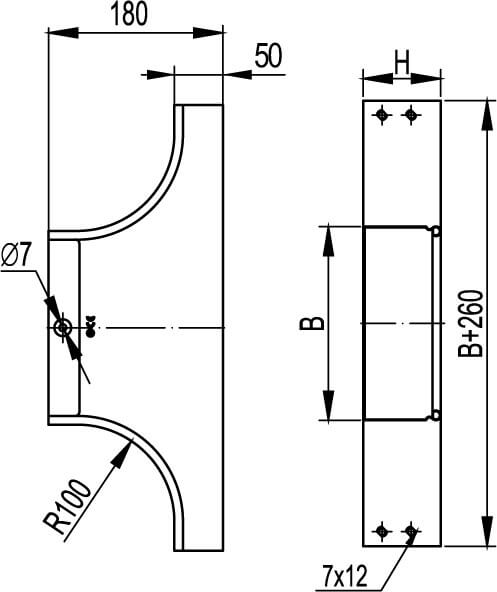

| Inner radius, mm | 100 |
| Cable tray branch width, mm | 80 |
| Cable tray height, mm | 80 |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | Universal branch |
| Height | 80 mm |
| Thickness | 0.8 mm |
| Material | Hot-dip galvanized |
| Width | 80 mm |
