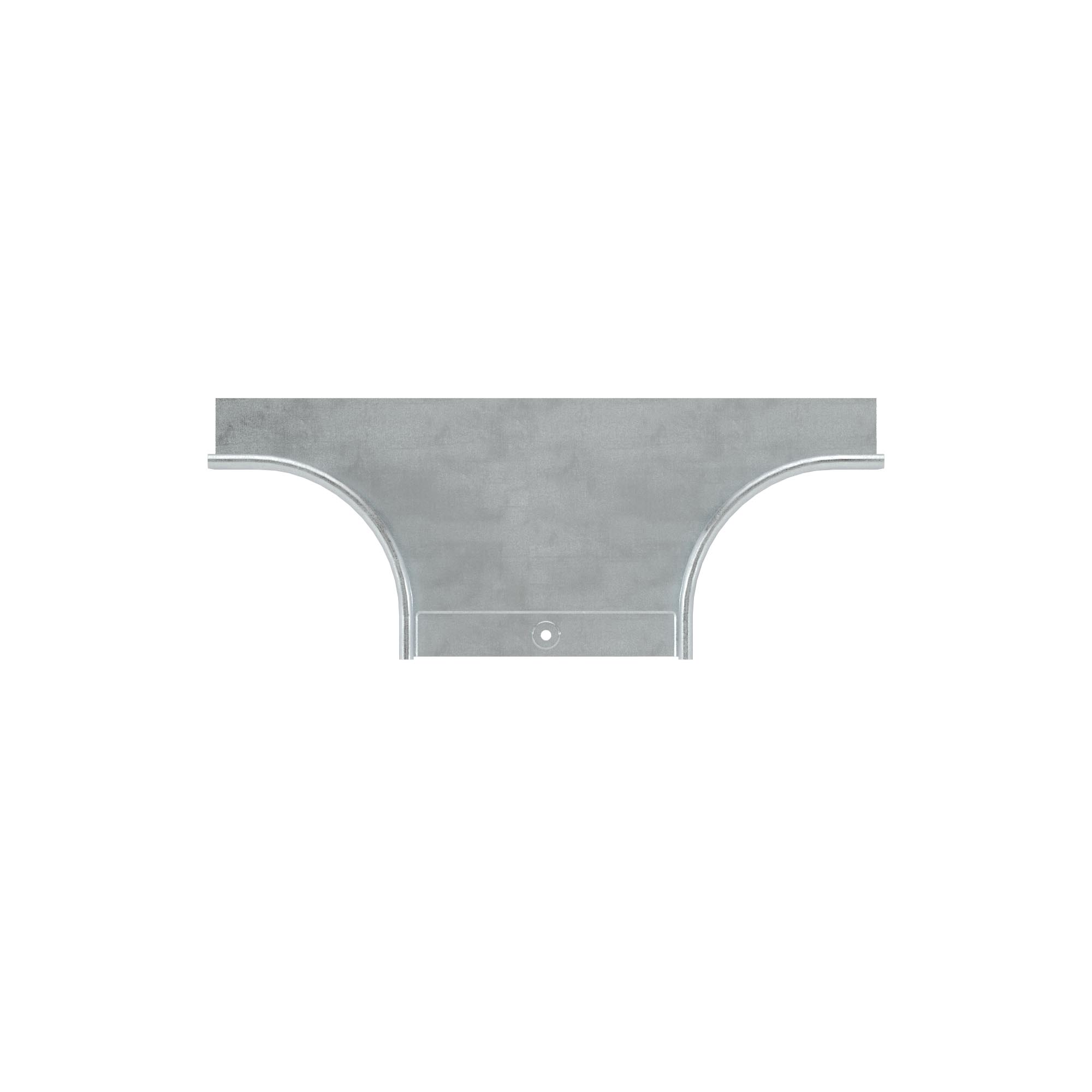

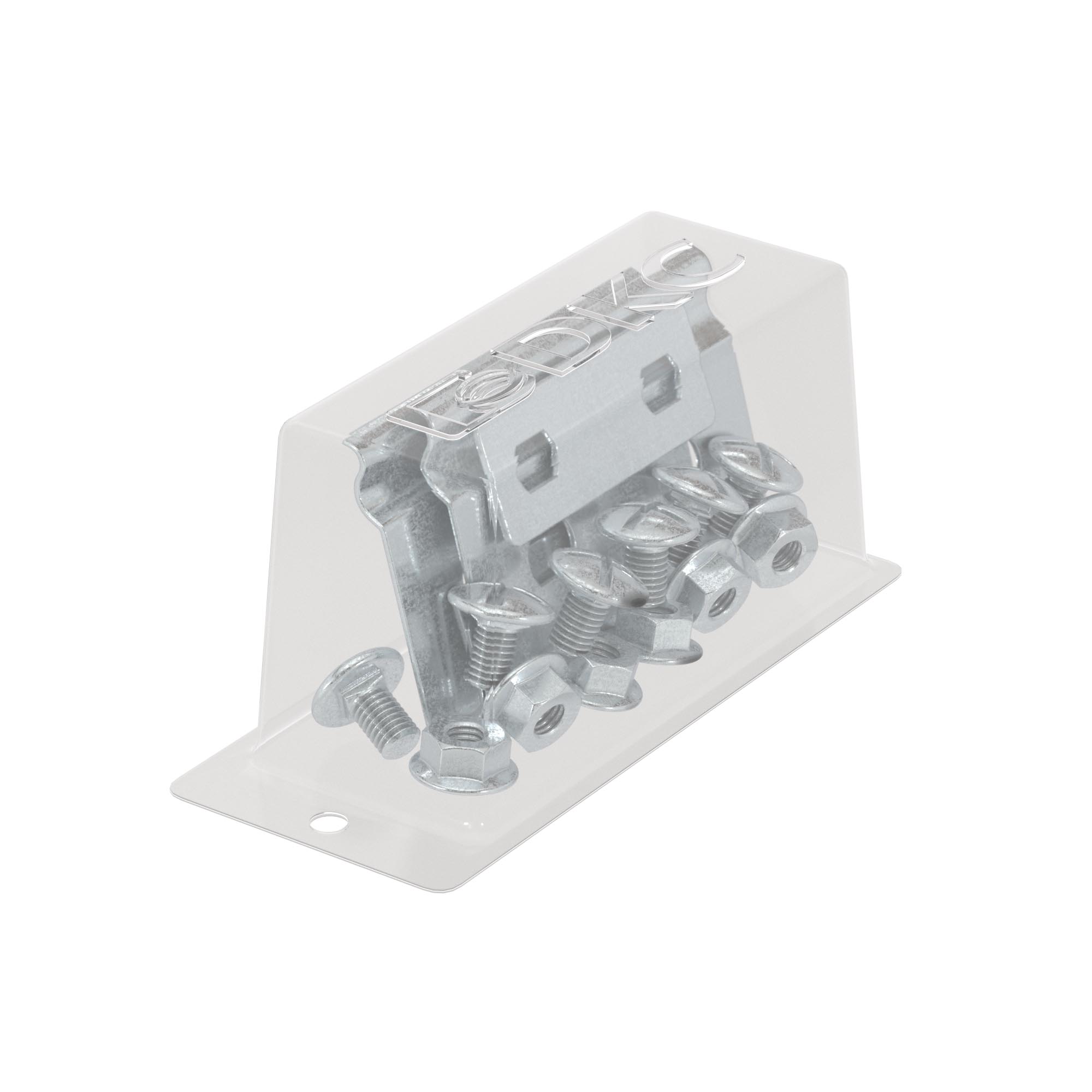

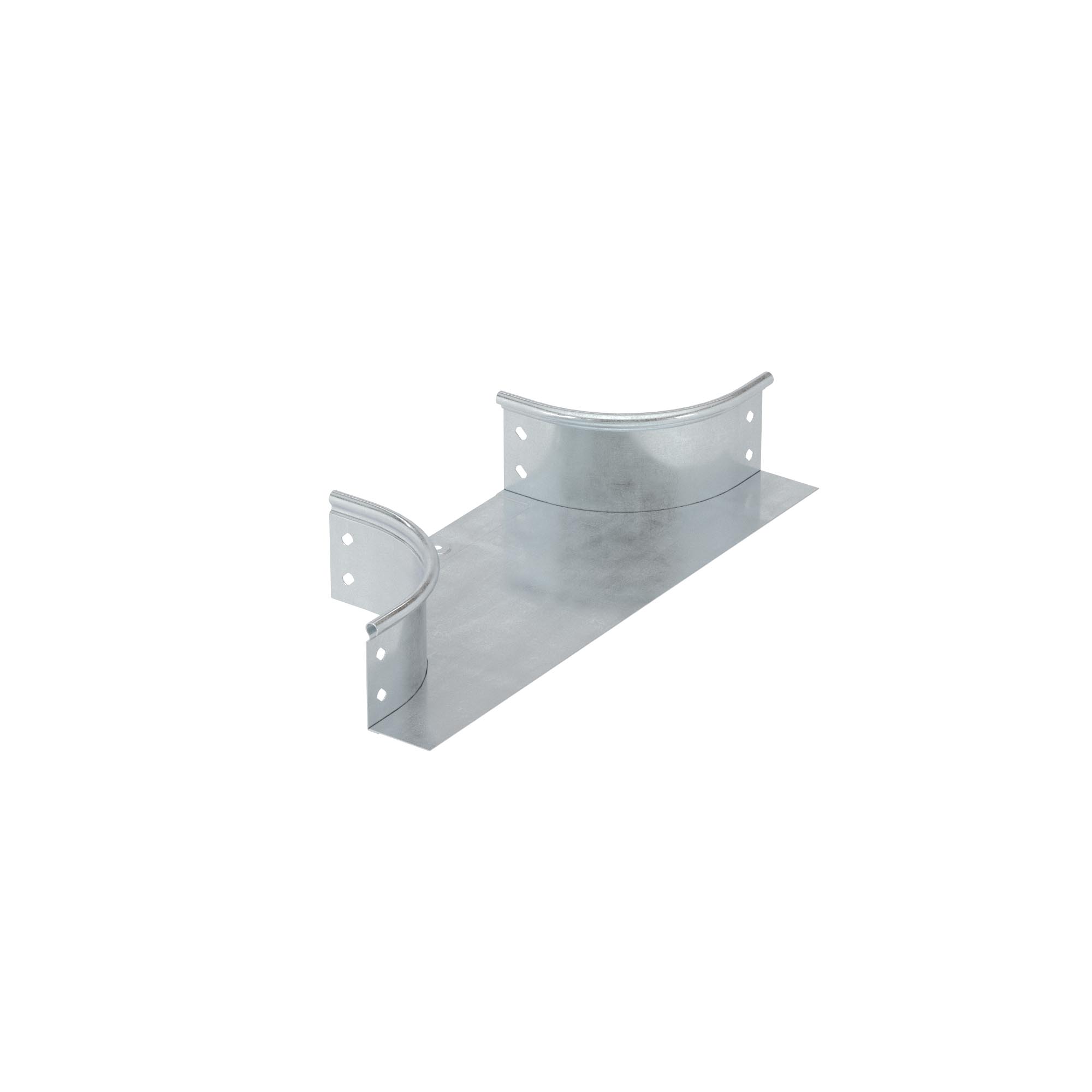

DL T-tapper 50x50 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36233KHDZ

DL T-tapper 50x50 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36233KHDZ
Colour Light grey
Model Included connector
Surface protection Hot-dip galvanized
Material quality Steel
Material Steel
Inner radius, mm 100
Cable tray branch width, mm 50
Cable tray height, mm 50
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories Universal branch
Width 50 mm
Height 50 mm
Material Hot-dip galvanized
The accompanying goods

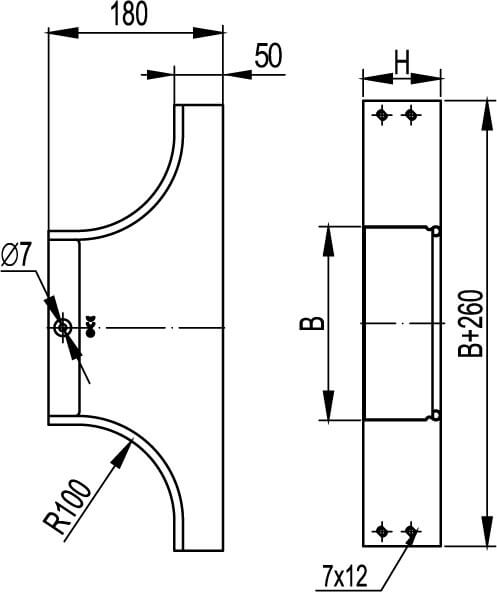

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
