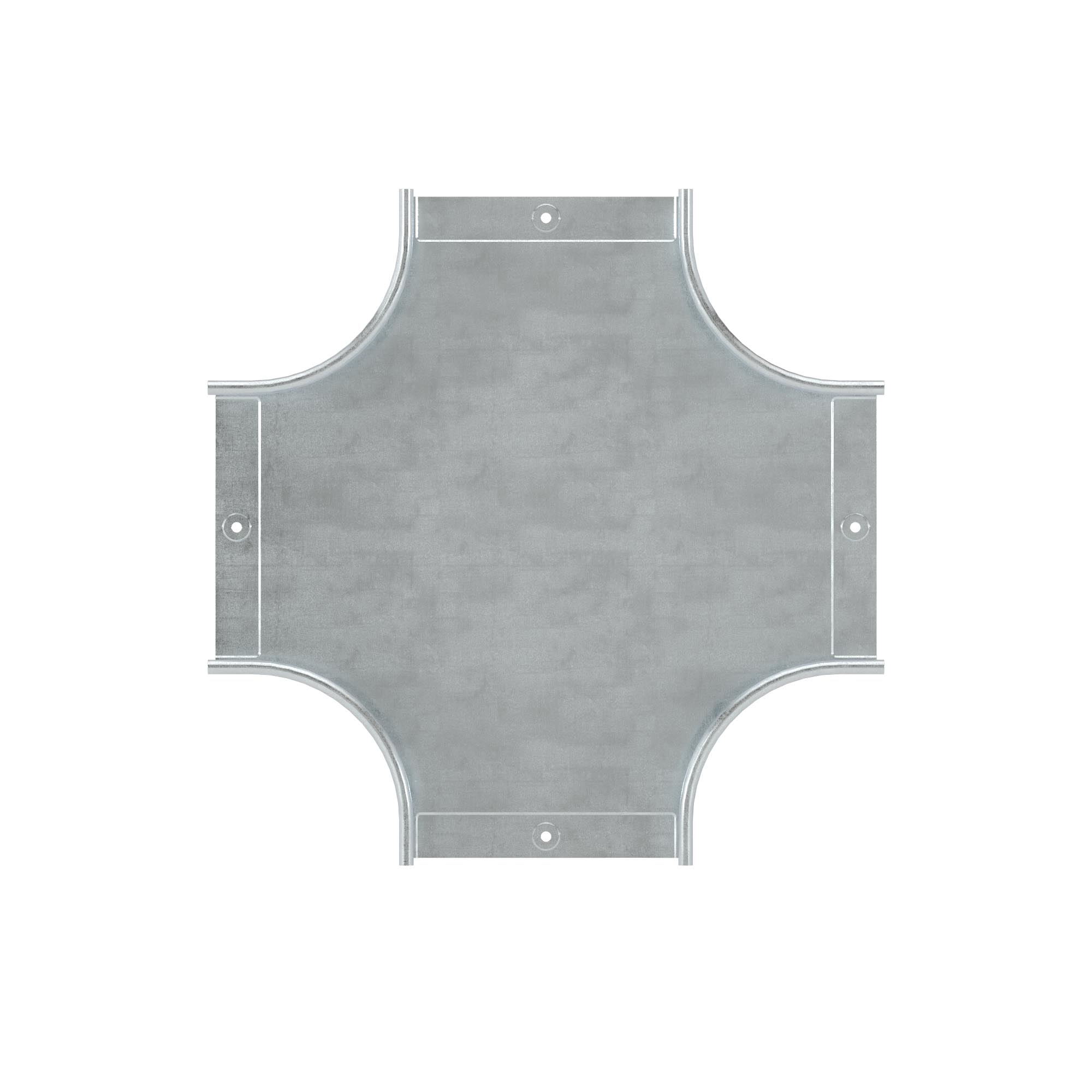

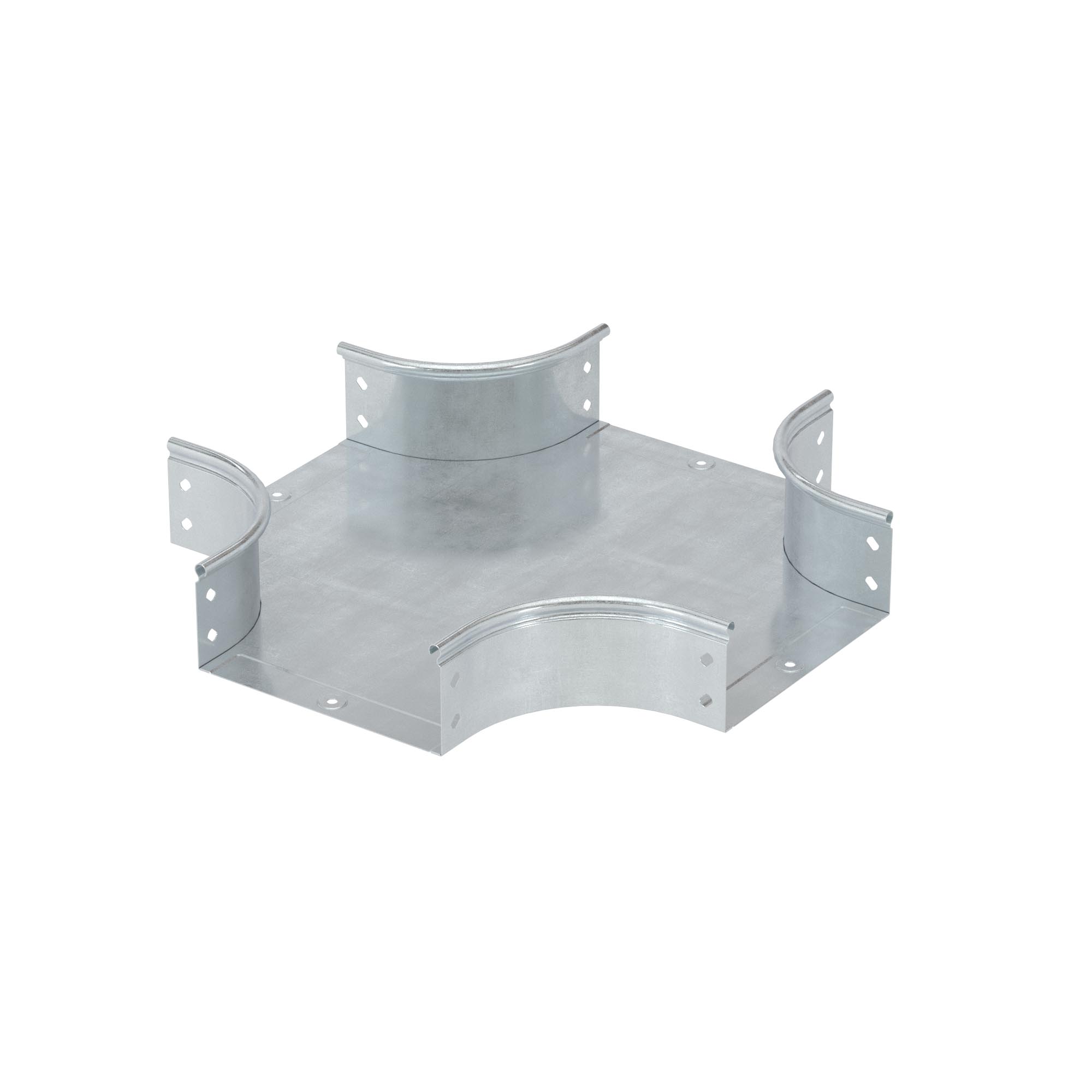

DPX X-tapper 100x100 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36221KHDZ

DPX X-tapper 100x100 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36221KHDZ
Colour Light grey
Model Included connector
Surface protection Hot-dip galvanized
Material Steel
Inner radius, mm 100
Cable tray width, mm 100
Cable tray height, mm 100
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Material quality Steel
Product type System accessories
Type of accessories Horizontal cross
Height 100 mm
Thickness 0.8 mm
Material Hot-dip galvanized
Width 100 mm
The accompanying goods

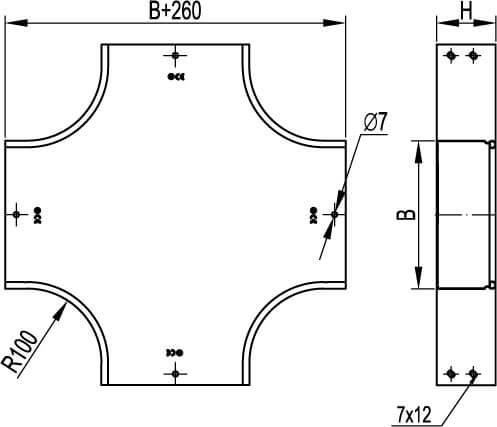

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
