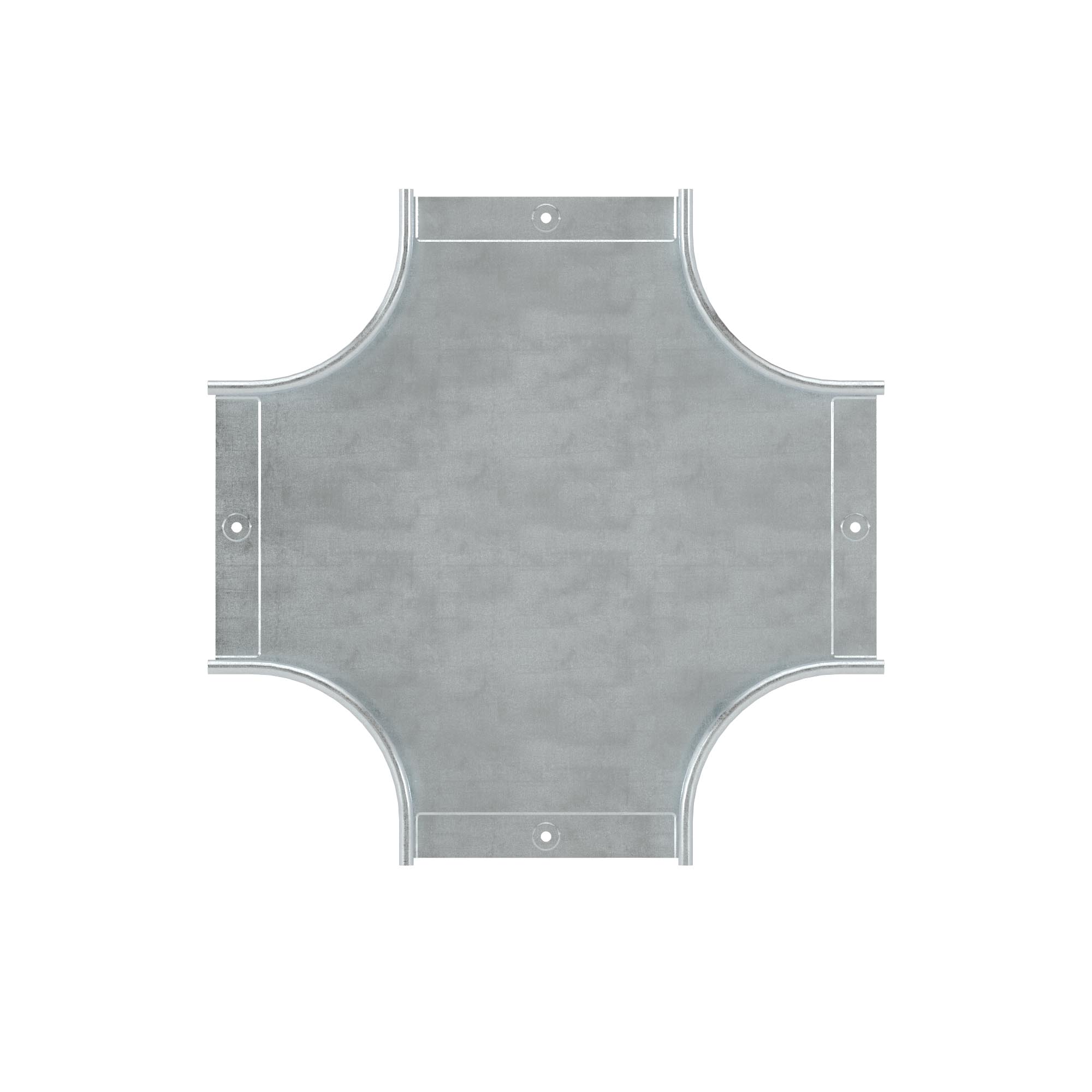

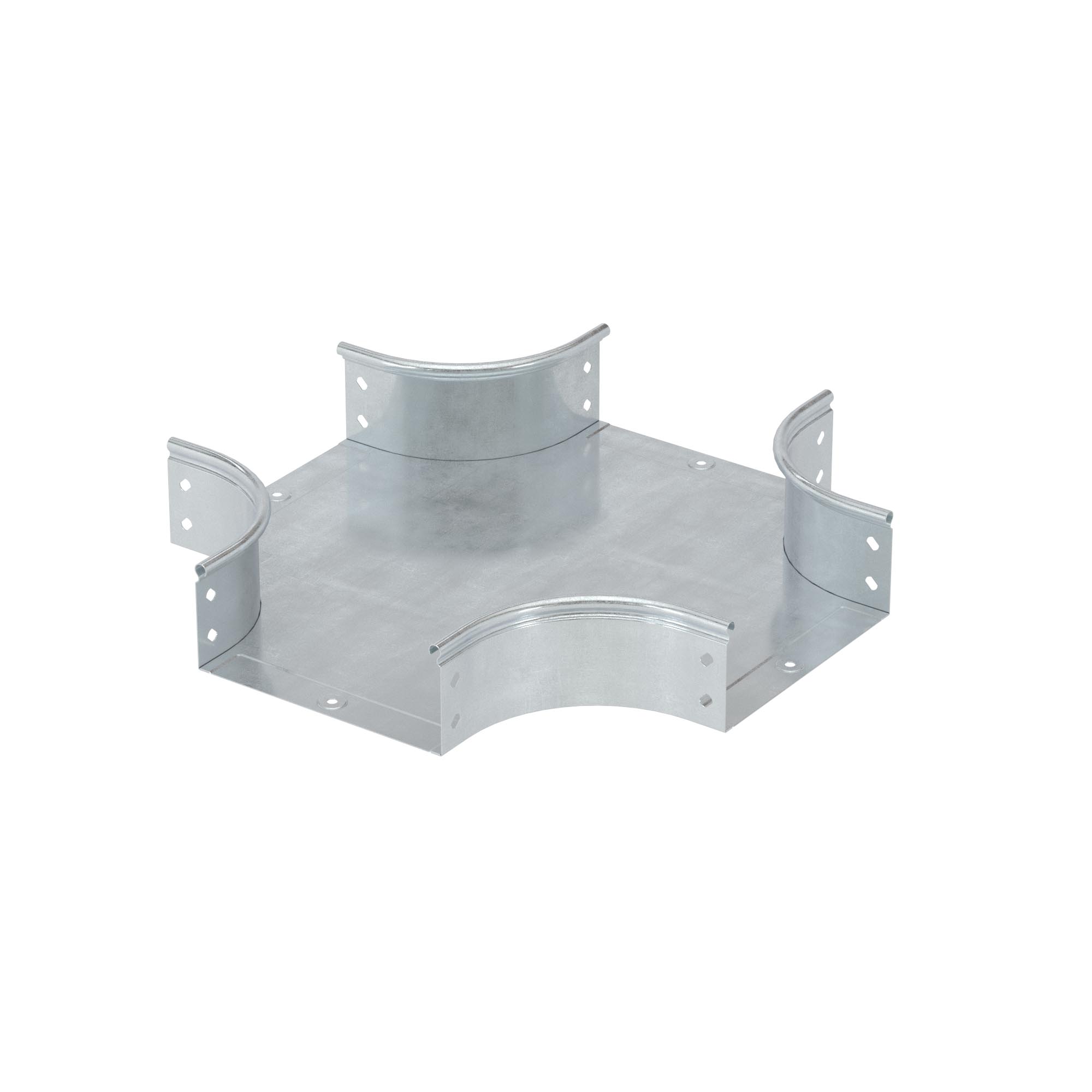

DPX X-tapper 50x50 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code: 36180KHDZ
DPX X-tapper 50x50 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code: 36180KHDZ
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Hot-dip galvanized |
| Material | Steel |
| Inner radius, mm | 100 |
| Cable tray width, mm | 50 |
| Cable tray height, mm | 50 |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Material quality | Steel |
| Product type | System accessories |
| Type of accessories | Horizontal cross |
| Height | 50 mm |
| Thickness | 0.8 mm |
| Material | Hot-dip galvanized |
| Width | 50 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37301HDZL | Joint Plate h. 50 HDZL | 8 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 4 pcs |
| CM010610HDZ | Square neck bolt М6х10 , hot dip galvanized | 24 pcs |
| CM100600HDZ | Hexagon nut with serrate flange М6, hot dip galvanized | 24 pcs |
The accompanying goods

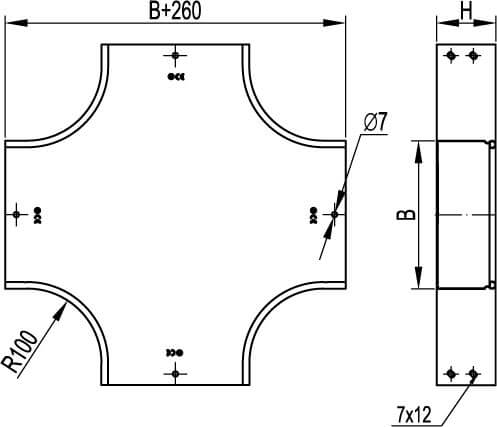

Drawings
