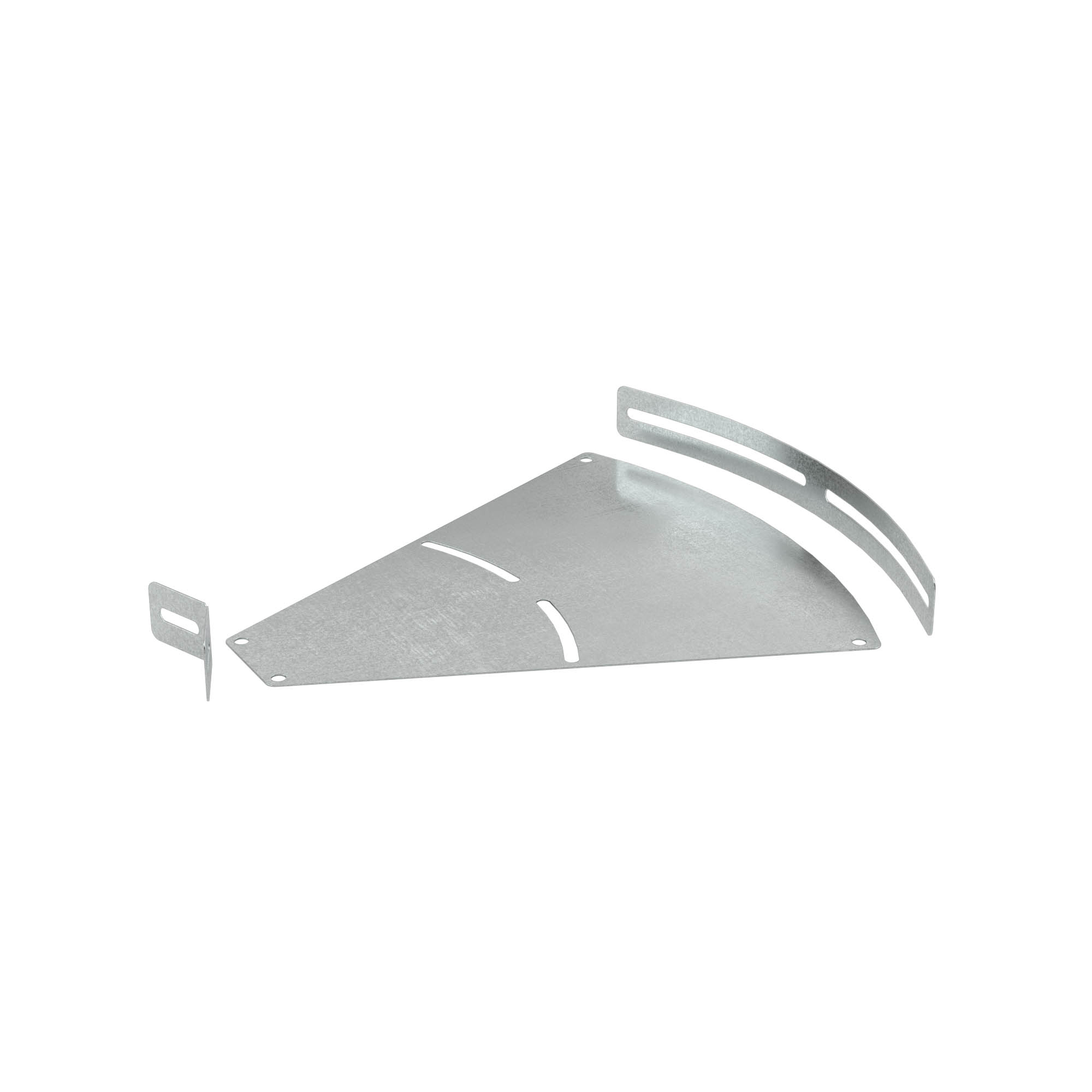

Variable Angle Elbow 0-45° 150x35, included with fasteners
Code: SVS3515K
Variable Angle Elbow 0-45° 150x35, included with fasteners
Code: SVS3515K
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Sendzimir galvanized |
| Material thickness, mm | 0.8 |
| Deflection (angle) | Adjustable |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Cable tray width, mm | 150 |
| Cable tray height, mm | 35 |
| Change of direction | Horizontal |
| NATO-mounting holes | Yes |
| Suitable for circuit integrity | Yes |
| Bend model | Smooth bend |
| Product type | System accessories |
| Type of accessories | Horizontal variable angle angle CPO 0-45 |
| Height | 35 mm |
| Thickness | 0.8 mm |
| Material | Pre-galvanized |
| Width | 150 mm |

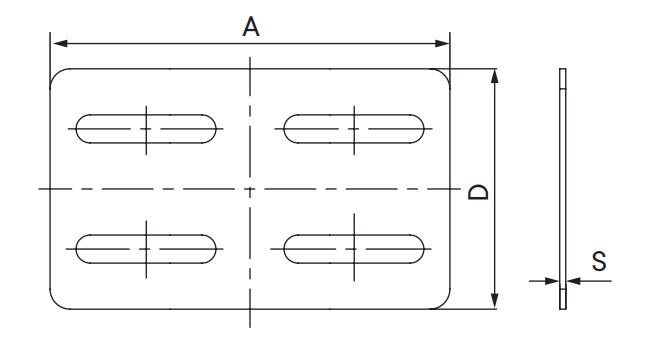

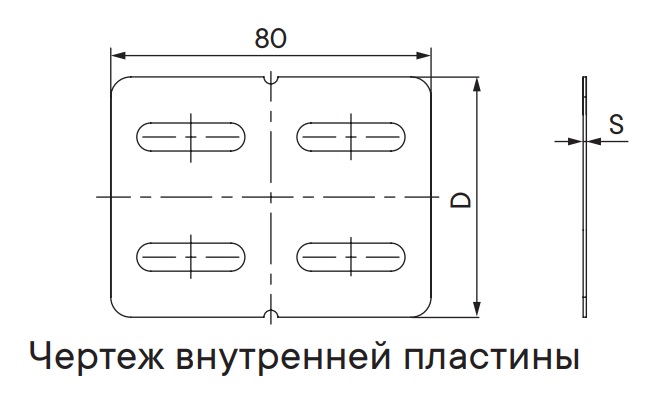

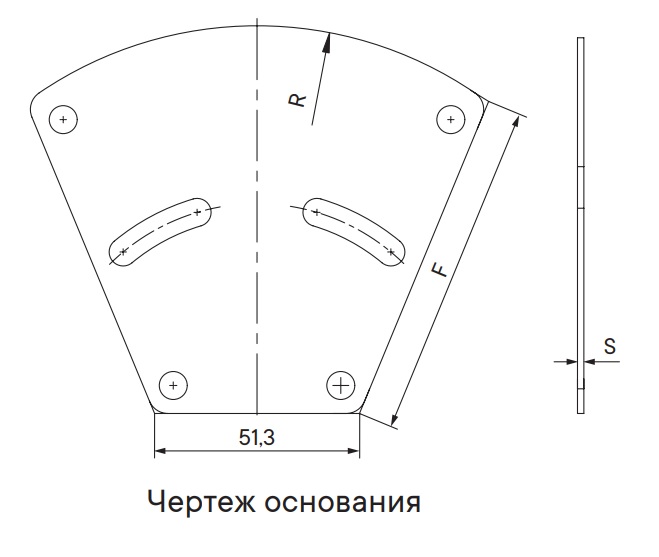

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
Certificates
| Name | Document |
|---|---|
