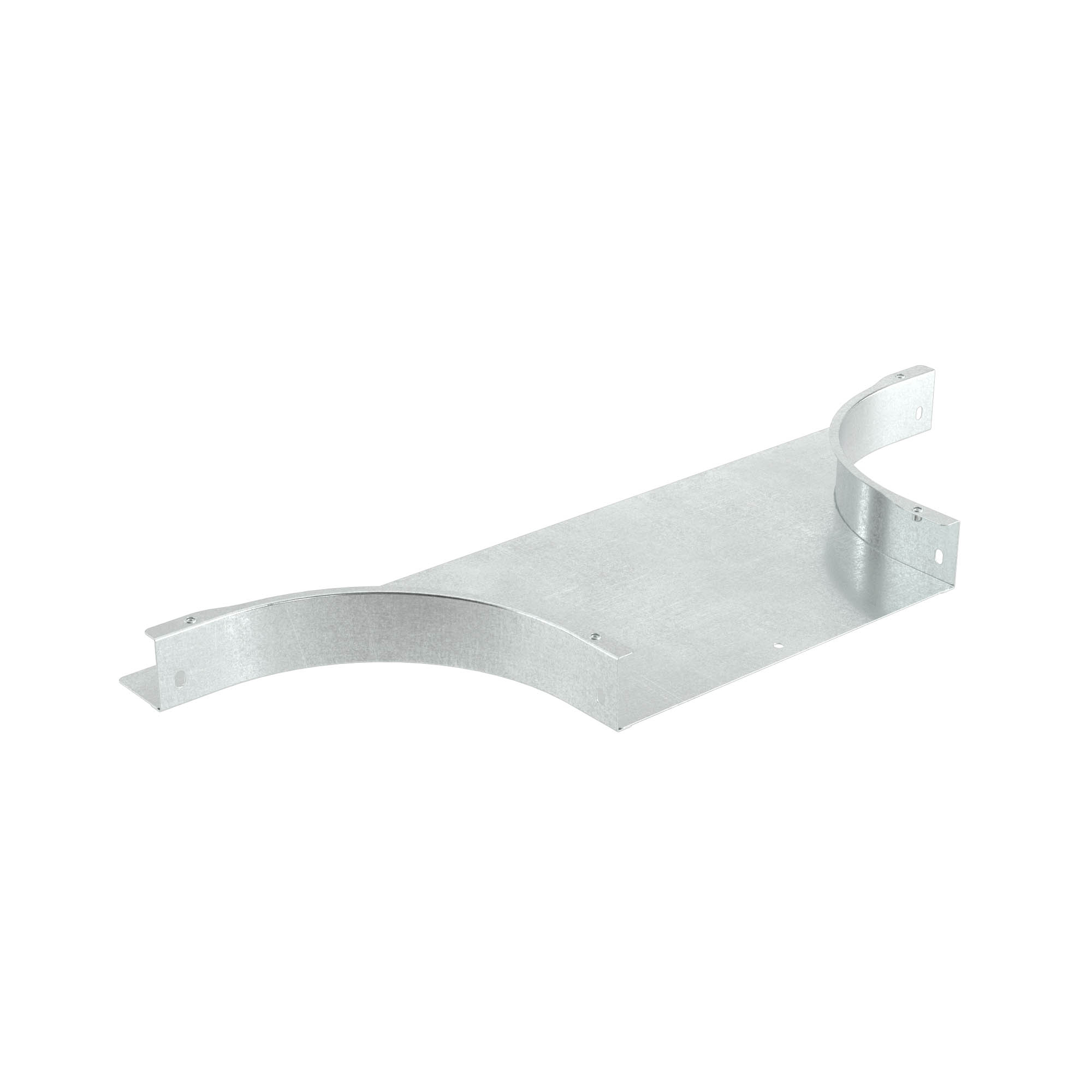

DL T-tapper 100x35,included with fasteners (joint plates GTO, screws, nuts)
Code: SFS3510K
DL T-tapper 100x35,included with fasteners (joint plates GTO, screws, nuts)
Code: SFS3510K
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Material | Steel |
| Inner radius, mm | 150 |
| Cable tray branch width, mm | 100 |
| Cable tray height, mm | 35 |
| NATO-mounting holes | No |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | Universal branch |
| Height | 35 mm |
| Thickness | 0.8 mm |
| Material | Pre-galvanized |
| Width | 100 mm |

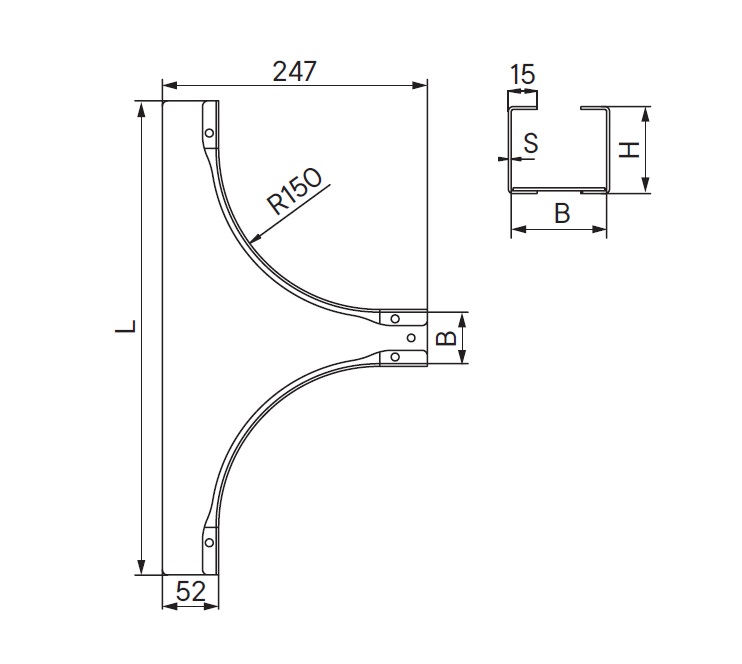

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
