CPO 90 horizontal angle 150x35 included with fasteners (joint plates GTO, screws, nuts)
Code: SCS3515K
CPO 90 horizontal angle 150x35 included with fasteners (joint plates GTO, screws, nuts)
Code: SCS3515K
Colour | Light grey |
Model | Included connector |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 0.8 |
Deflection (angle) | 45° |
Side wall perforation | Yes |
Material quality | Steel |
Material | Steel |
Mounting perforation in bottom | Yes |
Cable tray width, mm | 150 |
Cable tray height, mm | 35 |
Change of direction | Horizontal |
NATO-mounting holes | Yes |
Suitable for circuit integrity | Yes |
Bend model | Smooth bend |
Product type | System accessories |
Type of accessories | 45º Horizontal bend |
Height | 35 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 150 mm |

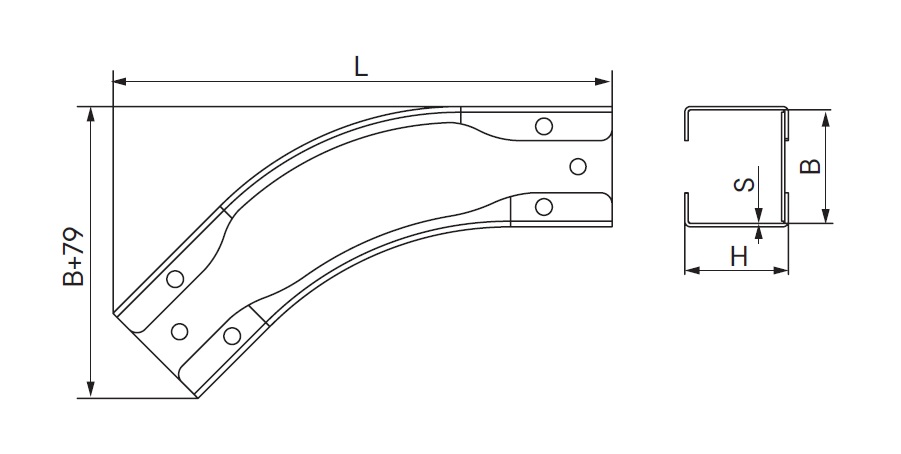

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
