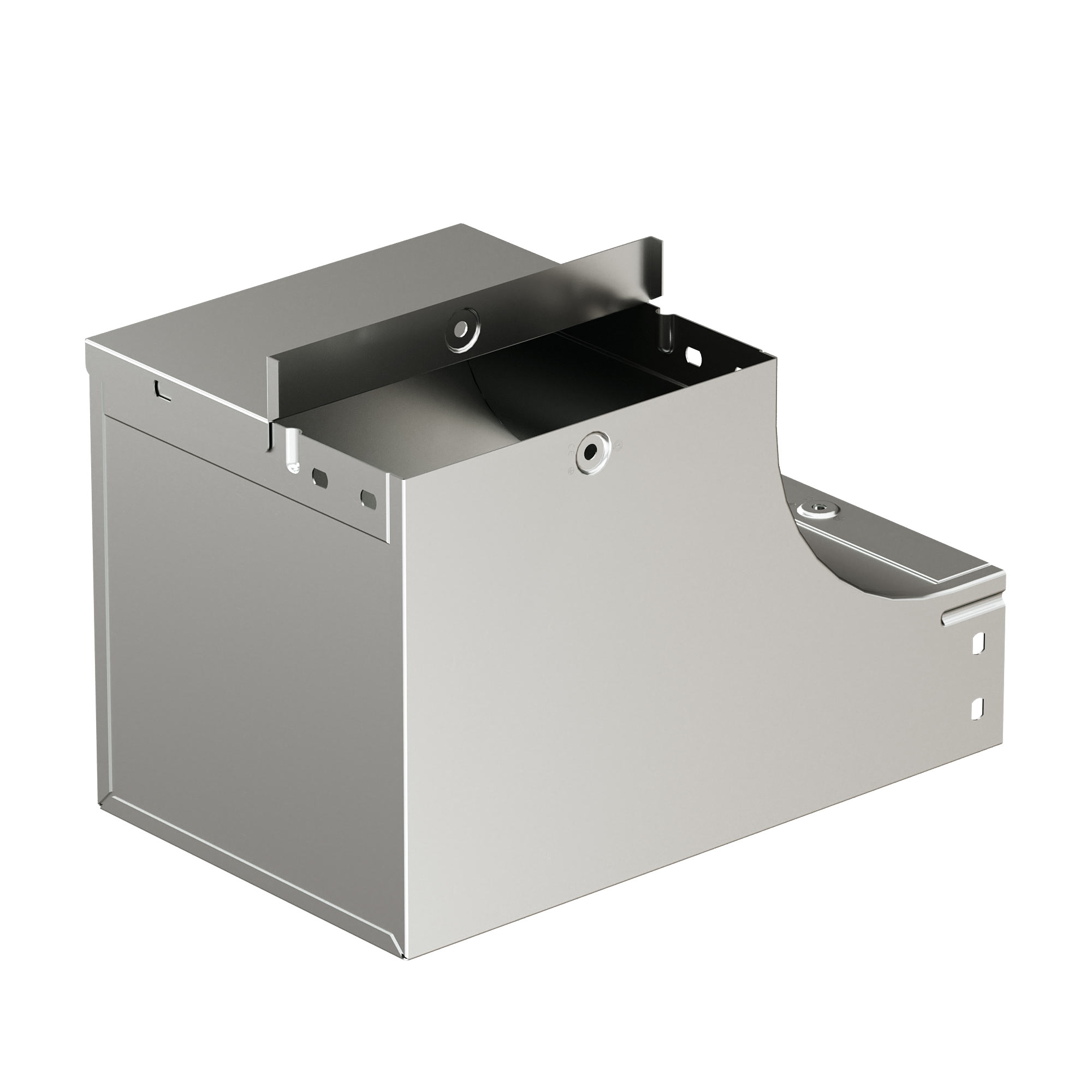

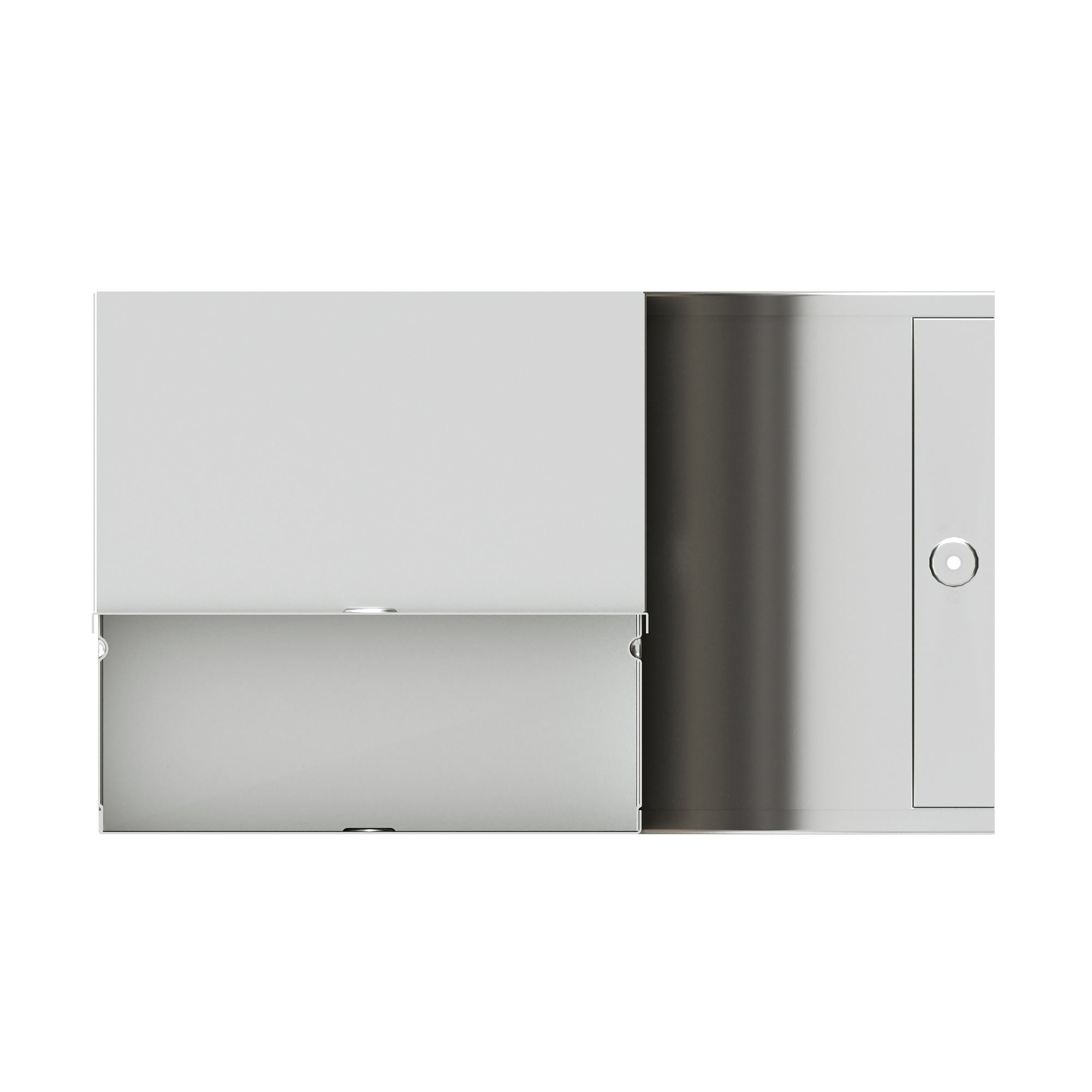

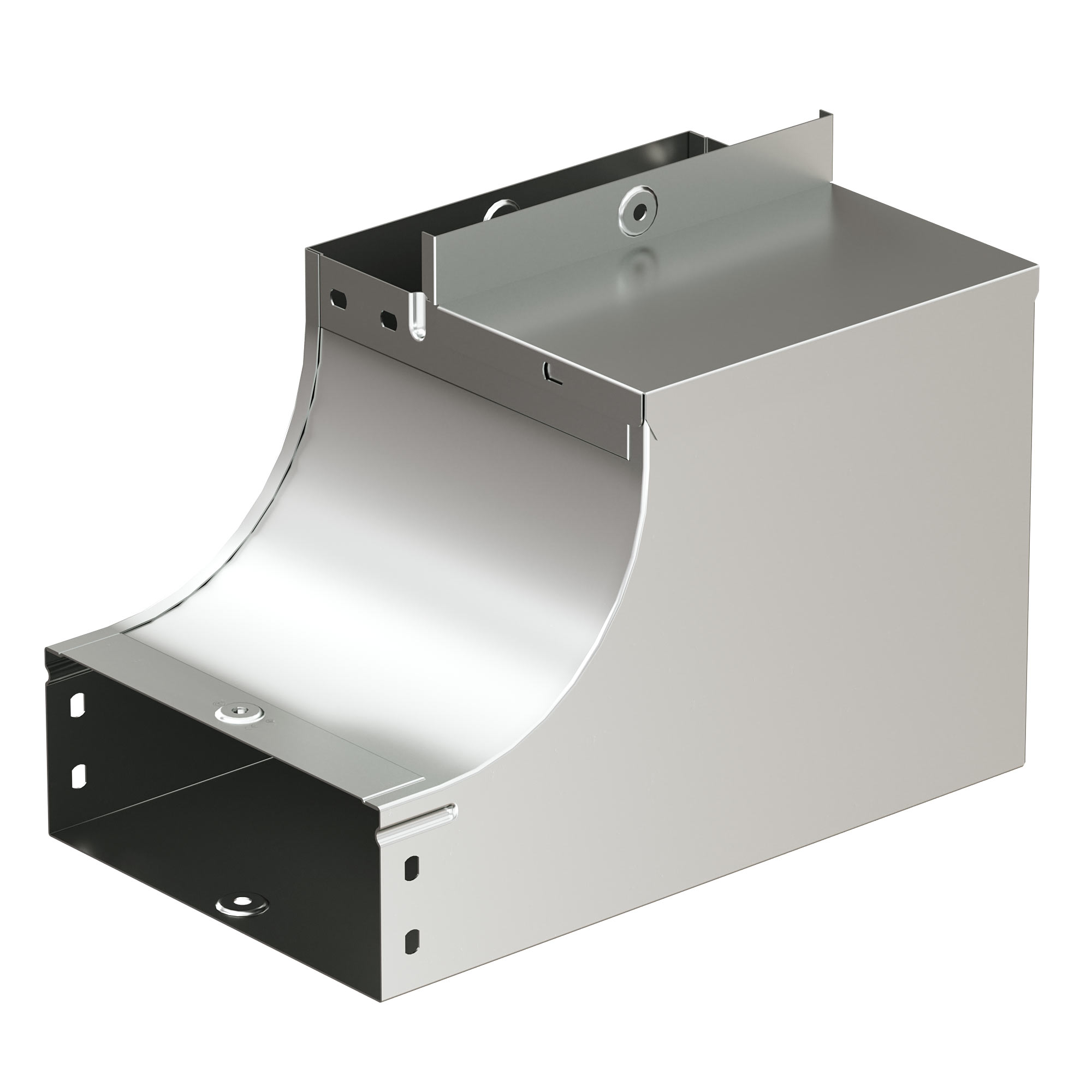

Internal vertical angle, 200x50, included with fasteners (joint plates GTO, screws, nuts)
Code: 37594K
Internal vertical angle, 200x50, included with fasteners (joint plates GTO, screws, nuts)
Code: 37594K
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Sendzimir galvanized |
| Material thickness, mm | 0.8 |
| Deflection (angle) | 90° |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Inner radius, mm | 80 |
| Cable tray width, mm | 200 |
| Cable tray height, mm | 50 |
| Change of direction | Vertically rising |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | System accessories |
| Type of accessories | Vertical inner angle, CSSD 90 adapter |
| Height | 50 mm |
| Thickness | 0.8 mm |
| Material | Pre-galvanized |
| Width | 200 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37301 | Joint Plate h. 50 | 4 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
| CM010610 | Square neck bolt М6х10 | 12 pcs |
| CM100600 | Hexagon nut with serrate flange М6 | 12 pcs |

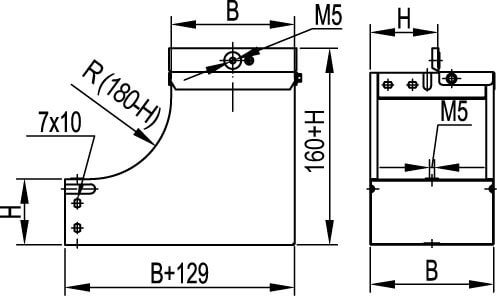

Drawings
