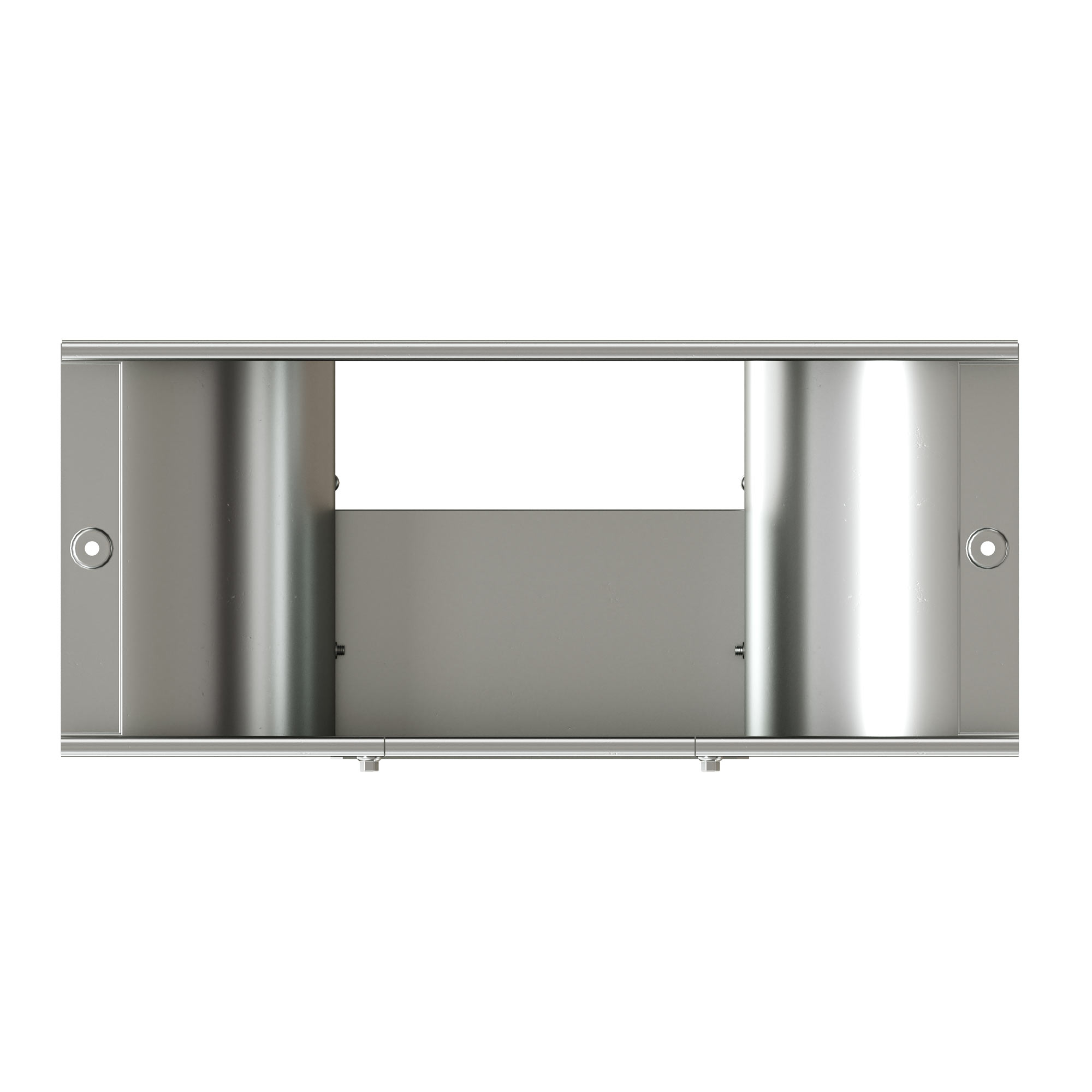

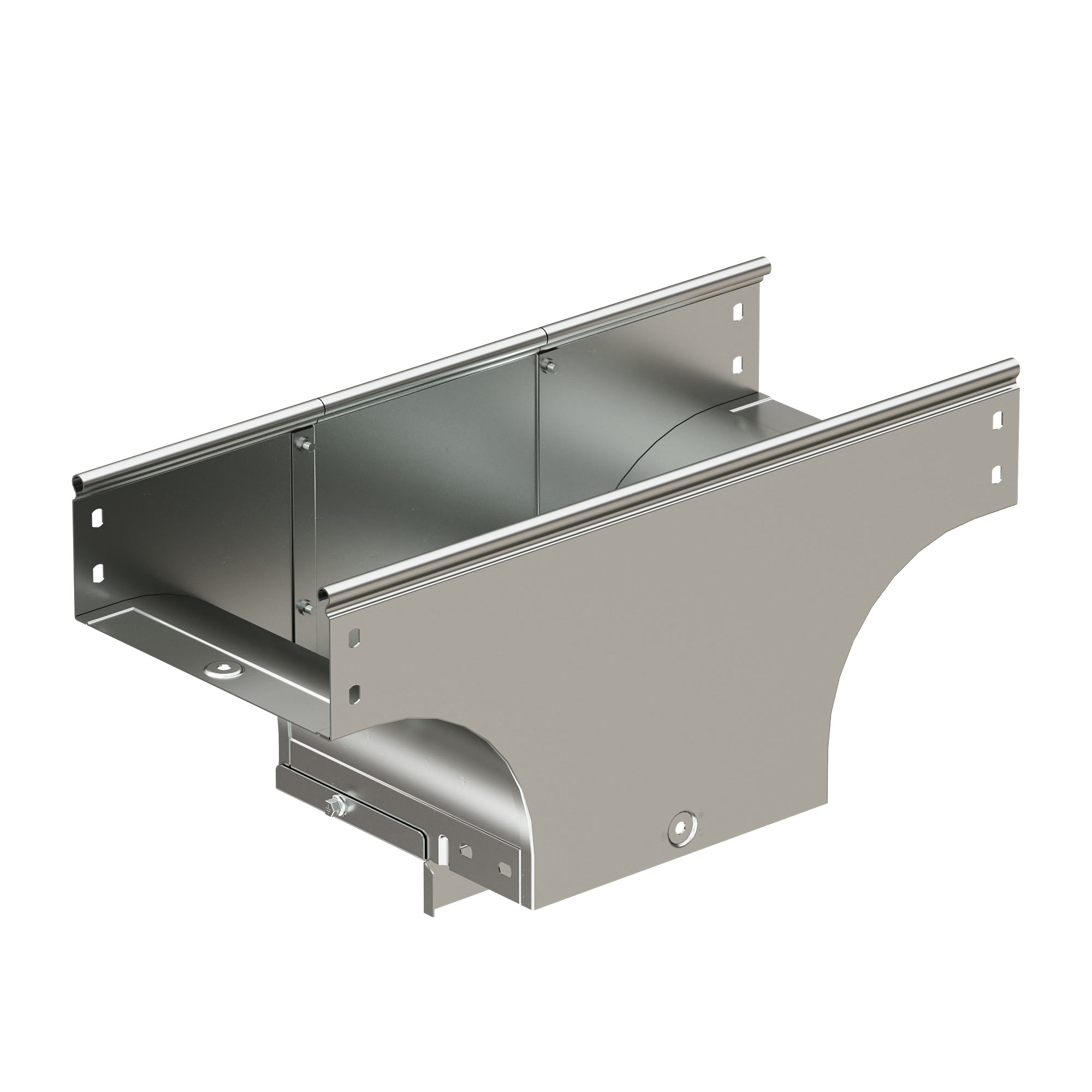

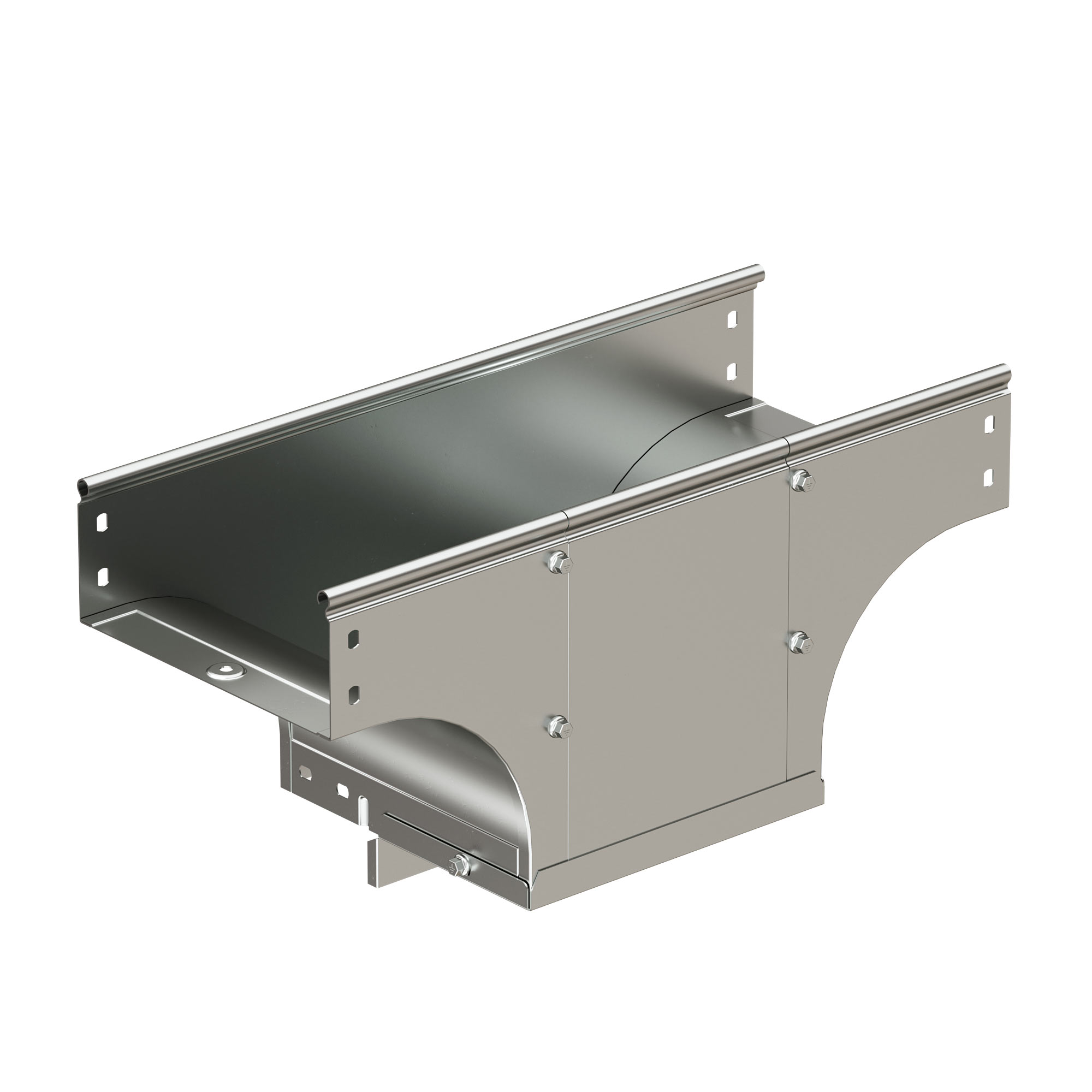

TDS vertical side T-tapper 400x50, included with fasteners (joint plates GTO, screws, nuts)
Code: 37586K
TDS vertical side T-tapper 400x50, included with fasteners (joint plates GTO, screws, nuts)
Code: 37586K
Colour | Light grey |
Height side wall, mm | 50 |
Material | Steel |
Tray width in horizontal direction, mm | 400 |
Tray width in vertical direction, mm | 400 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Surface protection | Sendzimir galvanized |
Material quality | Steel |
Product type | System accessories |
Type of accessories | T-branch vertical TDS |
Height | 50 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 400 mm |
Kit accessory’s structure
Code | Name | Quantity |
37301 | Joint Plate h. 50 | 6 pcs |
37501 | Copper earthing palte for equipotential connection CU | 3 pcs |
CM010610 | Square neck bolt М6х10 | 18 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 18 pcs |

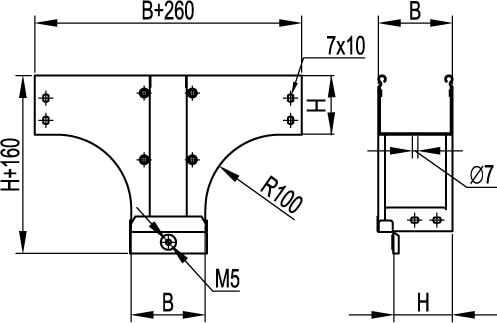

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
