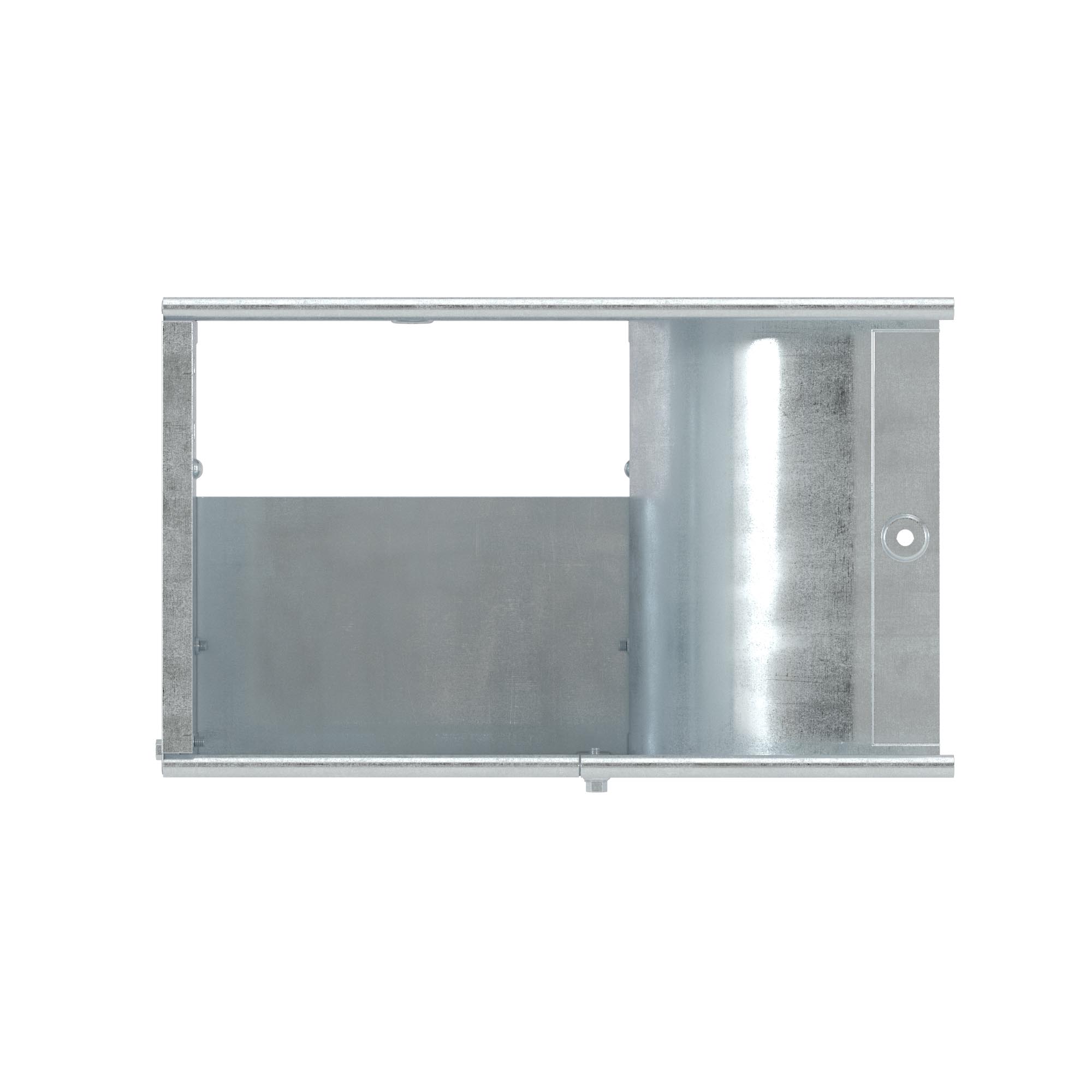

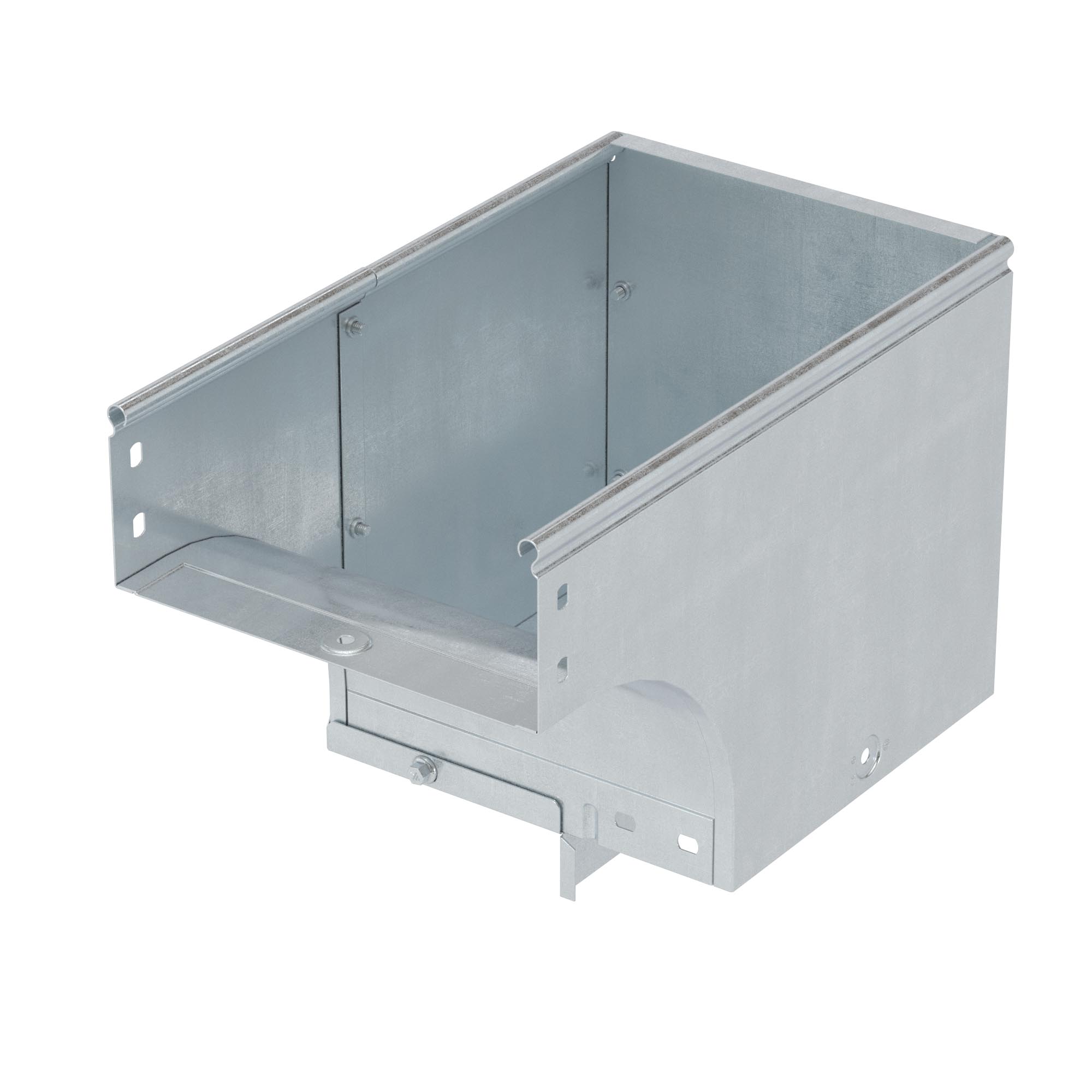

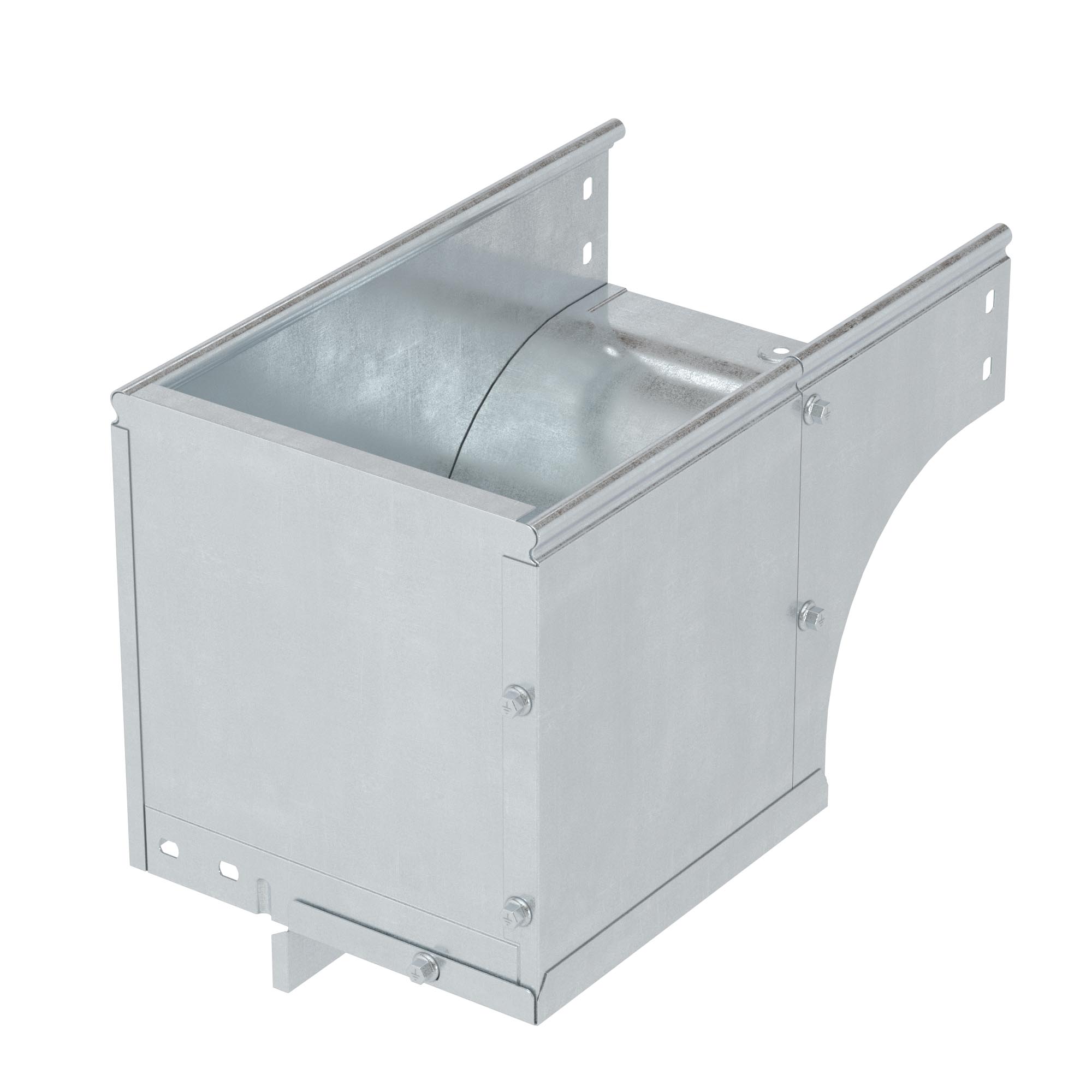

CDSD 90 external vertical angle, 400x50, included with fasteners (joint plates GTO, screws, nuts)

CDSD 90 external vertical angle, 400x50, included with fasteners (joint plates GTO, screws, nuts)

Code: 37506K

To ask a question

ETIM

Colour	Light grey
Model	Without connector
Surface protection	Sendzimir galvanized
Material thickness, mm	0.8
Deflection (angle)	90°
Side wall perforation	No
Material quality	Other
Material	Steel
Mounting perforation in bottom	Yes

Inner radius, mm	130
Cable tray width, mm	400
Cable tray height, mm	50
Change of direction	Vertically declining
NATO-mounting holes	No
Stainless steel, pickled	No
Wide span model	No
Suitable for circuit integrity	No

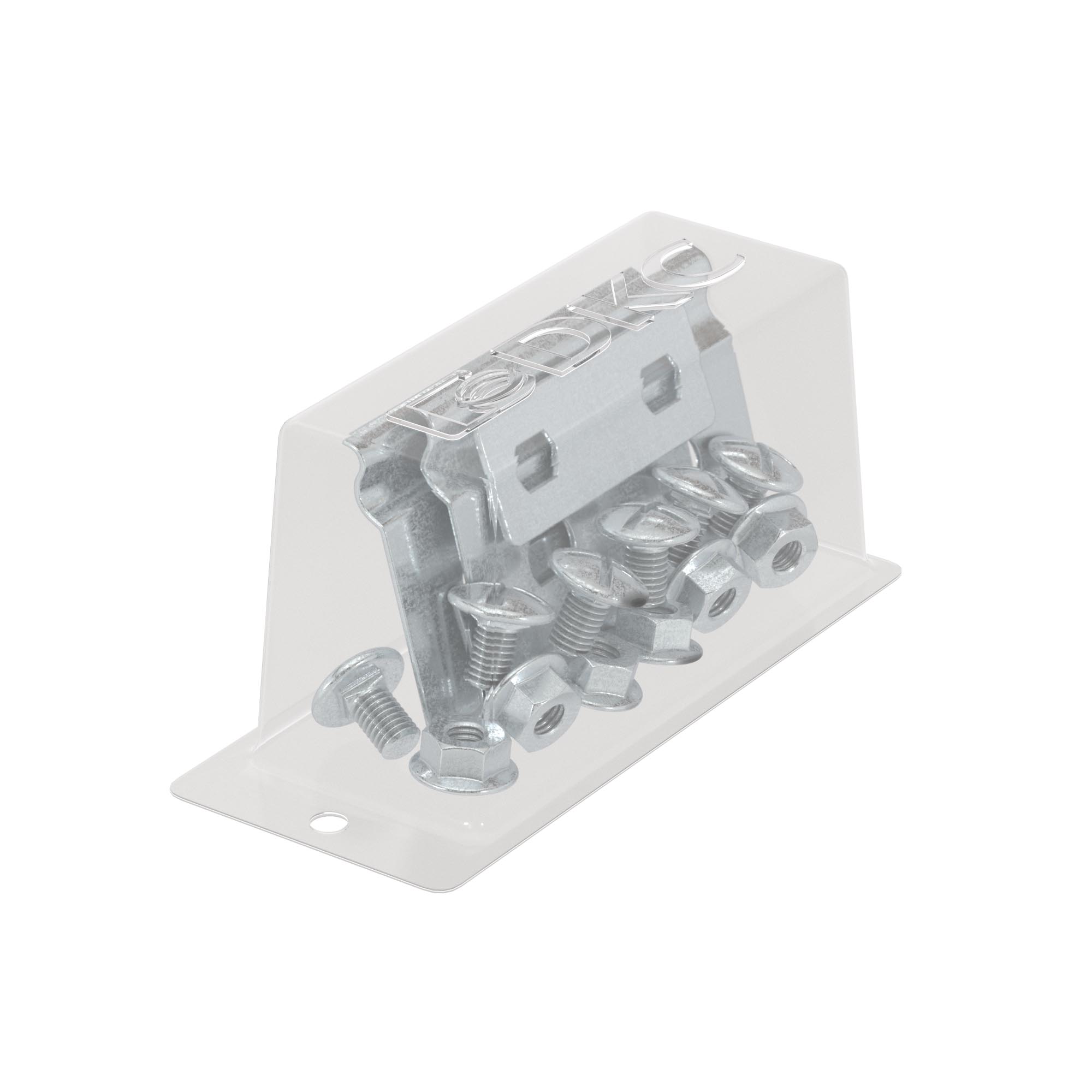

Kit accessory’s structure

Code	Name	Quantity
37301	Joint Plate h. 50	4 pcs
37501	Copper earthing palte for equipotential connection CU	2 pcs
CM010610	Square neck bolt М6х10	12 pcs
CM100600	Hexagon nut with serrate flange М6	12 pcs

Analogs

CD 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts)

Code: 36786K

CD 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 36786KHDZ

CD 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 36786KZL

CDSD 90 external vertical angle, 400x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 37506KHDZ

CDSD 90 external vertical angle, 400x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37506KZL

CDV 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts)

Code: 37576K

CDV 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 37576KHDZ

CDV 90 external vertical angle 400x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37576KZL

CDSS 90 external vertical angle, 400x50, included with fasteners (joint plates GTO, screws, nuts)

Code: 37655K

CDSS 90 external vertical angle, 400x50, included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method

Code: 37655KHDZ

CDSS 90 external vertical angle, 400x50, included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating

Code: 37655KZL

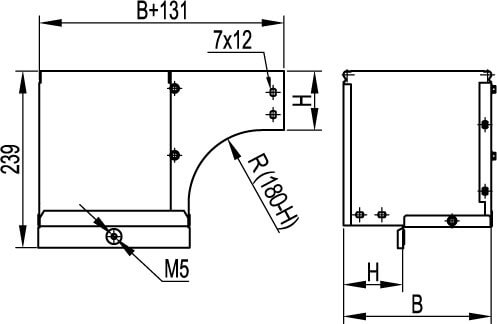

Drawings

Seria	Name	STEP	SAT
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"	ZIP 17.15 MB
S5 Combitech - metal sheet trays	The system of metal trays of the "S5 Combitech"		RAR 11.99 MB

Certificates

Name	Document
Certificate of conformity to GOST R for metal sheet trays	PDF 435.66 kB
Exemption Letter for metal trays and its accessories	PDF 3.87 MB
All types of cable trays, ducts, welded and modular cases -Russian Maritime Register of Shipping_1	PDF 1.42 MB
Certificate of conformity to seismic impact resistance for system of cable trays "S5 Combitech" and fastening system "M5 Combitech"	PDF 907.27 kB
Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC, Electrocable Kolchuginsky Zavod and Zavod Energokabel	PDF 4.85 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines of the DKC and "SPKB Techno"	PDF 4.93 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of the DKC and "Rybinsk cable" for TRM 0004-2014	PDF 4.69 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_1	PDF 8.35 MB
Fire-resistant barriers_Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and OOO “Uglichcable” for TRM 0017-2017_2	PDF 12.31 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC and OJSC "Electrocable. Kolchugino Plant "on TRM 0005-2018	PDF 18.51 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC and "Concord" for TRM 0016-2017	PDF 11.34 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines of DKC and "Rybinskelectrocable" for TRM 0006-2015	PDF 11.88 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, Sevkabel, Speckabel for TRM 0015-2017	PDF 11.35 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 on fire-resistant cable lines DKC, "Energokabel", "Electrocable. Kolchuginsky Zavod on the TRM 0015-2017	PDF 4.86 MB
Fire-resistant barriers _Certificate of conformity to GOST R 53316-2009 for fire-resistant cable lines DKC, "Technocable" for TRM 0010-2015	PDF 5.01 MB
Fire-resistant barriers _Certificate of conformity FZ-123 on fire-resistant cable lines of DKC and "Expert-Cable"	PDF 13.54 MB
Certificate of conformity of GOST R 53316-2009 for fire resistant cable lines for fire protection systems such as "Lyudinovokabel - DKC"	PDF 5.93 MB
Certificate of conformity to GOST 30247.0-94, TRM 0001-2012 for the Fire resistant cable support constructions	PDF 2.97 MB
Certificate of conformity to fire safety to GOST R 53316-2009 for the Fire resistant cable support construction of DKC, OOO Kabel’niy zavod "ALUR", OOO "REK"	PDF 4.50 MB
Certificate of conformity to GOSR R 53316-2009 for fire-resistant cable lines of DKC and "Paritet"	PDF 3.06 MB
Fire safety certificate for fireproof cable penetrations (IET 150 GOST R 53310-2009)	PDF 715.70 kB
