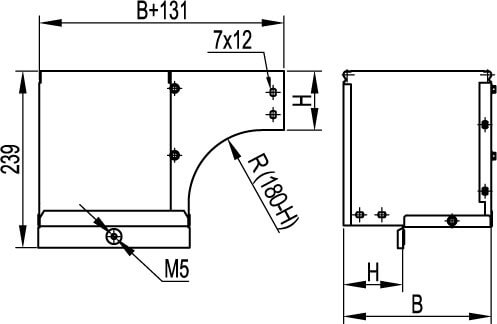

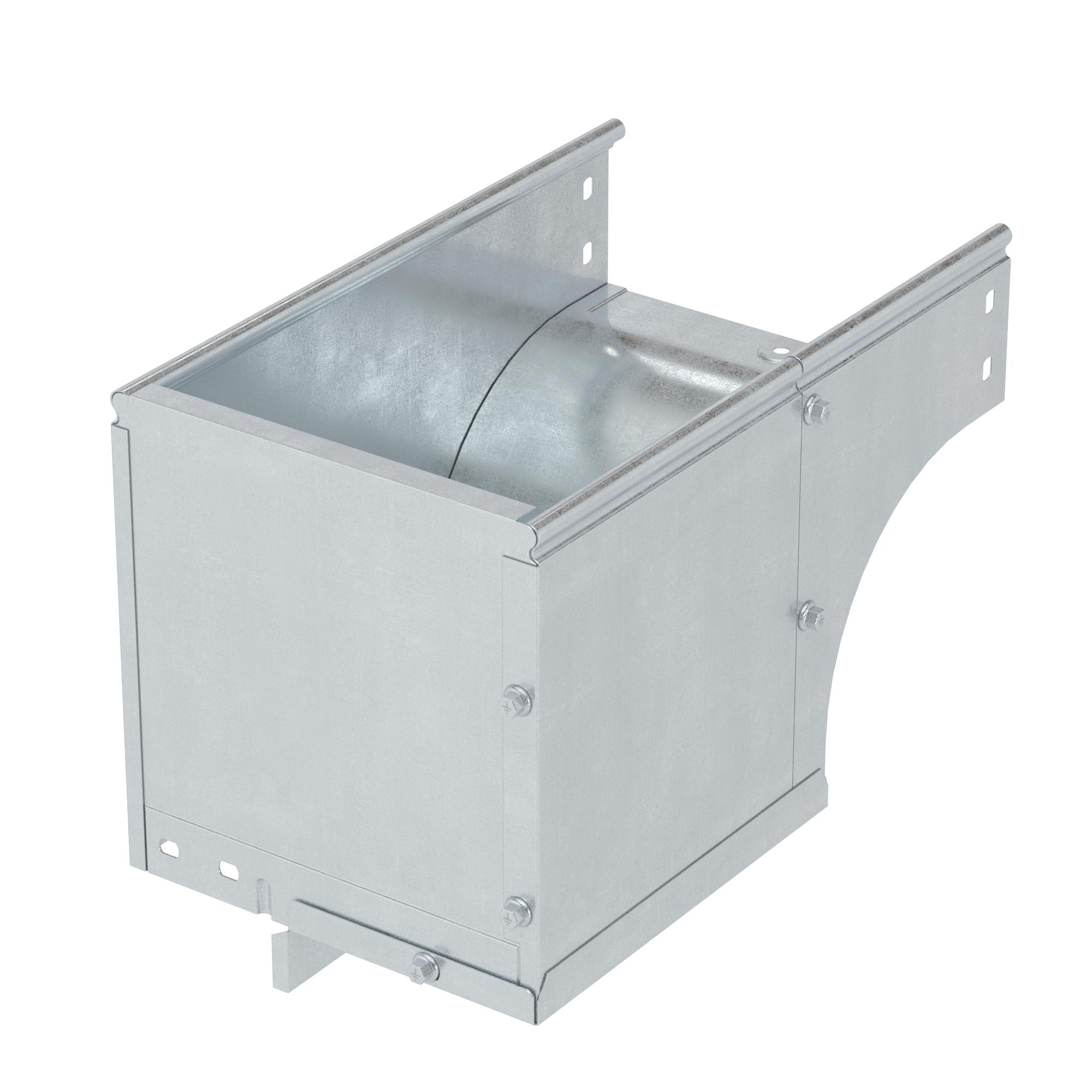

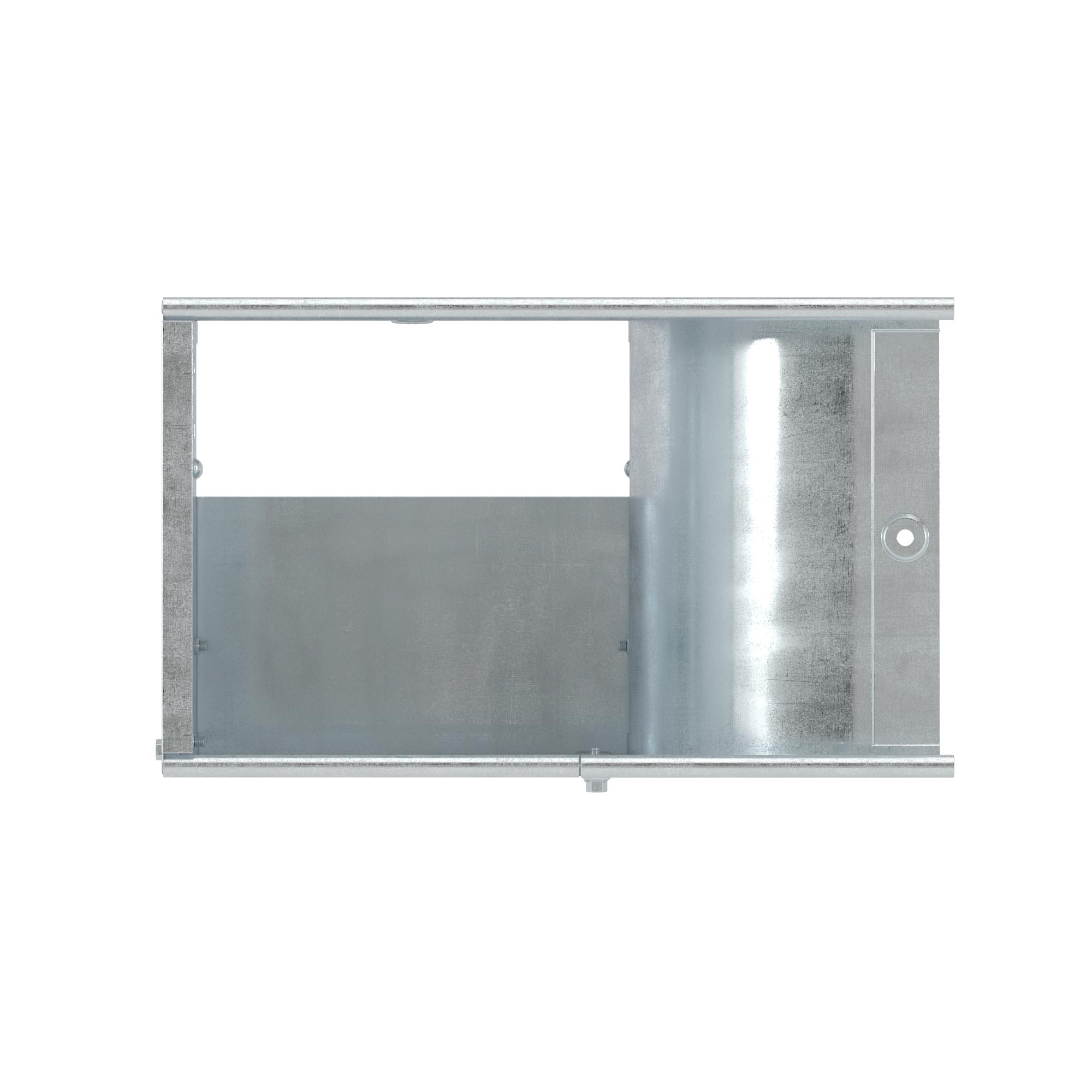

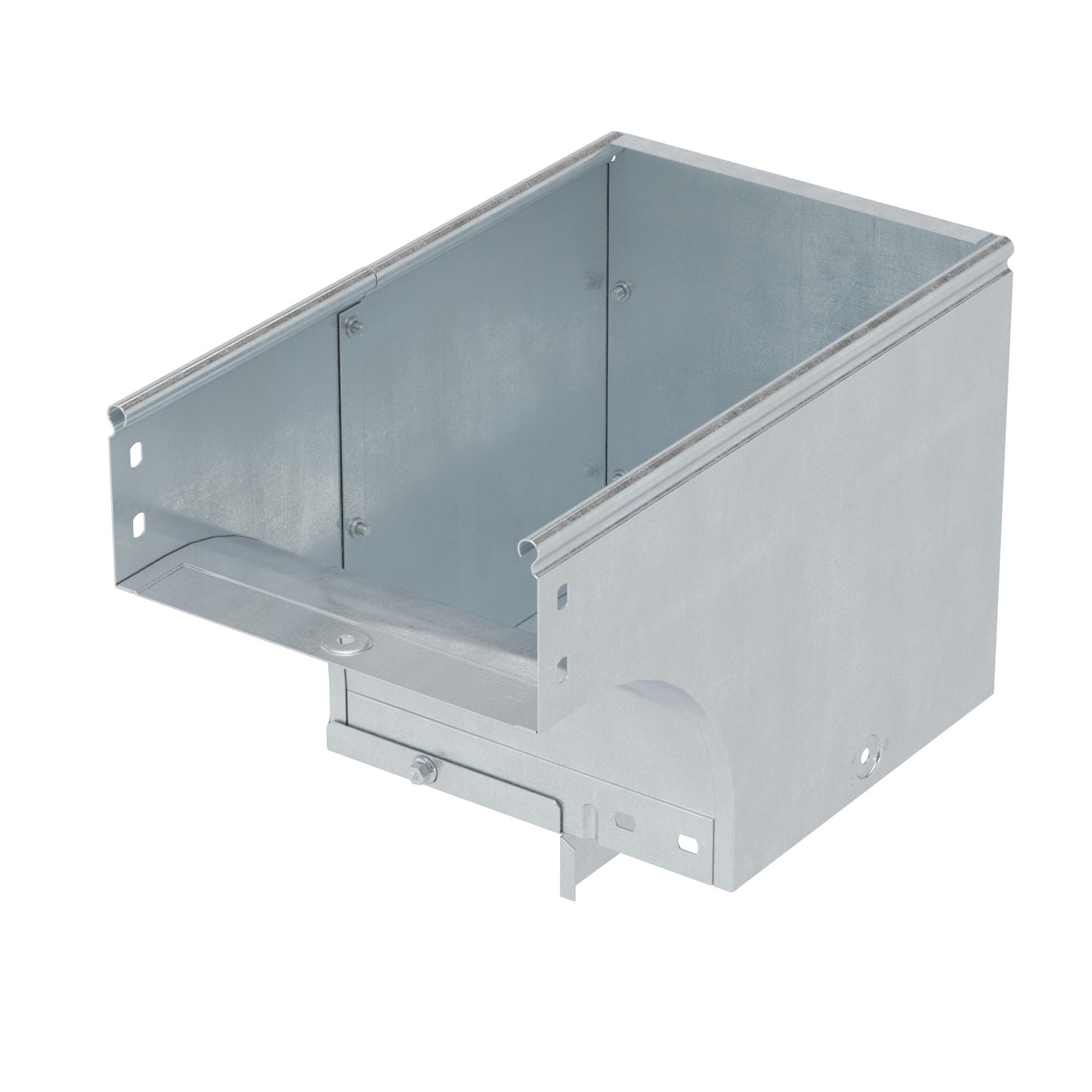

CDSD 90 external vertical angle, 300x50, included with fasteners (joint plates GTO, screws, nuts)

Code: 37505K
Colour Light grey
Model Without connector
Surface protection Sendzimir galvanized
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation No
Material quality Other
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 130
Cable tray width, mm 300
Cable tray height, mm 50
Change of direction Vertically declining
NATO-mounting holes No
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
Seria Name STEP SAT
S5 Combitech - metal sheet trays
