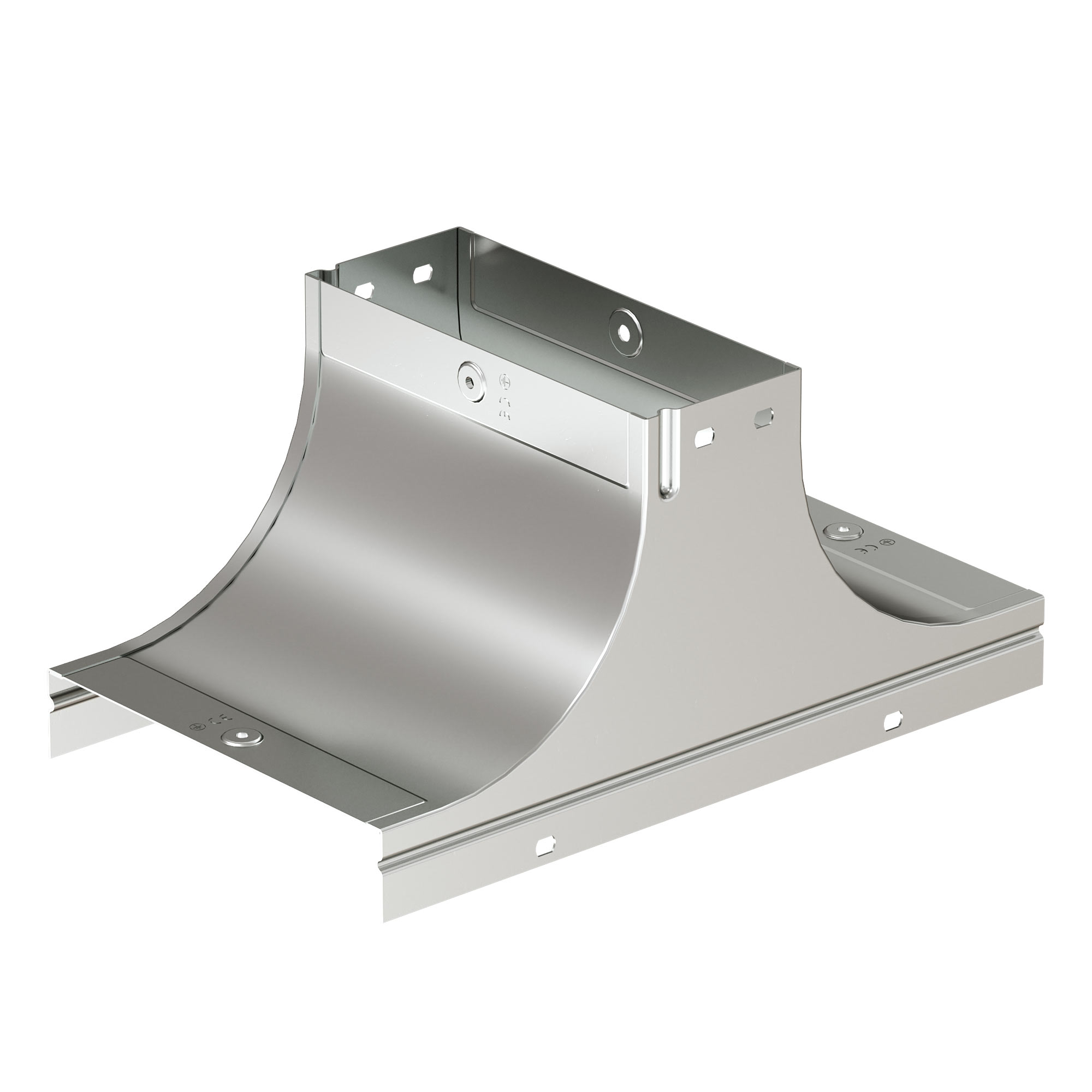

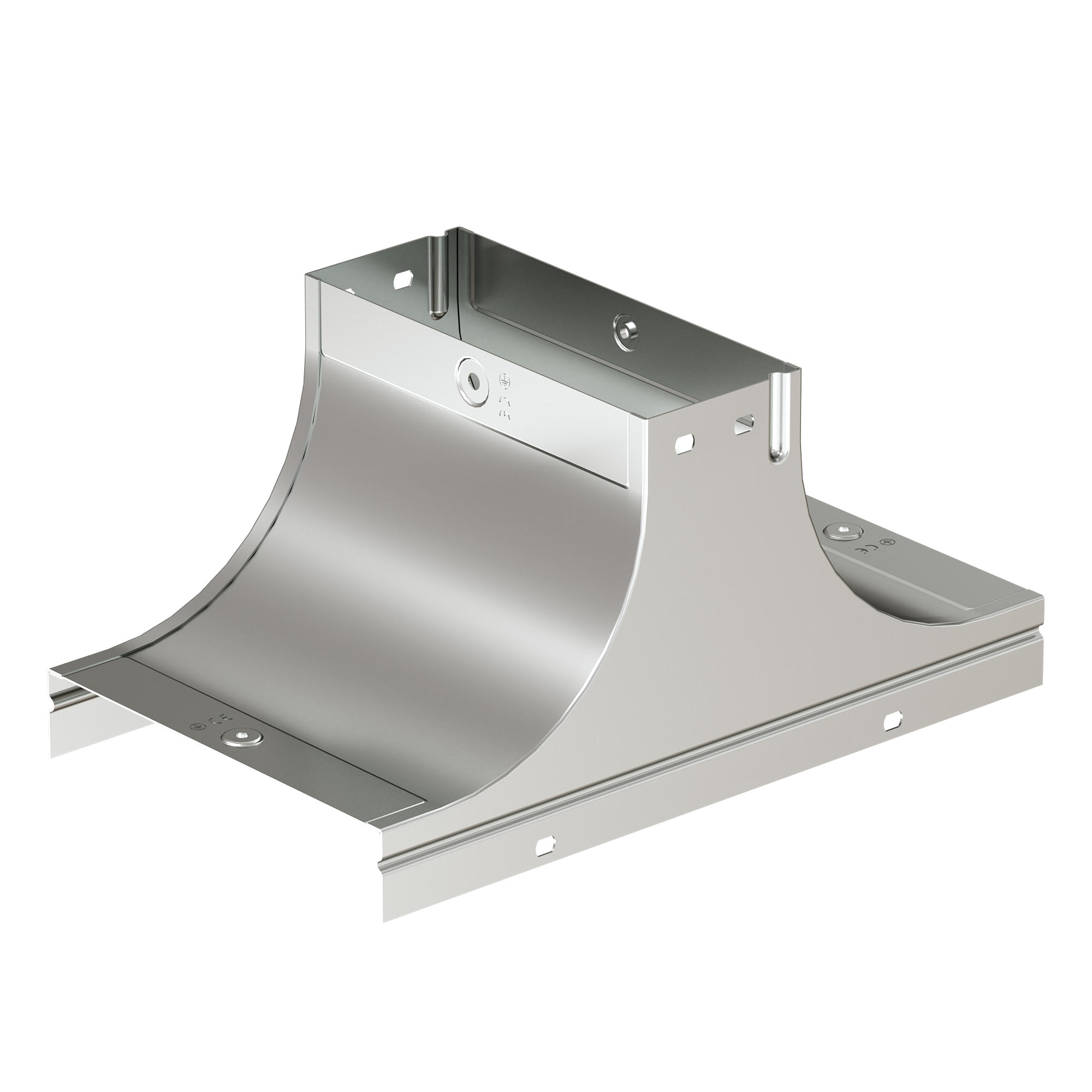

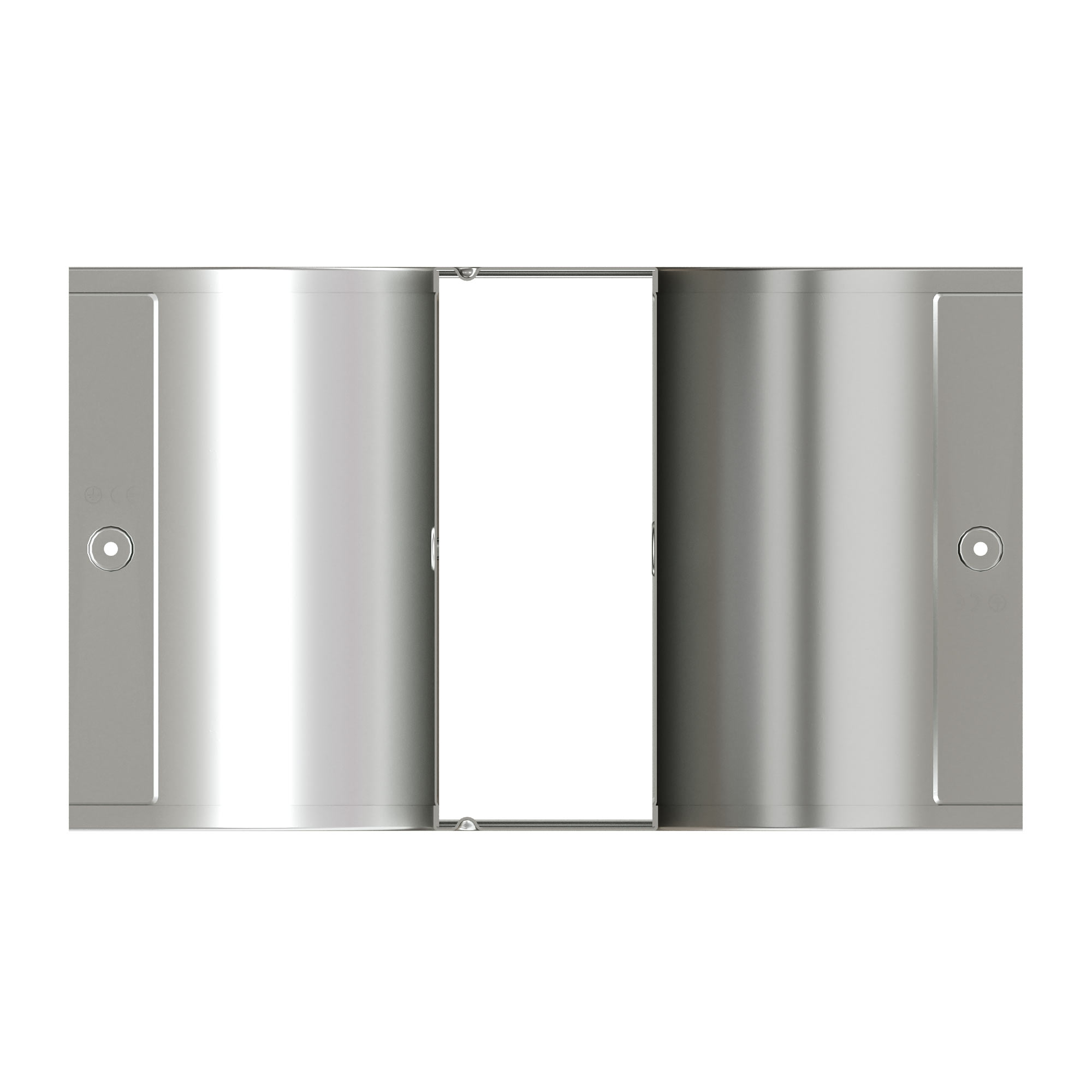

TS tapper-cover, 100x100, included with fasteners (joint plates GTO, screws, nuts)
Code: 37342K
TS tapper-cover, 100x100, included with fasteners (joint plates GTO, screws, nuts)
Code: 37342K
| Colour | Light grey |
| Height side wall, mm | 100 |
| Material | Steel |
| Tray width in horizontal direction, mm | 100 |
| Tray width in vertical direction, mm | 100 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Surface protection | Sendzimir galvanized |
| Material quality | Steel |
| Product type | Covers for system accessories |
| Type of accessories | Cover-branch TS |
| Height | 100 mm |
| Thickness | 1.0 mm |
| Material | Pre-galvanized |
| Width | 100 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37305 | Joint Plate h. 100 | 2 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 1 pcs |
| CM010610 | Square neck bolt М6х10 | 14 pcs |
| CM100600 | Hexagon nut with serrate flange М6 | 14 pcs |

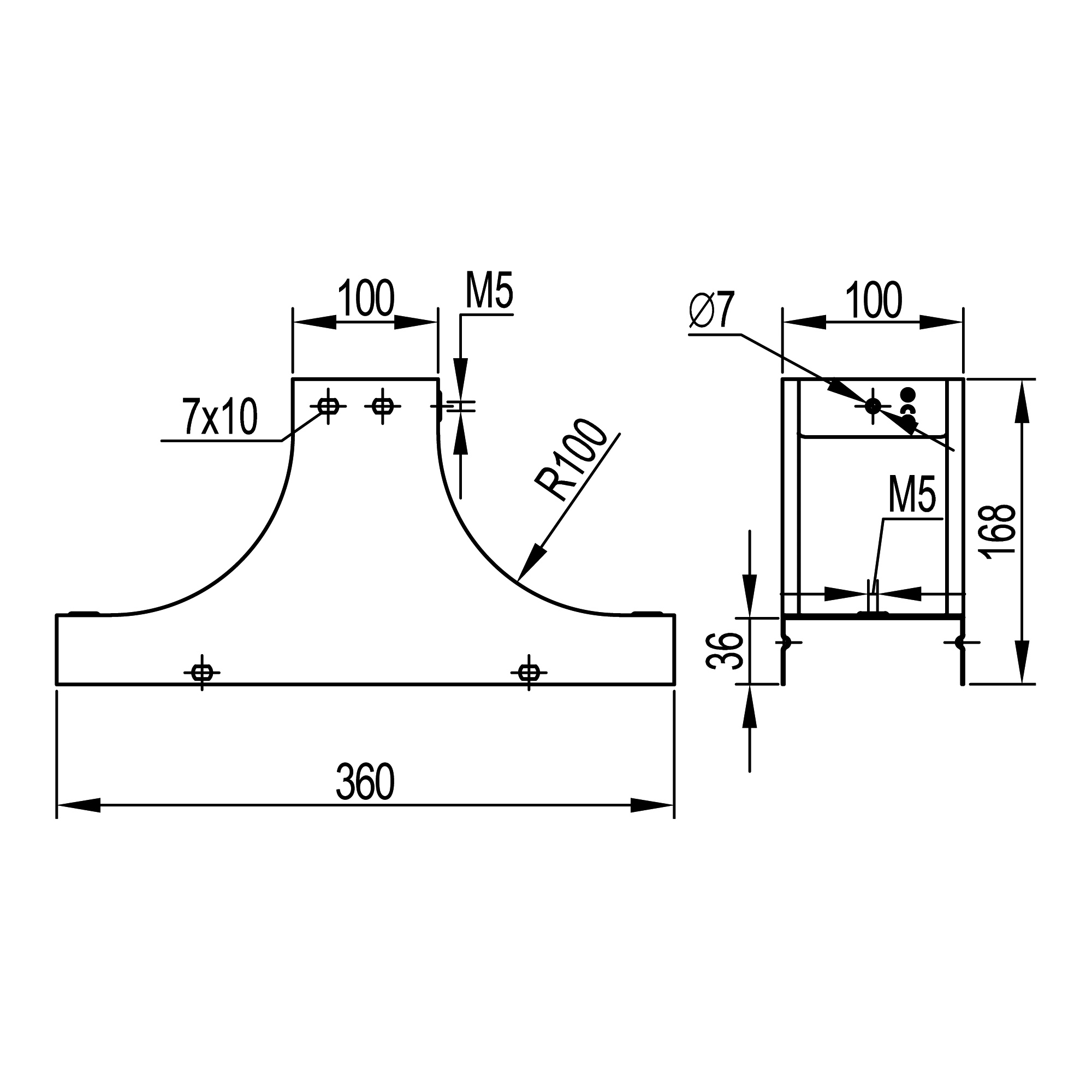

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
