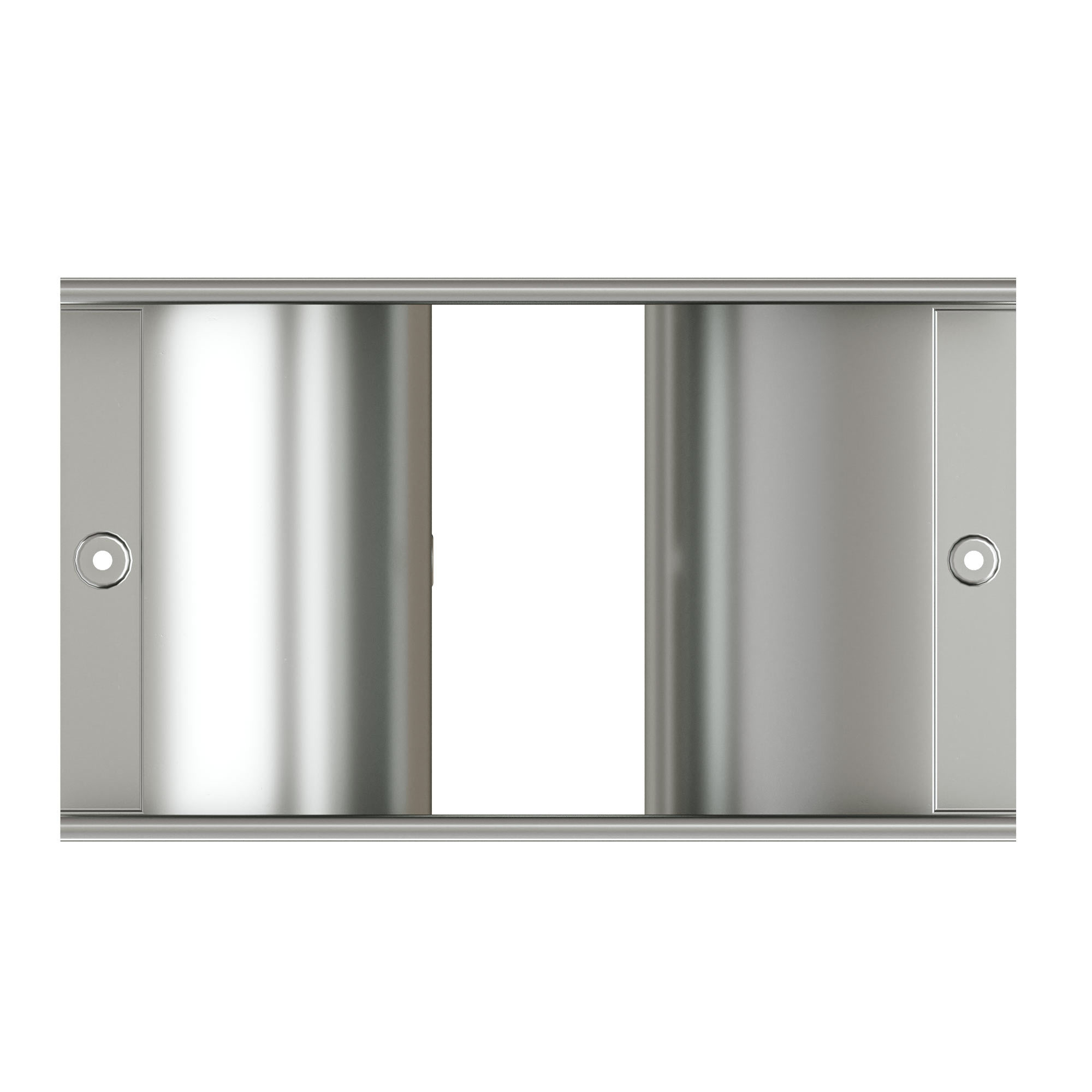

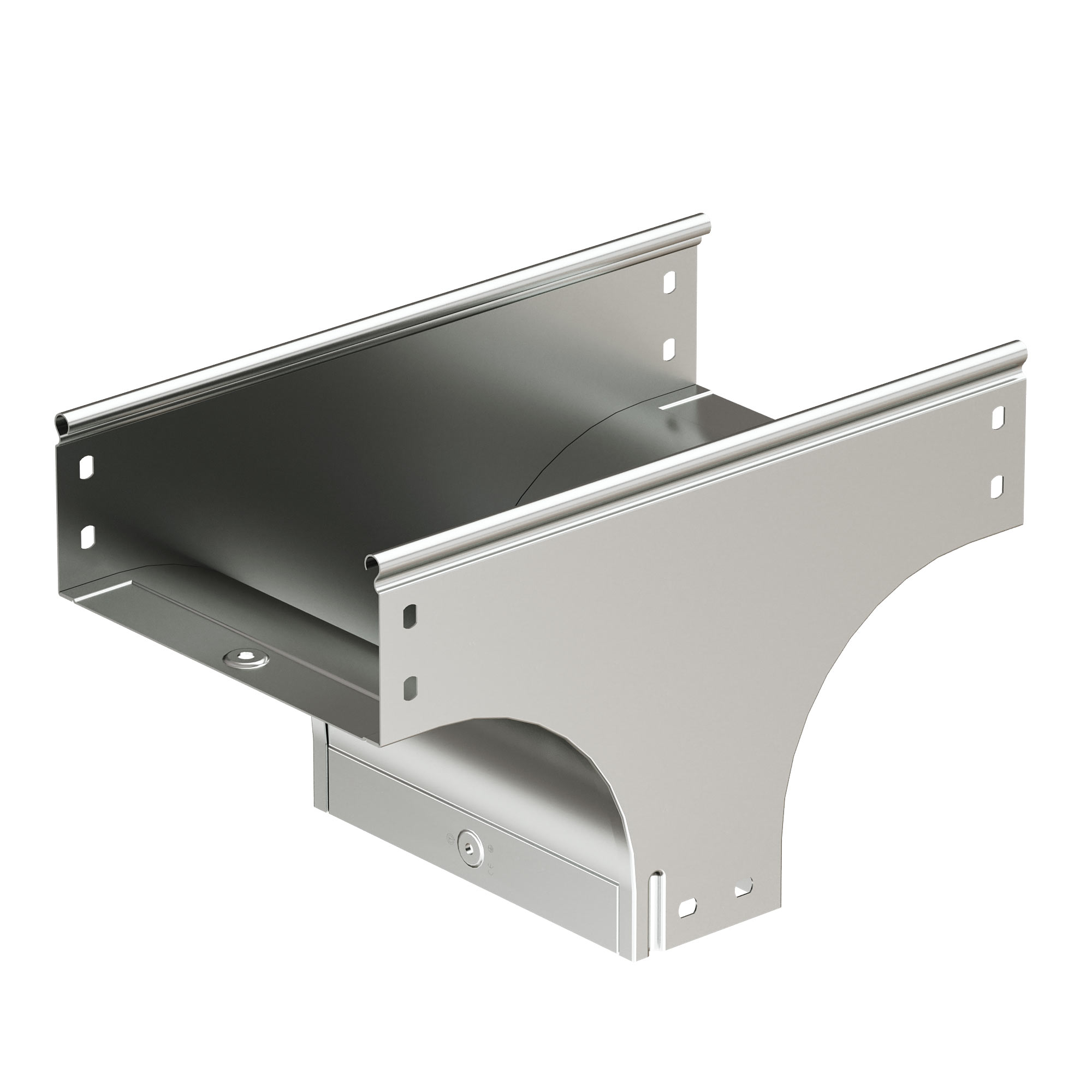

TD vertical T-tapper 100x80, included with fasteners (joint plates GTO, screws, nuts)
Code:
37102K
TD vertical T-tapper 100x80, included with fasteners (joint plates GTO, screws, nuts)
Code:
37102K
Colour | Light grey |
Height side wall, mm | 80 |
Material | Steel |
Tray width in horizontal direction, mm | 100 |
Tray width in vertical direction, mm | 100 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Surface protection | Sendzimir galvanized |
Material quality | Steel |
Product type | System accessories |
Type of accessories | Cover-branch TD vertical |
Height | 80 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 100 mm |
Kit accessory’s structure
Code | Name | Quantity |
37303 | Joint Plate h. 80 | 6 pcs |
37501 | Copper earthing palte for equipotential connection CU | 3 pcs |
CM010610 | Square neck bolt М6х10 | 30 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 30 pcs |

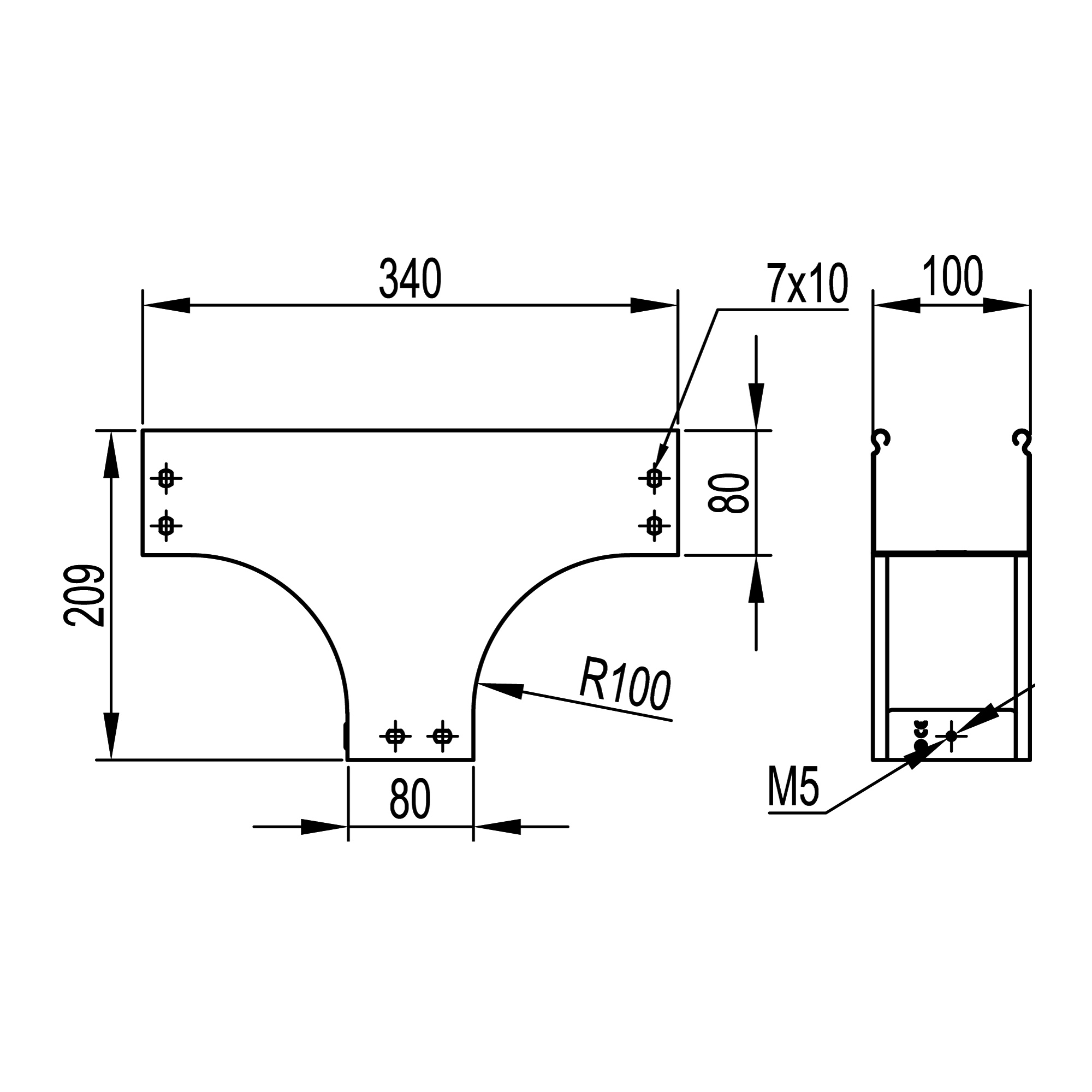

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
