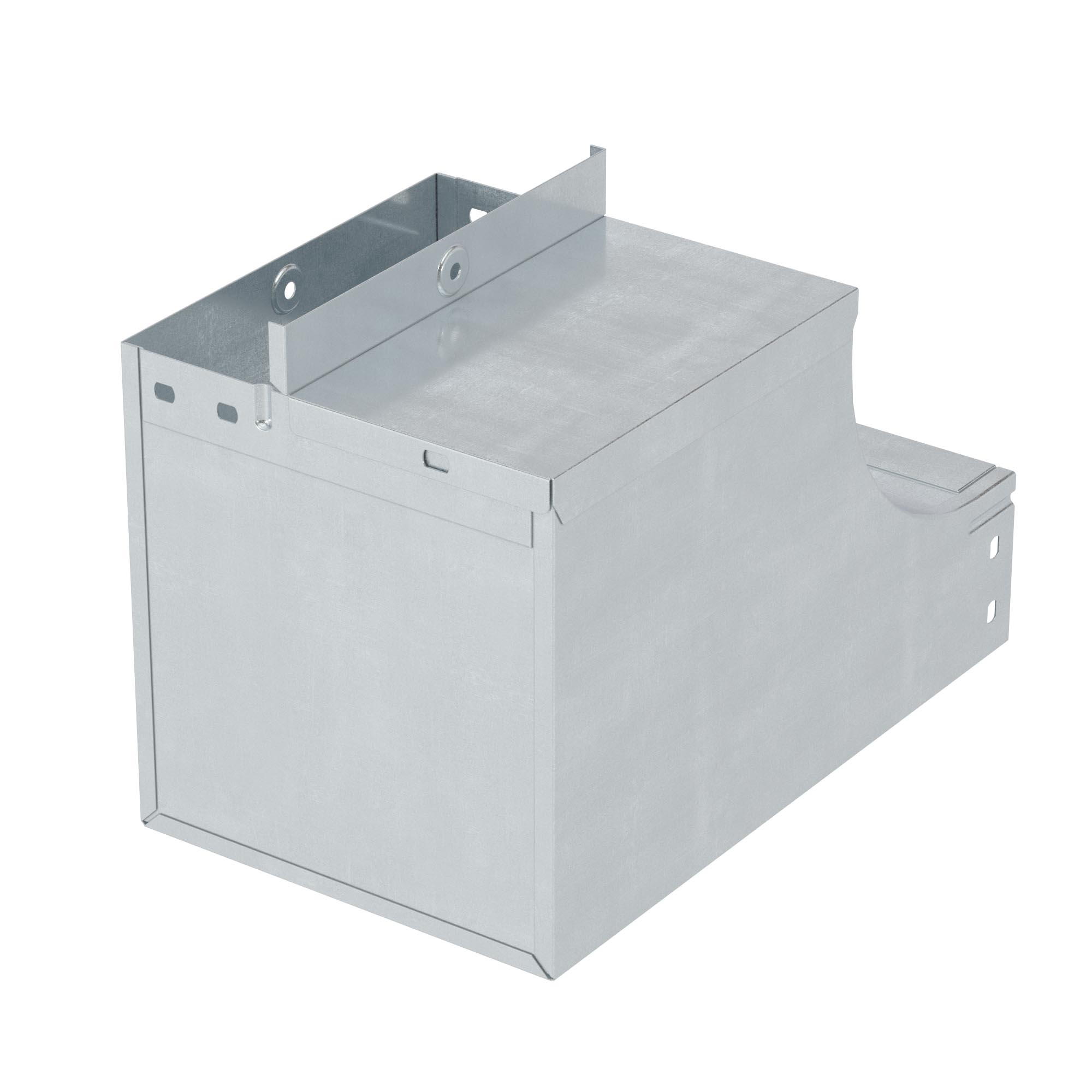

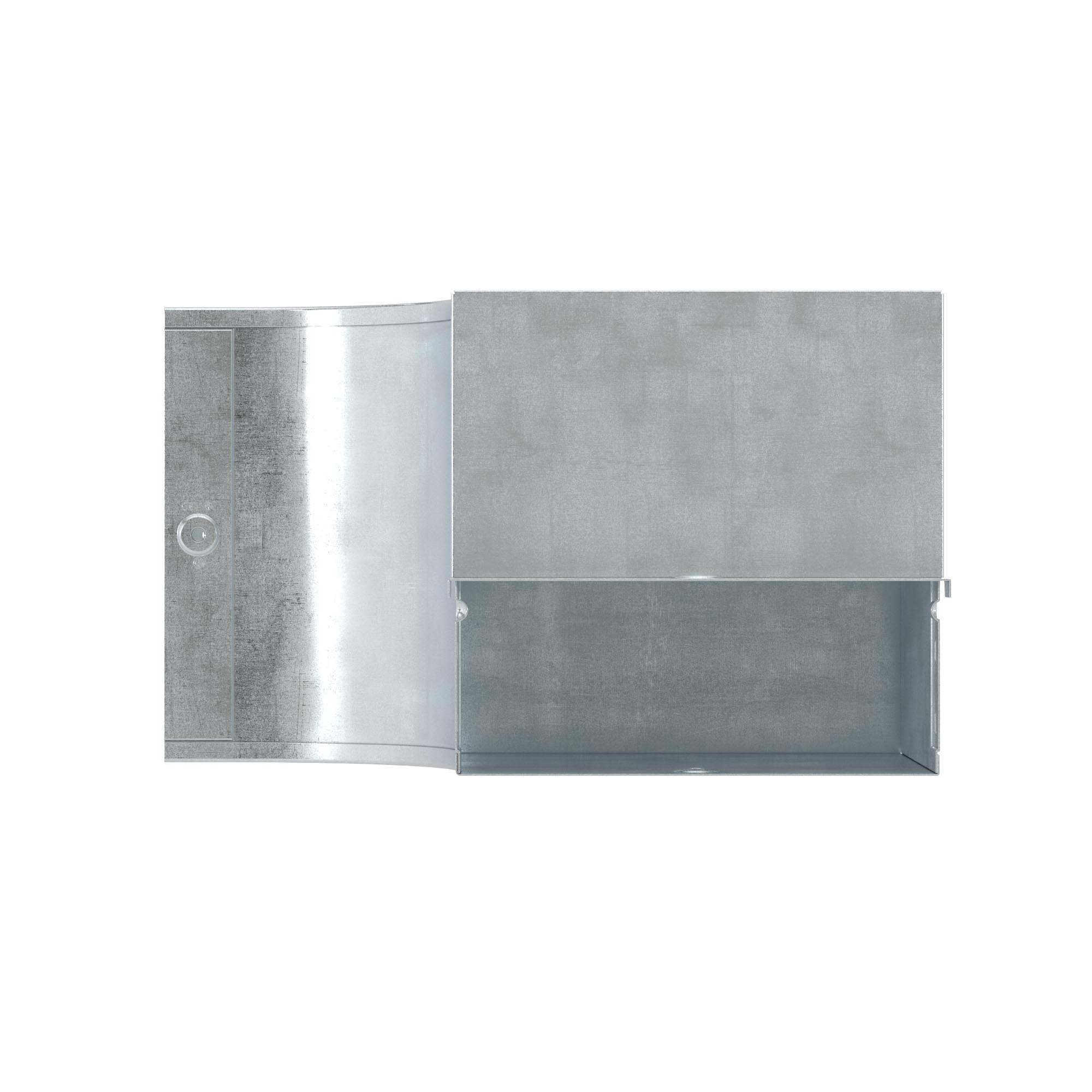

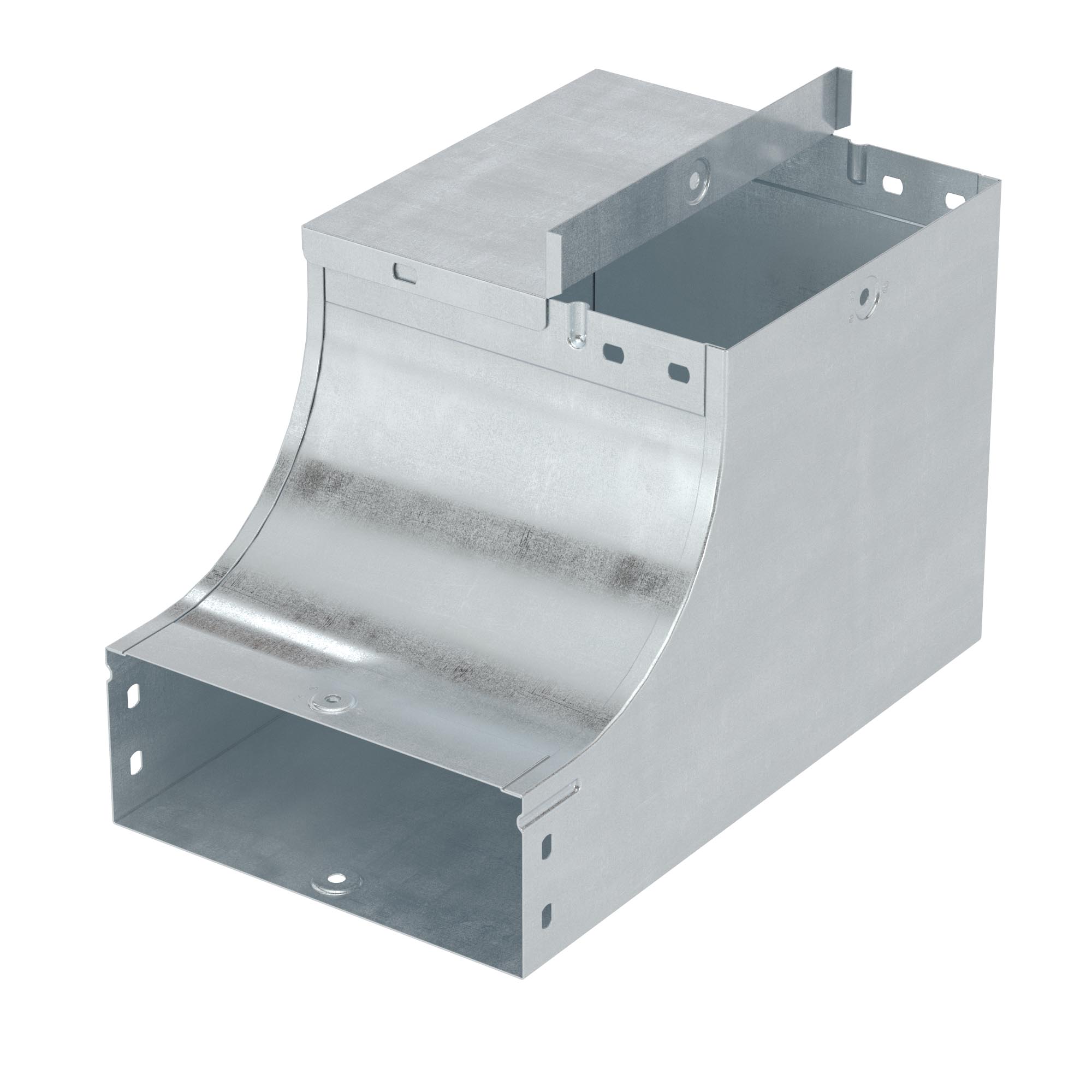

Internal vertical angle, CSSD 90 adapter 100x80, included with fasteners (joint plates GTO, screws, nuts)
Code: 37042K
Internal vertical angle, CSSD 90 adapter 100x80, included with fasteners (joint plates GTO, screws, nuts)
Code: 37042K
Colour | Light grey |
Model | Included connector |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 0.8 |
Deflection (angle) | 90° |
Side wall perforation | Yes |
Material quality | Steel |
Material | Steel |
Mounting perforation in bottom | Yes |
Inner radius, mm | 100 |
Cable tray width, mm | 100 |
Cable tray height, mm | 80 |
Change of direction | Vertically rising |
NATO-mounting holes | Yes |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | System accessories |
Type of accessories | Internal vertical angle, CSSD 90 adapter |
Height | 80 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 100 mm |

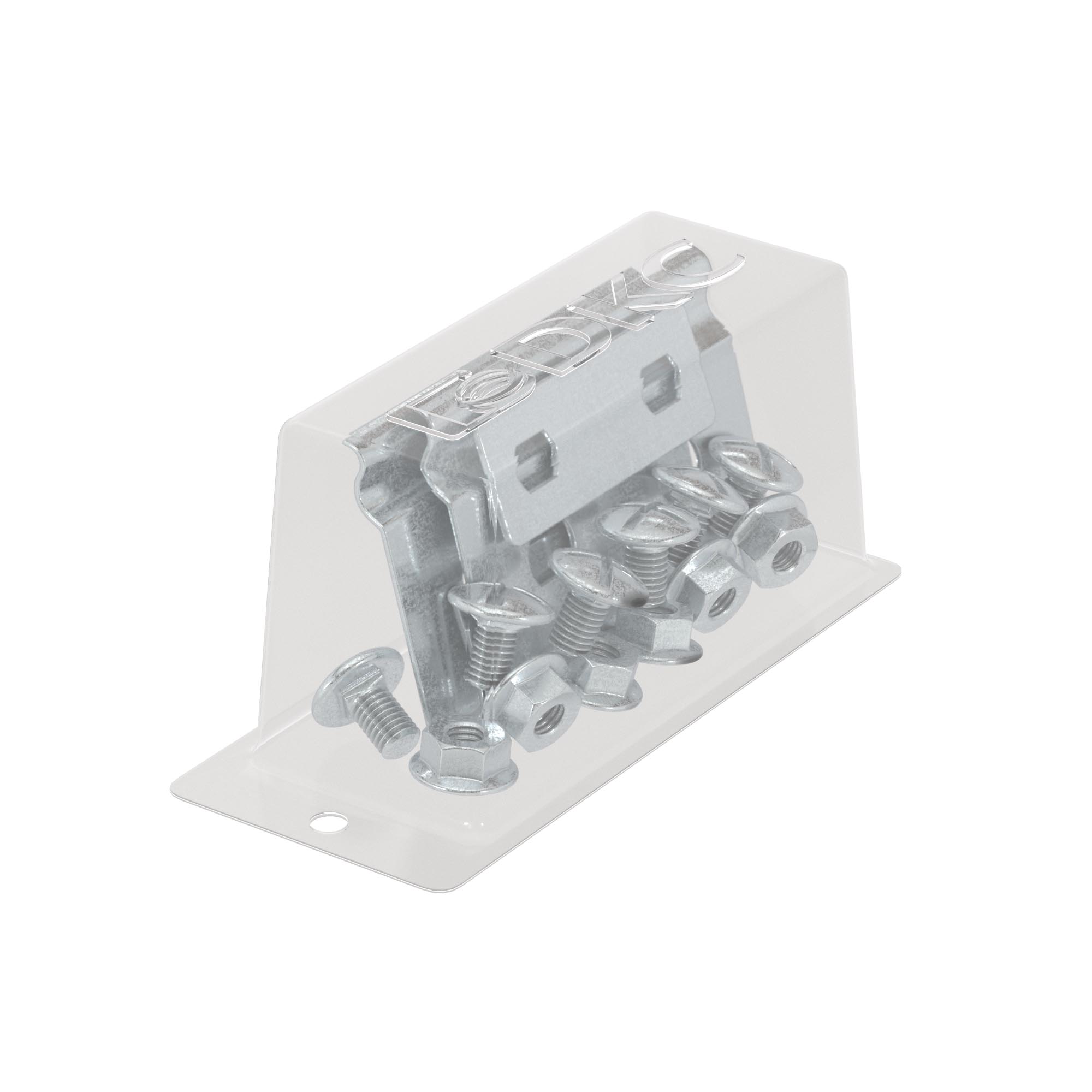

Kit accessory’s structure
Code | Name | Quantity |
37303 | Joint Plate h. 80 | 4 pcs |
37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
CM010610 | Square neck bolt М6х10 | 20 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 20 pcs |

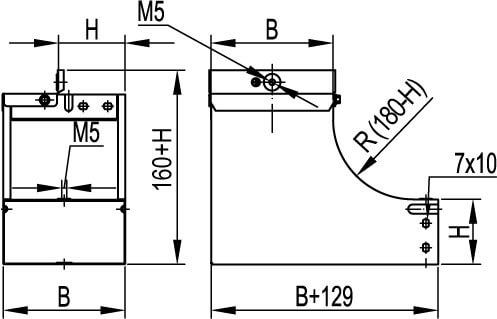

Drawings
