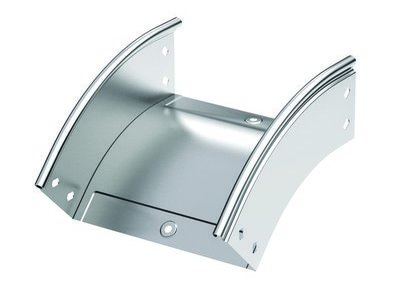

CD 45 external vertical angle 100x50, included with fasteners (joint plates GTO, screws, nuts)

Code: 36842K
CD 45 external vertical angle 100x50, included with fasteners (joint plates GTO, screws, nuts)
CD 45 external vertical angle 100x50, included with fasteners (joint plates GTO, screws, nuts)
Code: 36842K
  • To ask a question
  • Characteristics
  • Kit accessory’s structure
  • Accessories
  • The accompanying goods

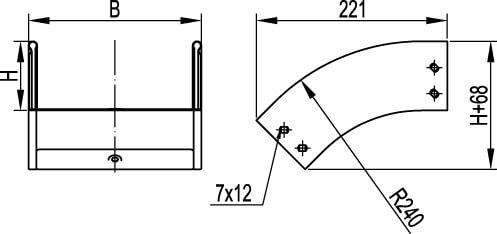

  • Drawings
  • Certificates
  • Promo
  • Viewed items
Model Included connector
Surface protection Sendzimir galvanized
Material thickness, mm 0.8
Deflection (angle) 45°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Cable tray width, mm 100
Cable tray height, mm 50
Change of direction Vertically declining
Suitable for circuit integrity Yes
With cover No
Bend model Smooth bend
Product type System accessories
Type of accessories 45º vertical external bend
Height 50 mm
Thickness 0.8 mm
Material Pre-galvanized
Width 100 mm
