RRC adapter 600-500 h 100, included with fasteners (joint plates GTO, screws, nuts)
Code: 36433K
RRC adapter 600-500 h 100, included with fasteners (joint plates GTO, screws, nuts)
Code: 36433K
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Galvanic/electrolytic zinc plated |
| Construction type | Reducing symmetrical |
| Width (big), mm | 600 |
| Width (small), mm | 500 |
| Material | Steel |
| Cable tray height, mm | 100 |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Product type | Mounting accessories |
| Type of accessories | Central reducer |
| Height | 100 mm |
| Thickness | 0.8 mm |
| Material | Pre-galvanized |
| Width | 500 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37305 | Joint Plate h. 100 | 4 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
| CM010610 | Square neck bolt М6х10 | 20 pcs |
| CM100600 | Hexagon nut with serrate flange М6 | 20 pcs |

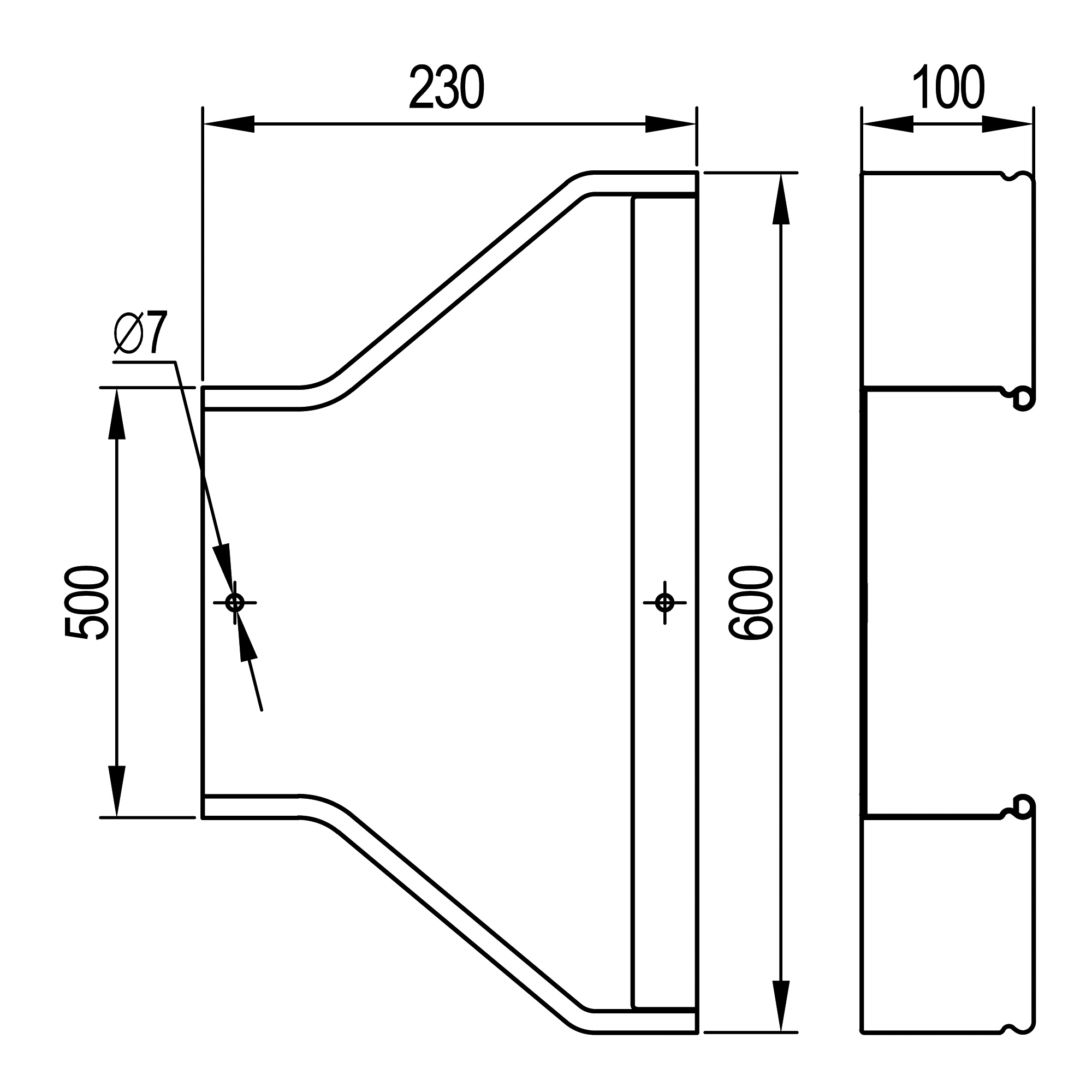

Drawings
| Seria | Name | SAT | STEP |
|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
