RRC adapter 200-150 h 100, included with fasteners (joint plates GTO, screws, nuts)
Code: 36322K
RRC adapter 200-150 h 100, included with fasteners (joint plates GTO, screws, nuts)
Code: 36322K
Colour | Light grey |
Model | Included connector |
Surface protection | Galvanic/electrolytic zinc plated |
Construction type | Reducing symmetrical |
Width (big), mm | 200 |
Width (small), mm | 150 |
Material | Steel |
Cable tray height, mm | 100 |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | Mounting accessories |
Type of accessories | Central reducer |
Height | 100 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 150 mm |
Kit accessory’s structure
Code | Name | Quantity |
37305 | Joint Plate h. 100 | 4 pcs |
37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
CM010610 | Square neck bolt М6х10 | 20 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 20 pcs |

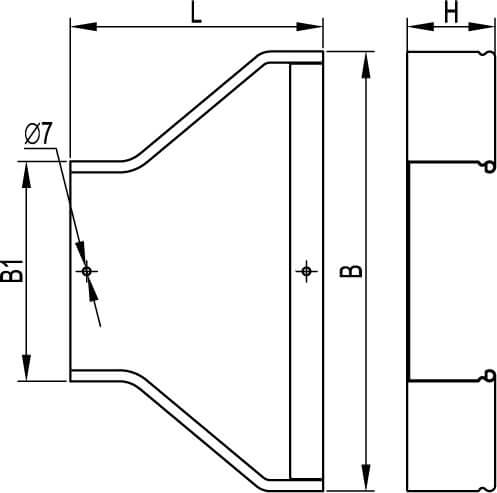

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
