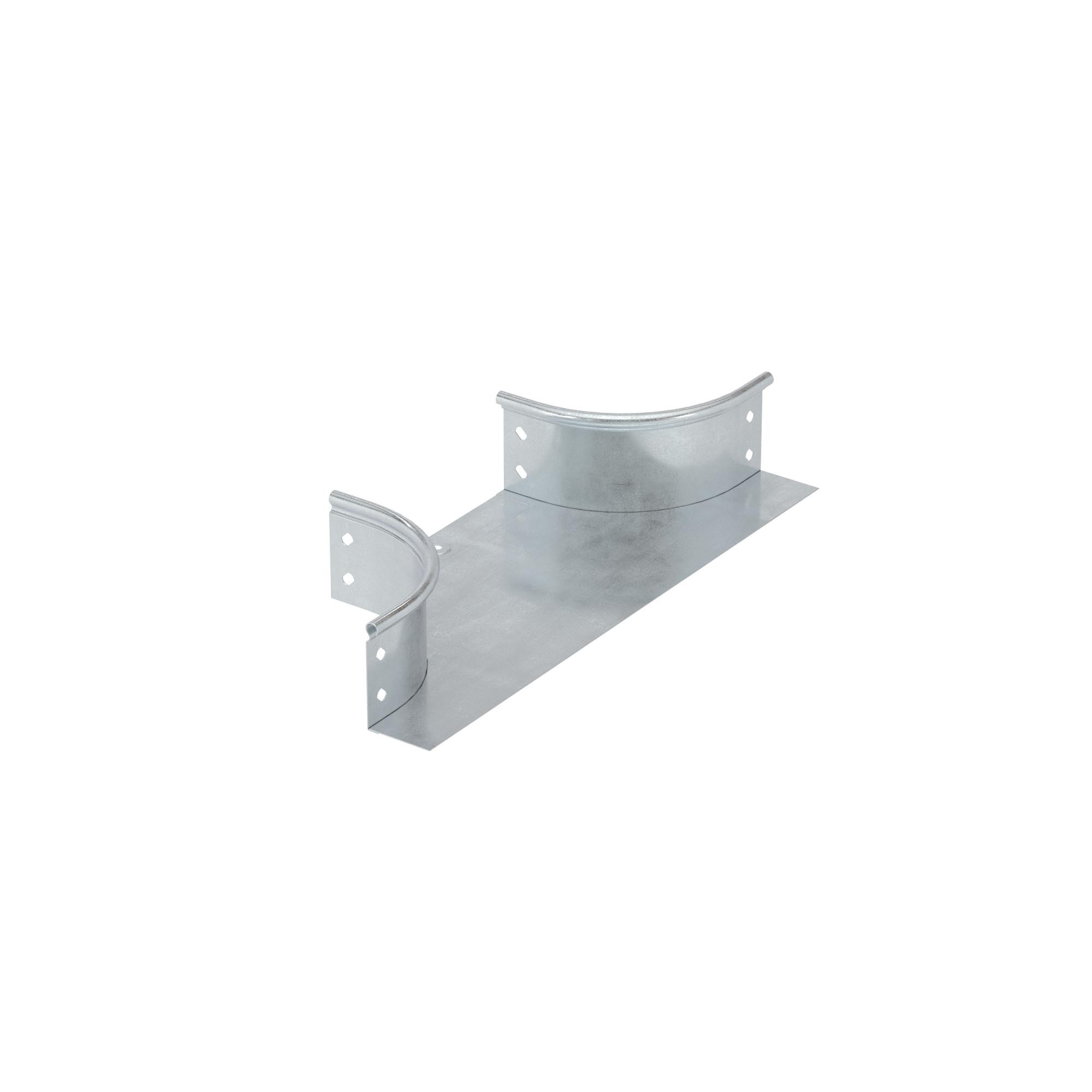

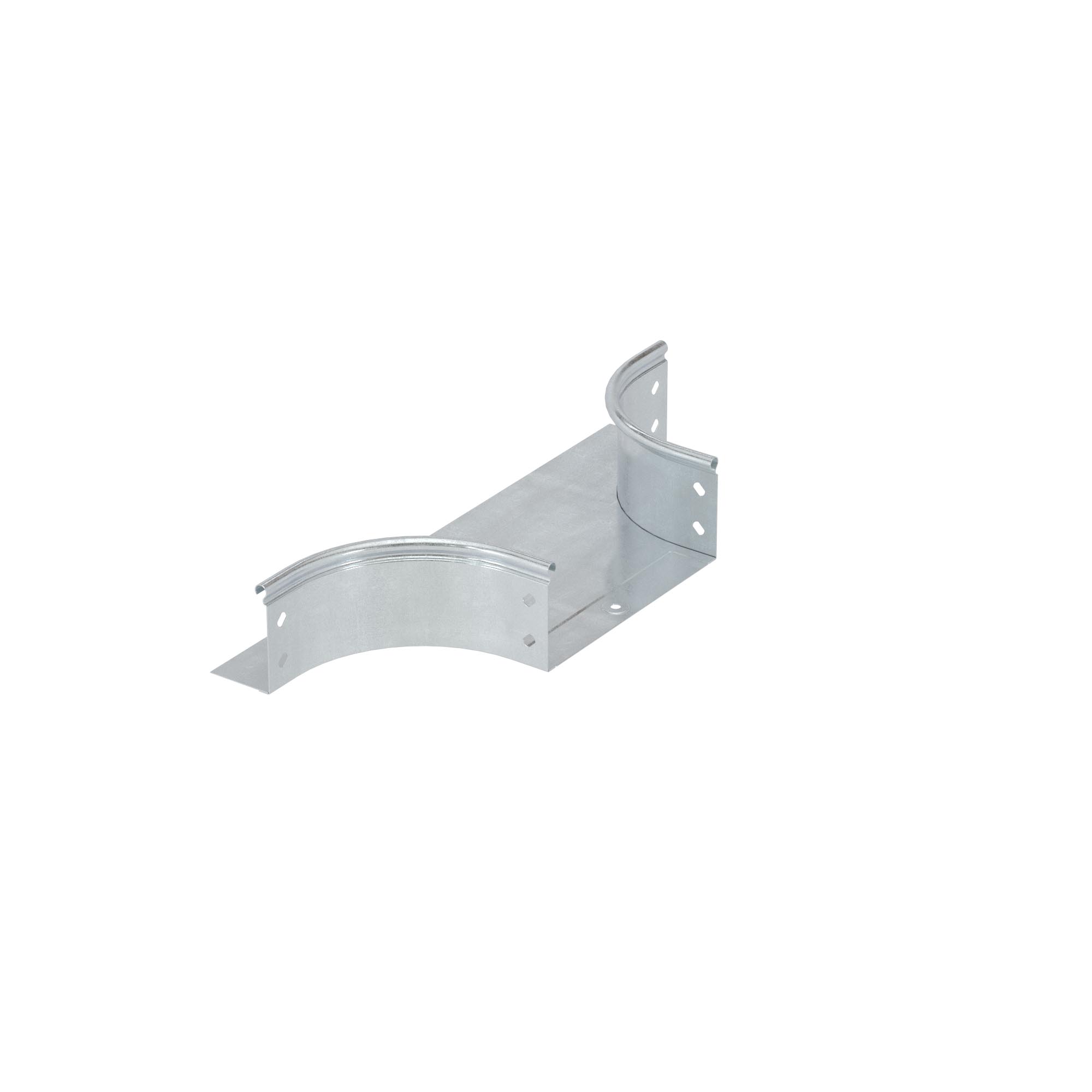

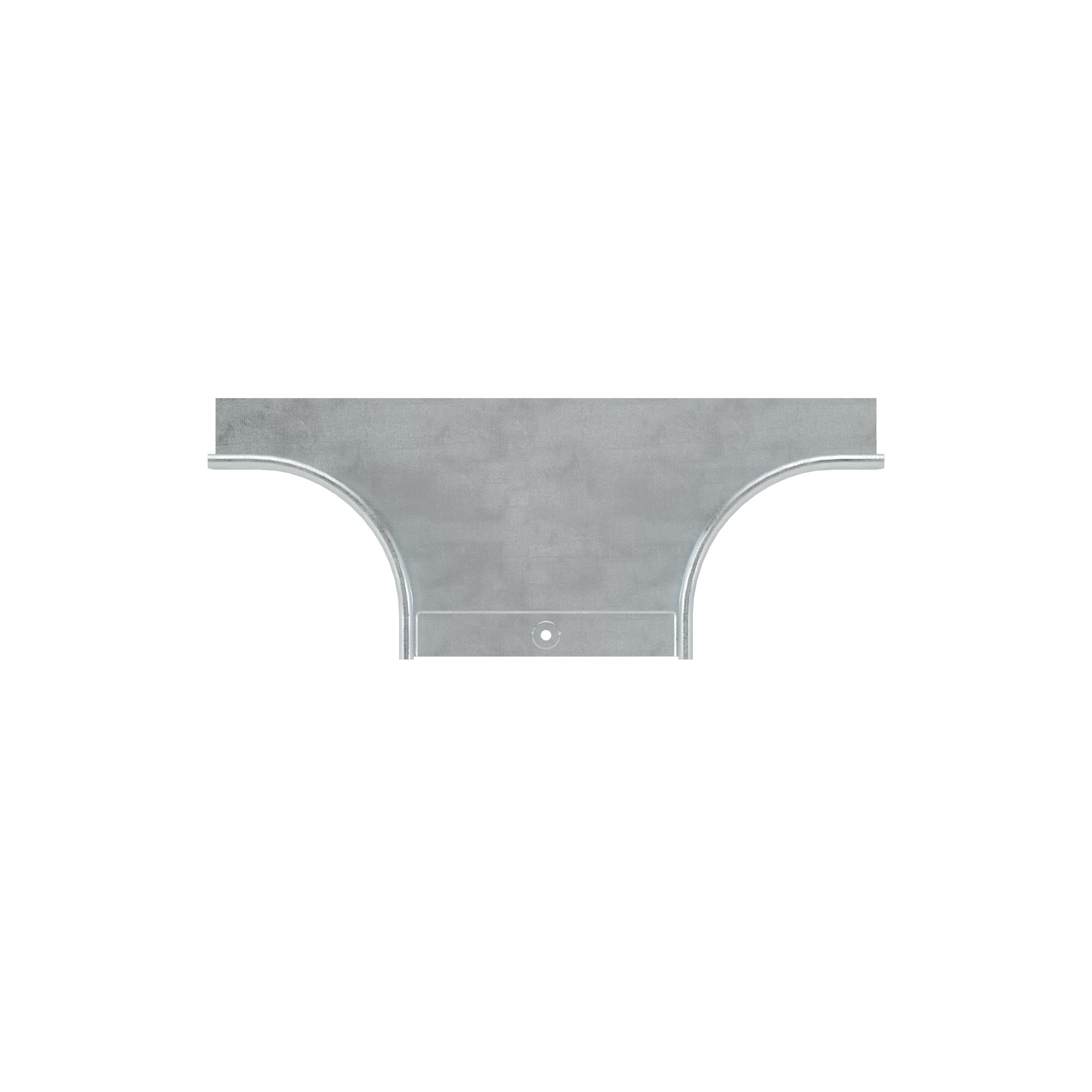

DL T-tapper 400x80 included with fasteners (joint plates GTO, screws, nuts)
Code: 36254K
DL T-tapper 400x80 included with fasteners (joint plates GTO, screws, nuts)
Code: 36254K
Colour | Light grey |
Model | Included connector |
Surface protection | Sendzimir galvanized |
Material quality | Steel |
Material | Steel |
Inner radius, mm | 100 |
Cable tray branch width, mm | 400 |
Cable tray height, mm | 80 |
NATO-mounting holes | Yes |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | System accessories |
Type of accessories | Universal branch |
Height | 80 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 400 mm |
Kit accessory’s structure
Code | Name | Quantity |
37303 | Joint Plate h. 80 | 4 pcs |
37501 | Copper earthing palte for equipotential connection CU | 1 pcs |
CM010610 | Square neck bolt М6х10 | 18 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 18 pcs |
The accompanying goods

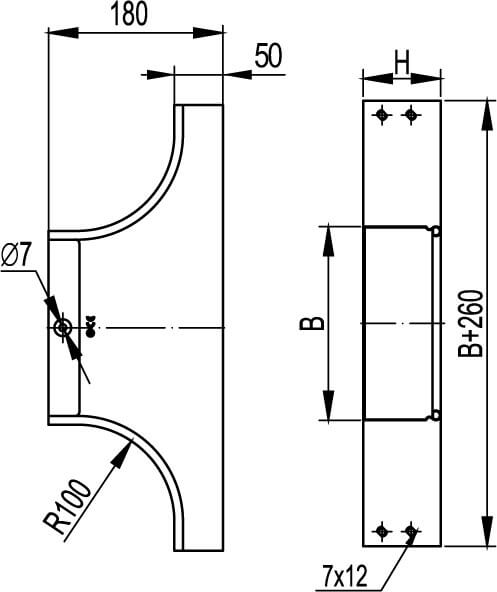

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
