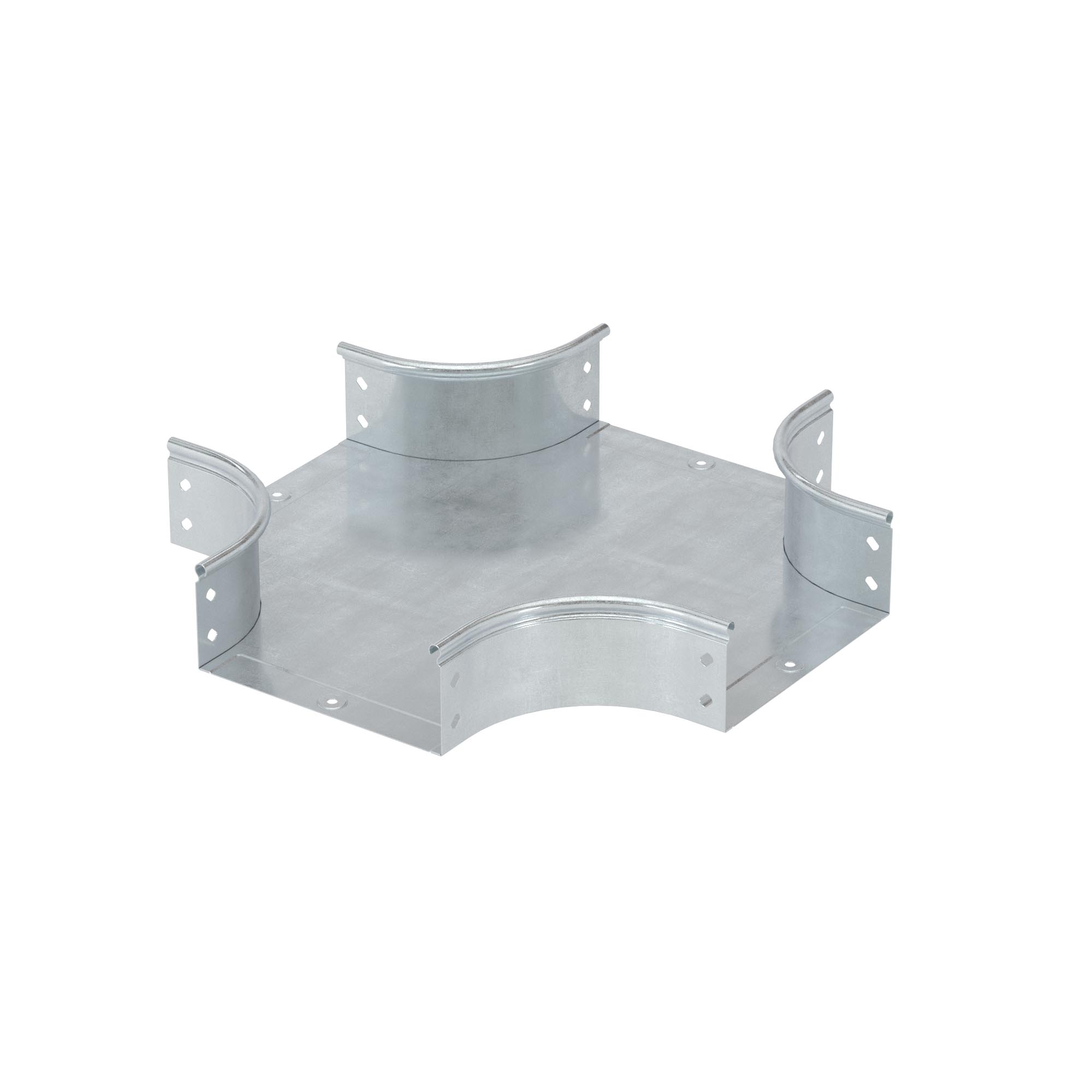

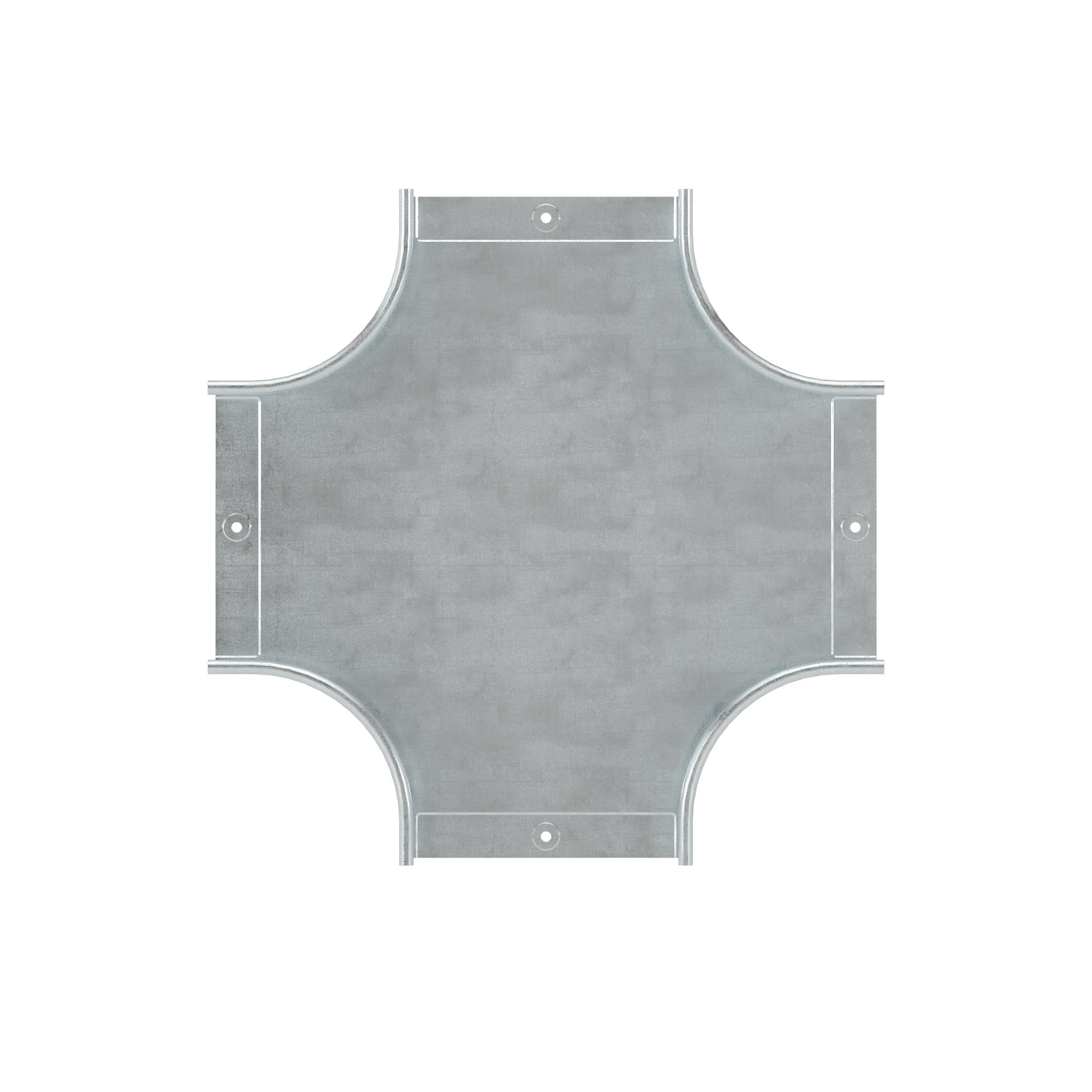

DPX X-tapper 200x100 included with fasteners (joint plates GTO, screws, nuts)
Code: 36223K
DPX X-tapper 200x100 included with fasteners (joint plates GTO, screws, nuts)
Code: 36223K
Colour | Light grey |
Model | Included connector |
Surface protection | Sendzimir galvanized |
Material | Steel |
Inner radius, mm | 100 |
Cable tray width, mm | 200 |
Cable tray height, mm | 100 |
NATO-mounting holes | Yes |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Material quality | Steel |
Product type | System accessories |
Type of accessories | Horizontal cross |
Height | 100 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 200 mm |
Kit accessory’s structure
Code | Name | Quantity |
37305 | Joint Plate h. 100 | 8 pcs |
37501 | Copper earthing palte for equipotential connection CU | 4 pcs |
CM010610 | Square neck bolt М6х10 | 40 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 40 pcs |
The accompanying goods

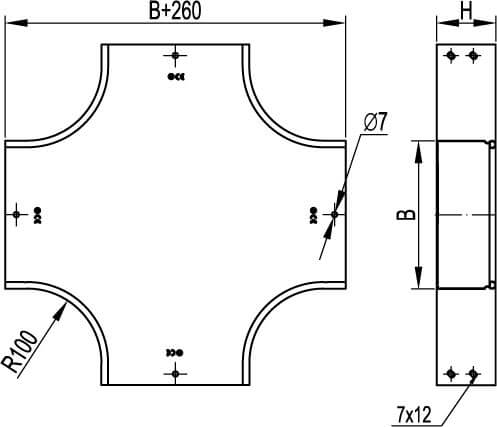

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
