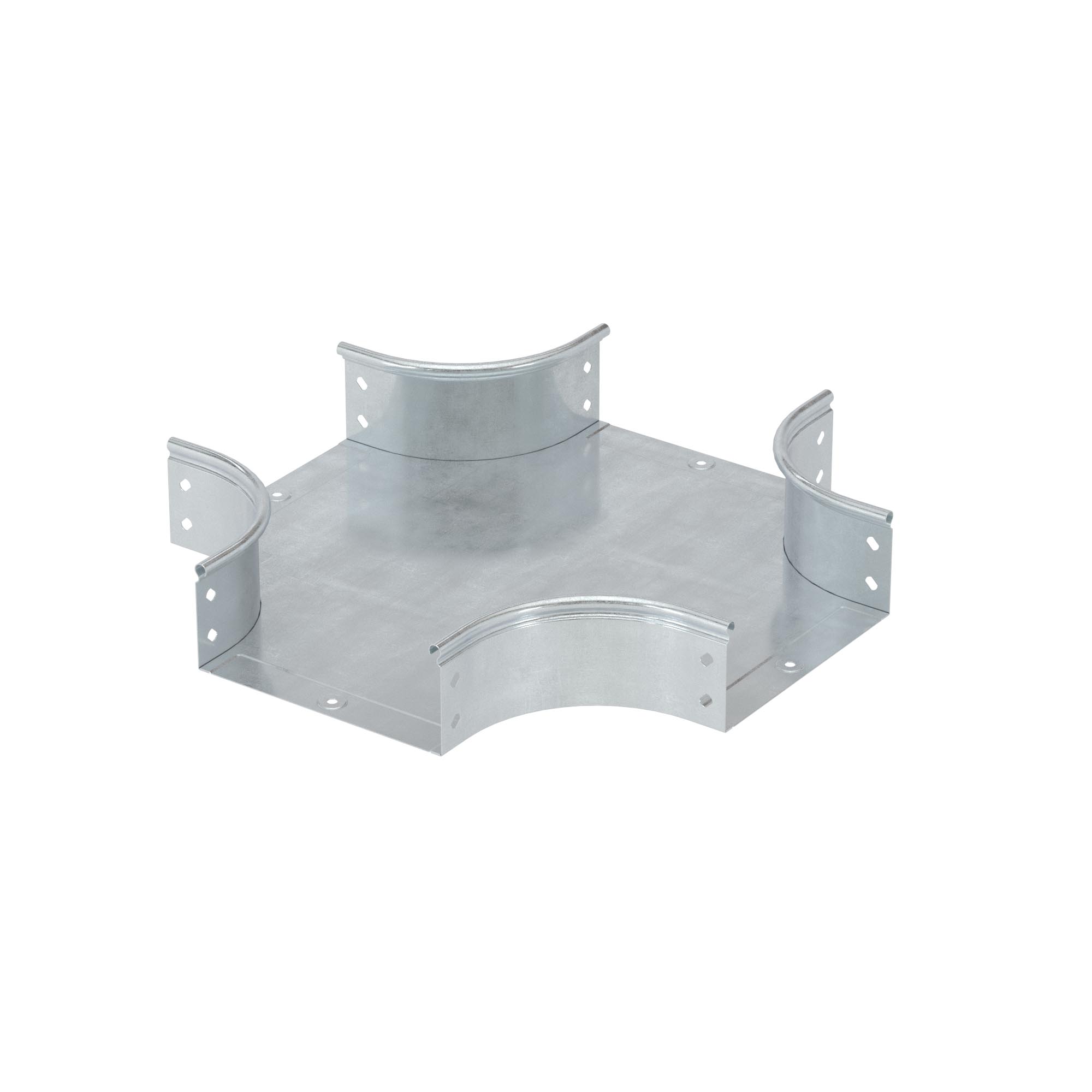

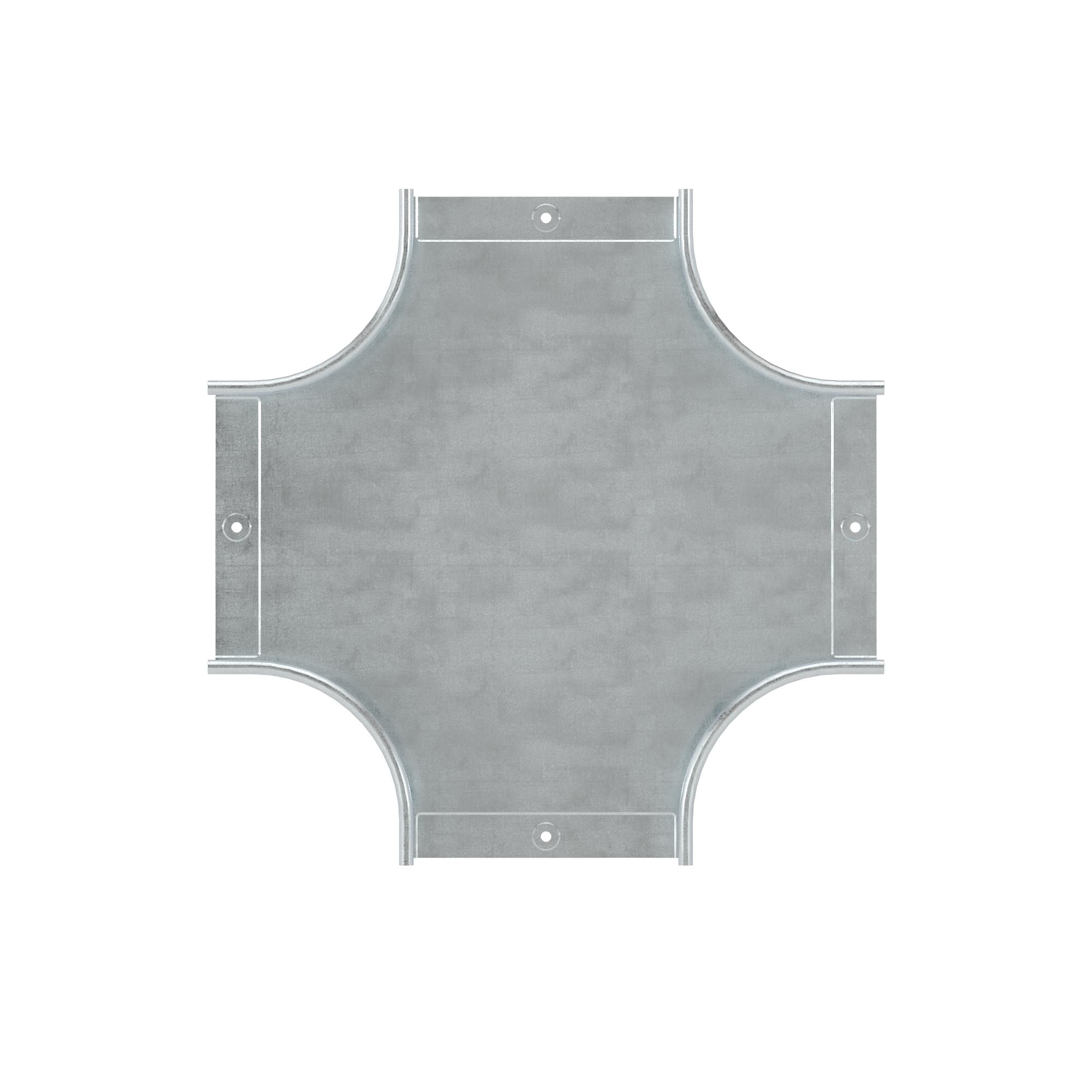

DPX X-tapper 500x80 included with fasteners (joint plates GTO, screws, nuts)
Code: 36207K
DPX X-tapper 500x80 included with fasteners (joint plates GTO, screws, nuts)
Code: 36207K
| Colour | Light grey |
| Model | Included connector |
| Surface protection | Sendzimir galvanized |
| Material | Steel |

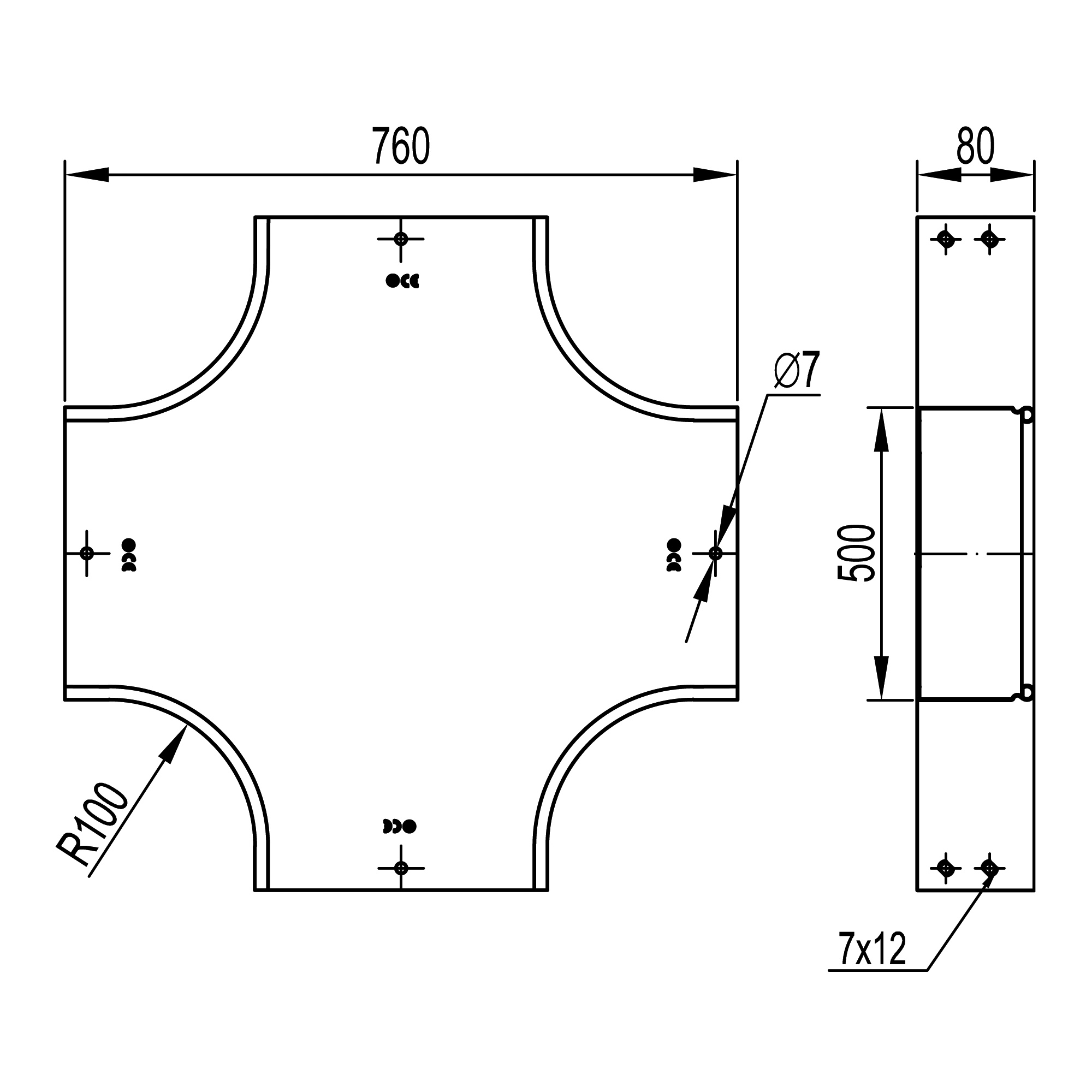

| Inner radius, mm | 100 |
| Cable tray width, mm | 500 |
| Cable tray height, mm | 80 |
| NATO-mounting holes | Yes |
| Stainless steel, pickled | Yes |
| Wide span model | Yes |
| Suitable for circuit integrity | Yes |
| Material quality | Steel |
| Product type | System accessories |
| Type of accessories | Horizontal cross |
| Height | 80 mm |
| Thickness | 0.8 mm |
| Material | Pre-galvanized |
| Width | 500 mm |
Kit accessory’s structure
| Code | Name | Quantity |
| 37303 | Joint Plate h. 80 | 8 pcs |
| 37501 | Copper earthing palte for equipotential connection CU | 4 pcs |
| CM010610 | Square neck bolt М6х10 | 40 pcs |
| CM100600 | Hexagon nut with serrate flange М6 | 40 pcs |
