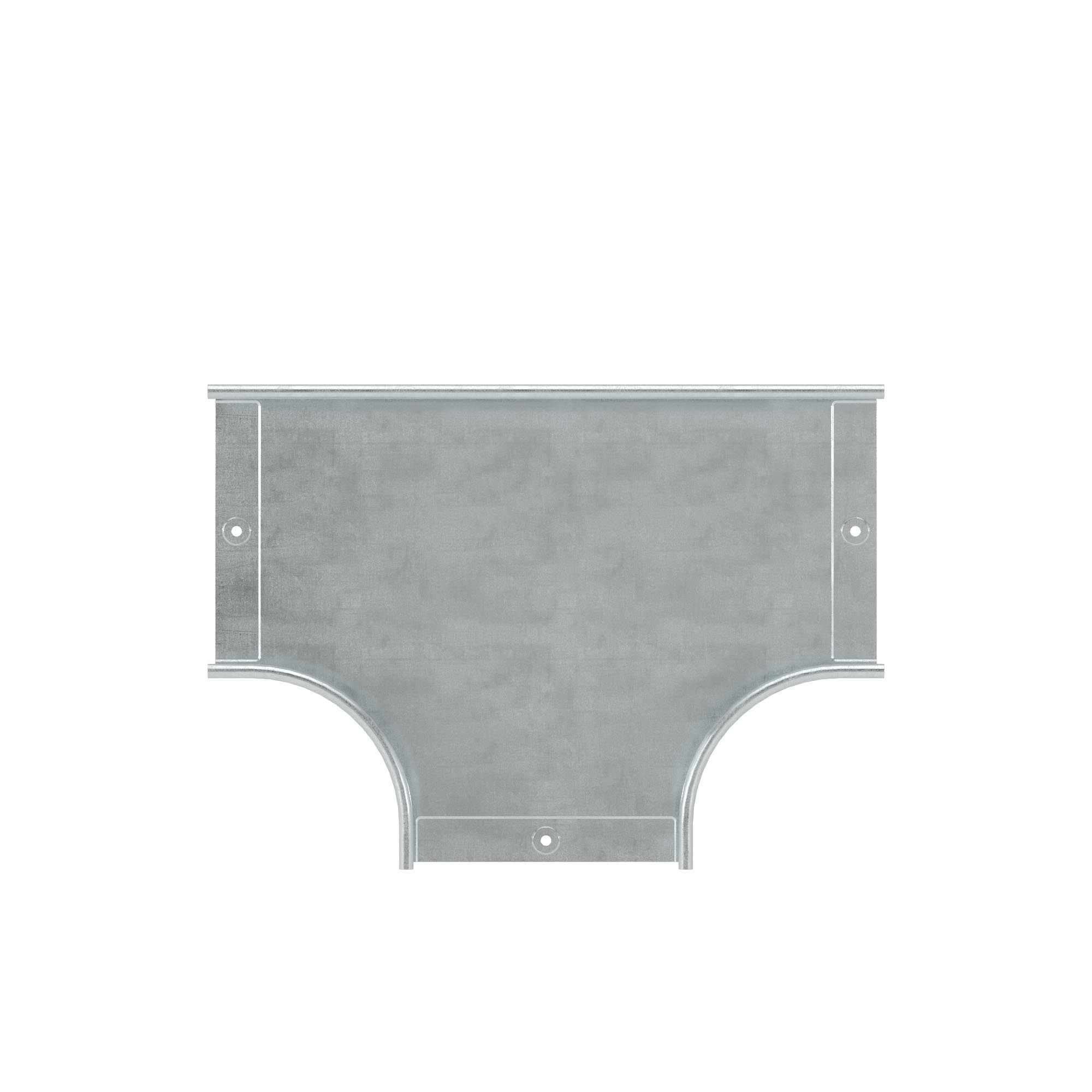

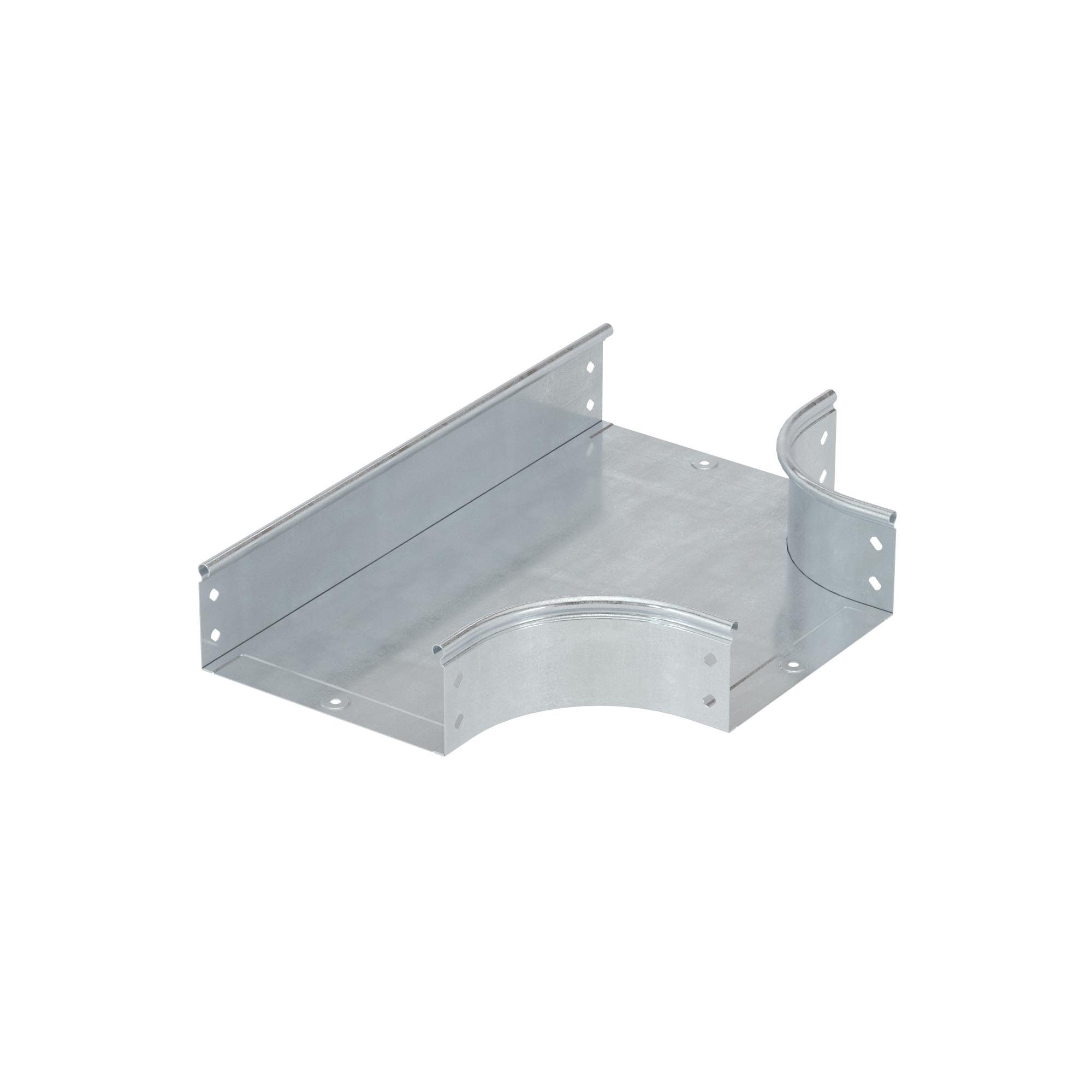

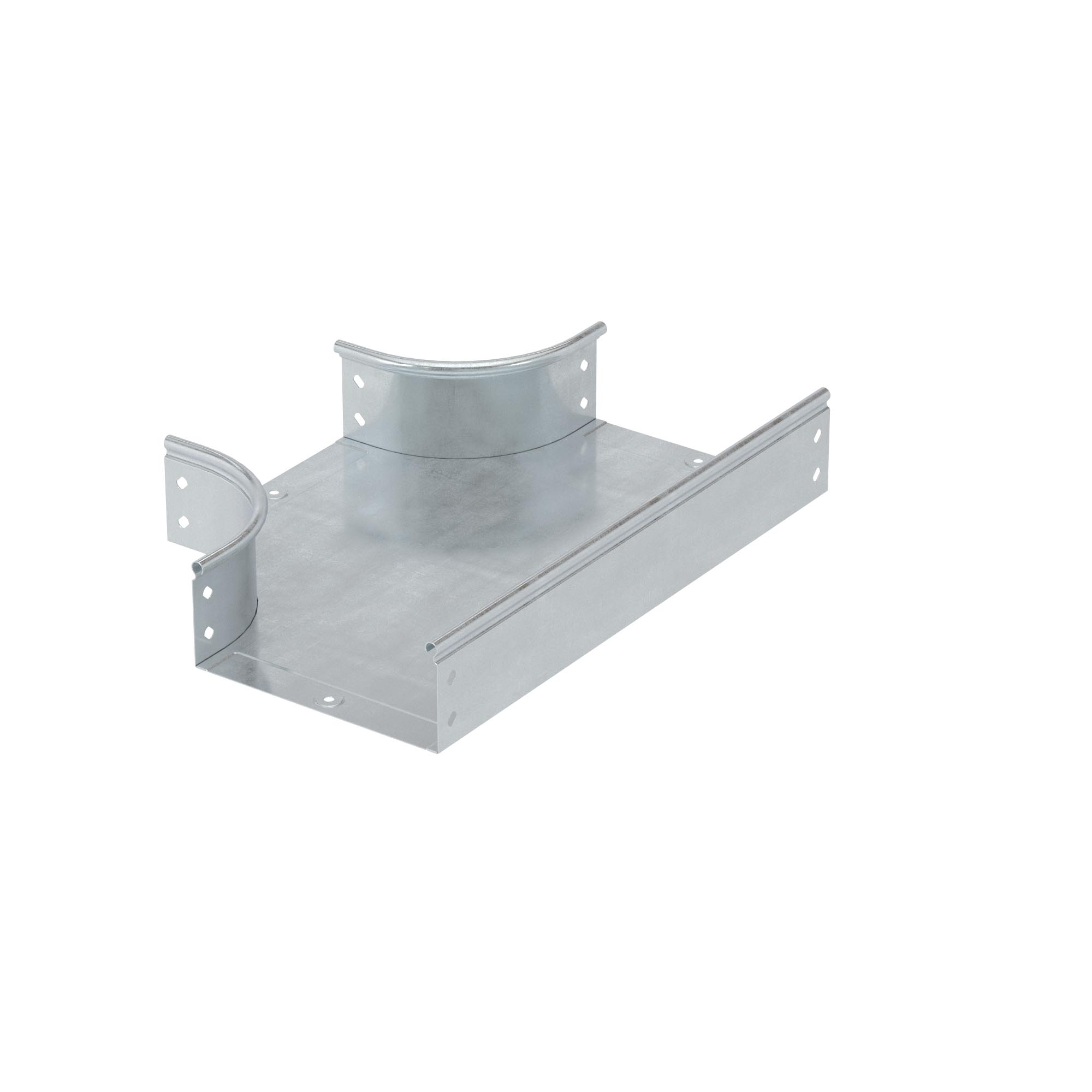

DPT T-tapper 500x80 included with fasteners (joint plates GTO, screws, nuts)
Code: 36147K
DPT T-tapper 500x80 included with fasteners (joint plates GTO, screws, nuts)
Code: 36147K
Construction type | T-piece horizontal |
Material quality | Steel |
Material | Steel |
Inner radius, mm | 100 |
Cable tray width, mm | 500 |
Cable tray height, mm | 80 |
NATO-mounting holes | Yes |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Model | Included connector |
Surface protection | Sendzimir galvanized |
Product type | System accessories |
Type of accessories | Т-branch |
Height | 80 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 500 mm |
Kit accessory’s structure
Code | Name | Quantity |
37303 | Joint Plate h. 80 | 6 pcs |
37501 | Copper earthing palte for equipotential connection CU | 3 pcs |
CM010610 | Square neck bolt М6х10 | 30 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 30 pcs |

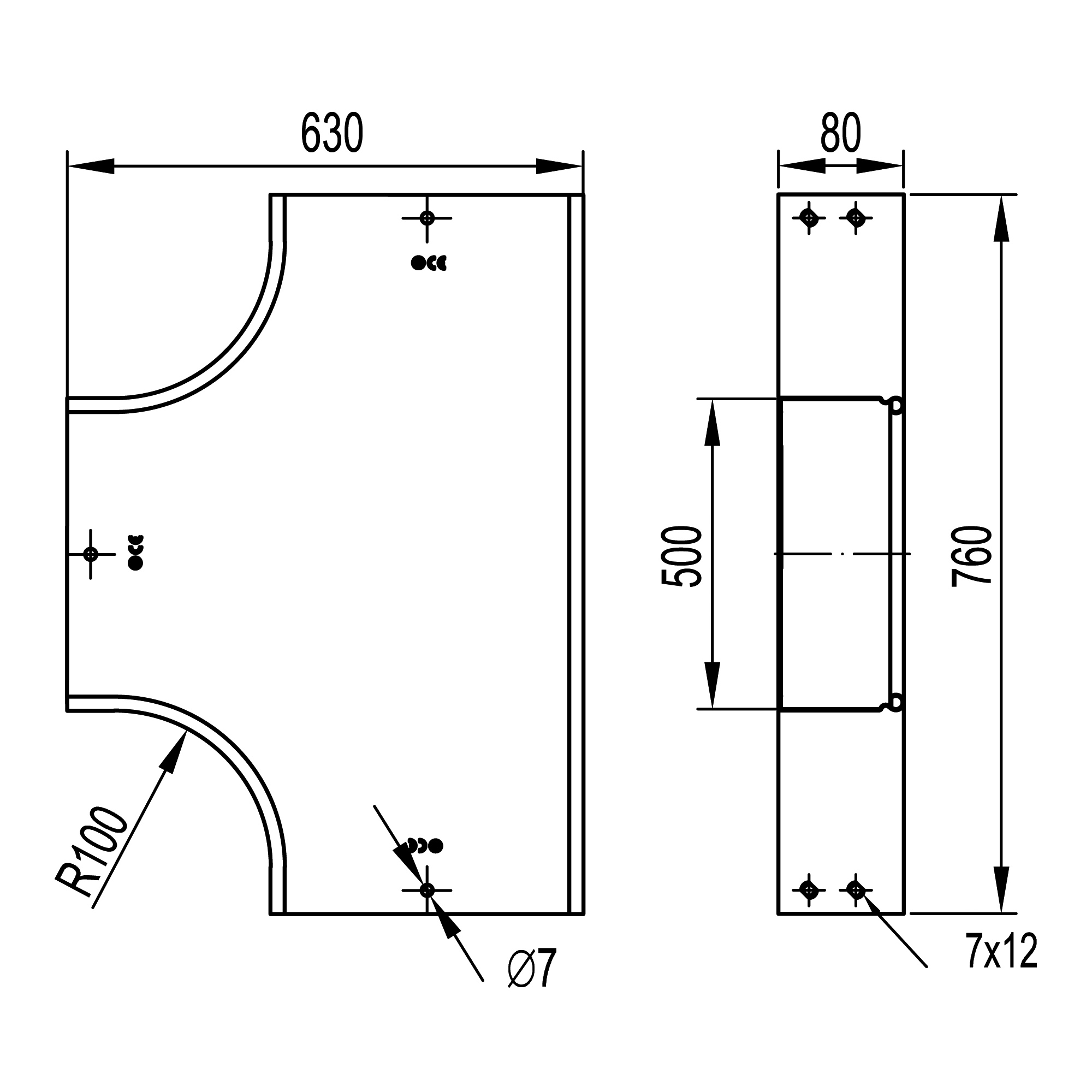

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
