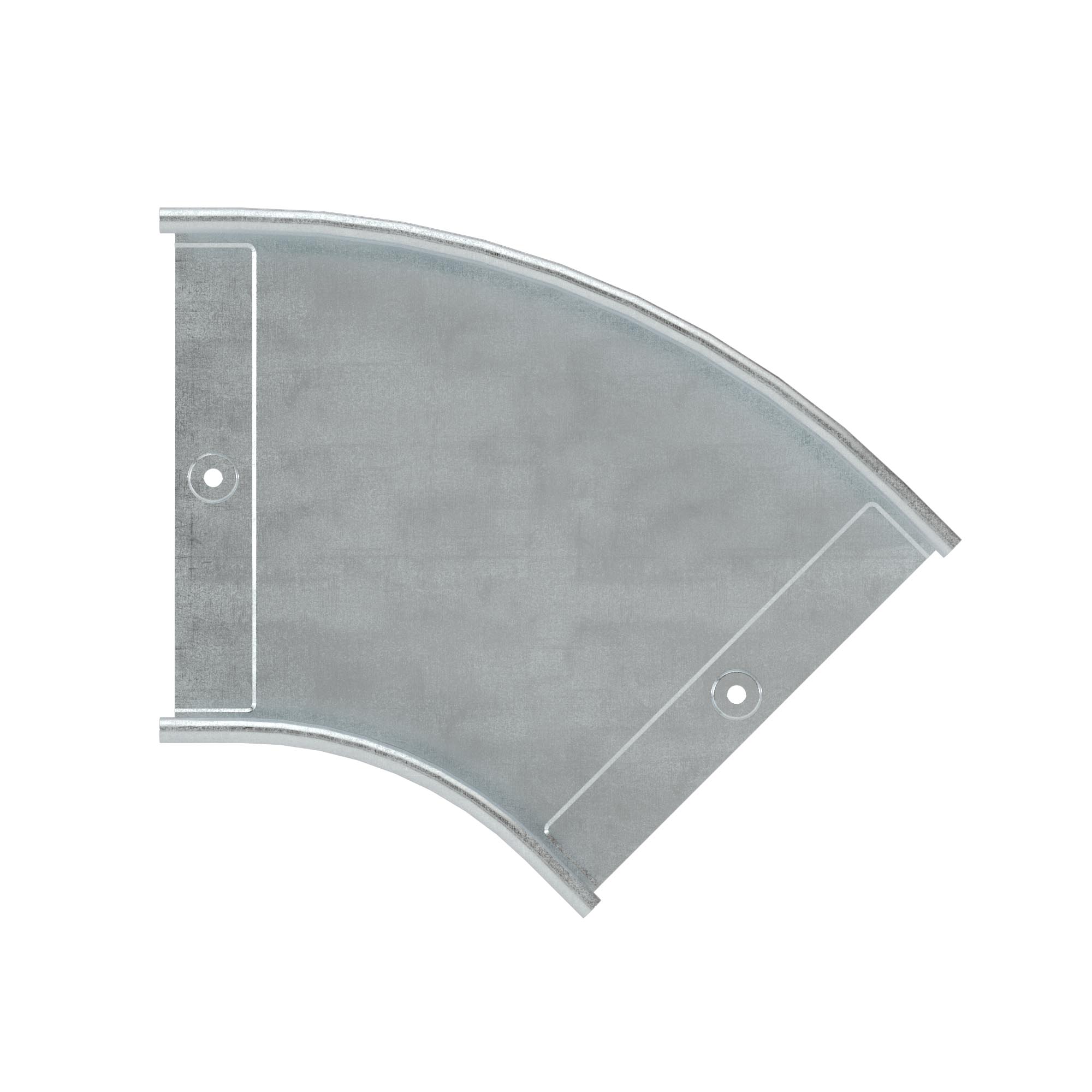

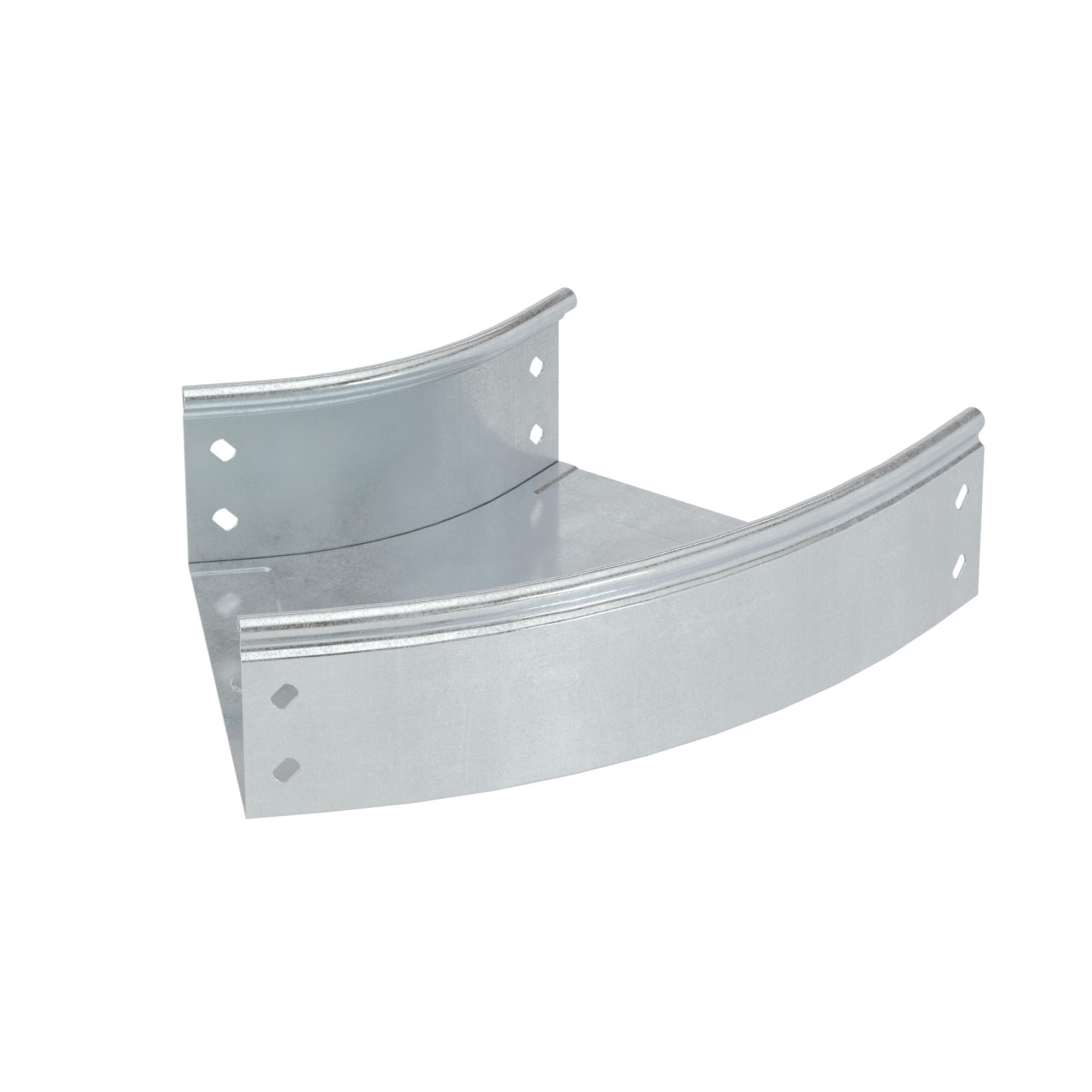

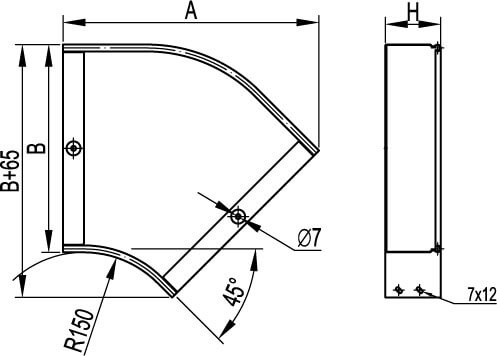

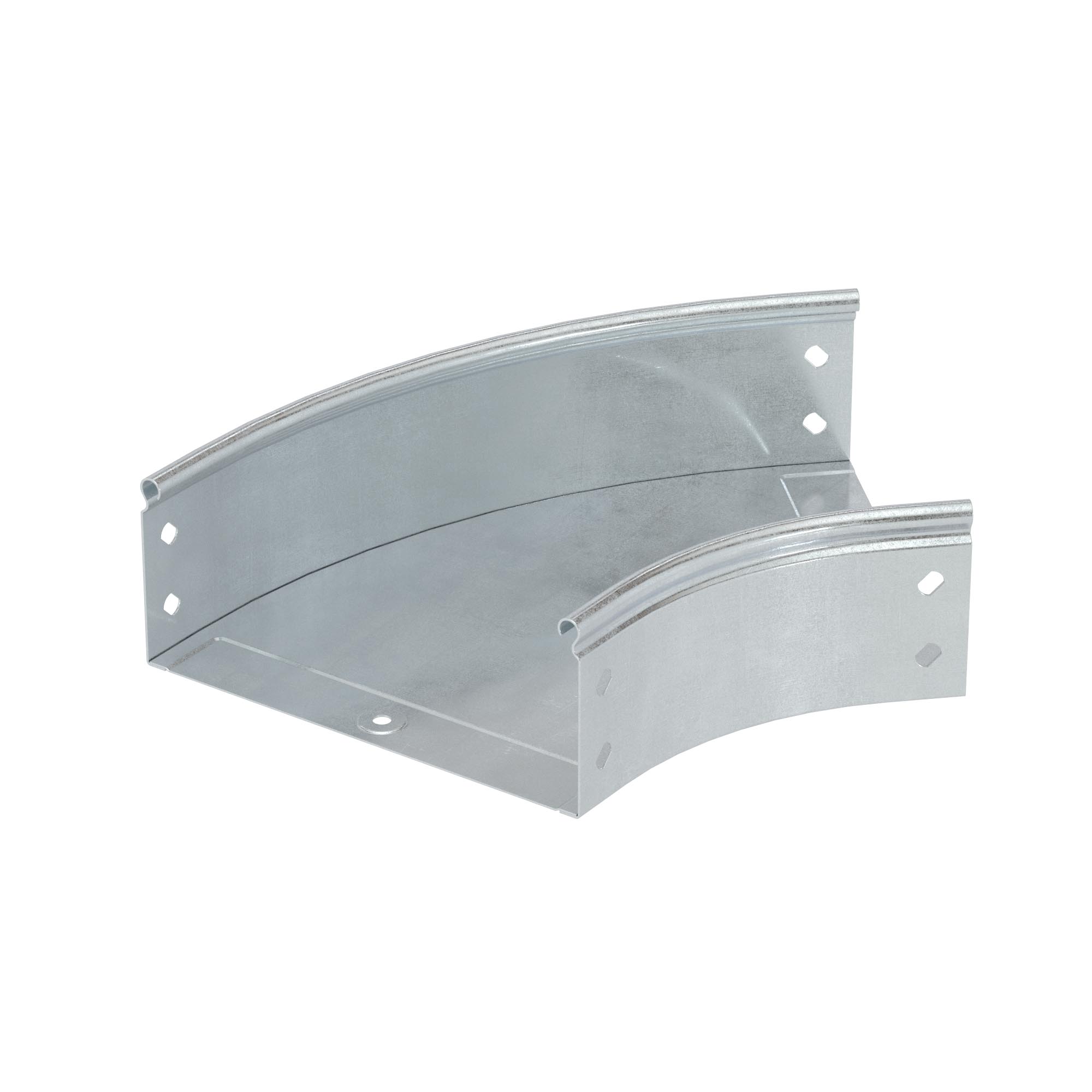

CPO 45 horizontal angle 200x50 included with fasteners (joint plates GTO, screws, nuts)

Code: 36064K
Colour Light grey
Model Included connector
Surface protection Sendzimir galvanized
Material thickness, mm 0.8
Deflection (angle) 45°
Side wall perforation No
Material quality Other
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 150
Cable tray width, mm 200
Cable tray height, mm 50
Change of direction Horizontal
NATO-mounting holes No
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
Seria Name STEP SAT
S5 Combitech - metal sheet trays
