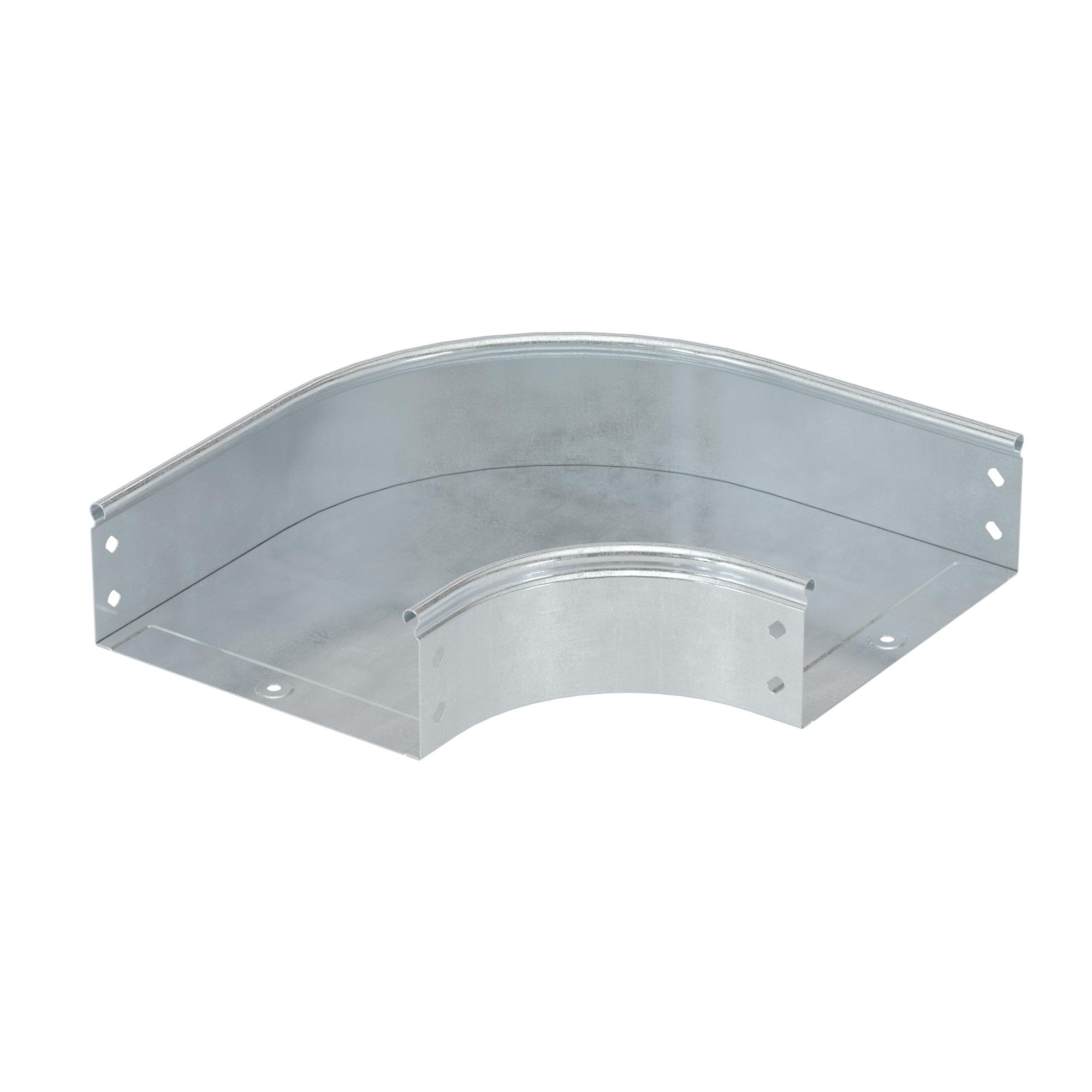

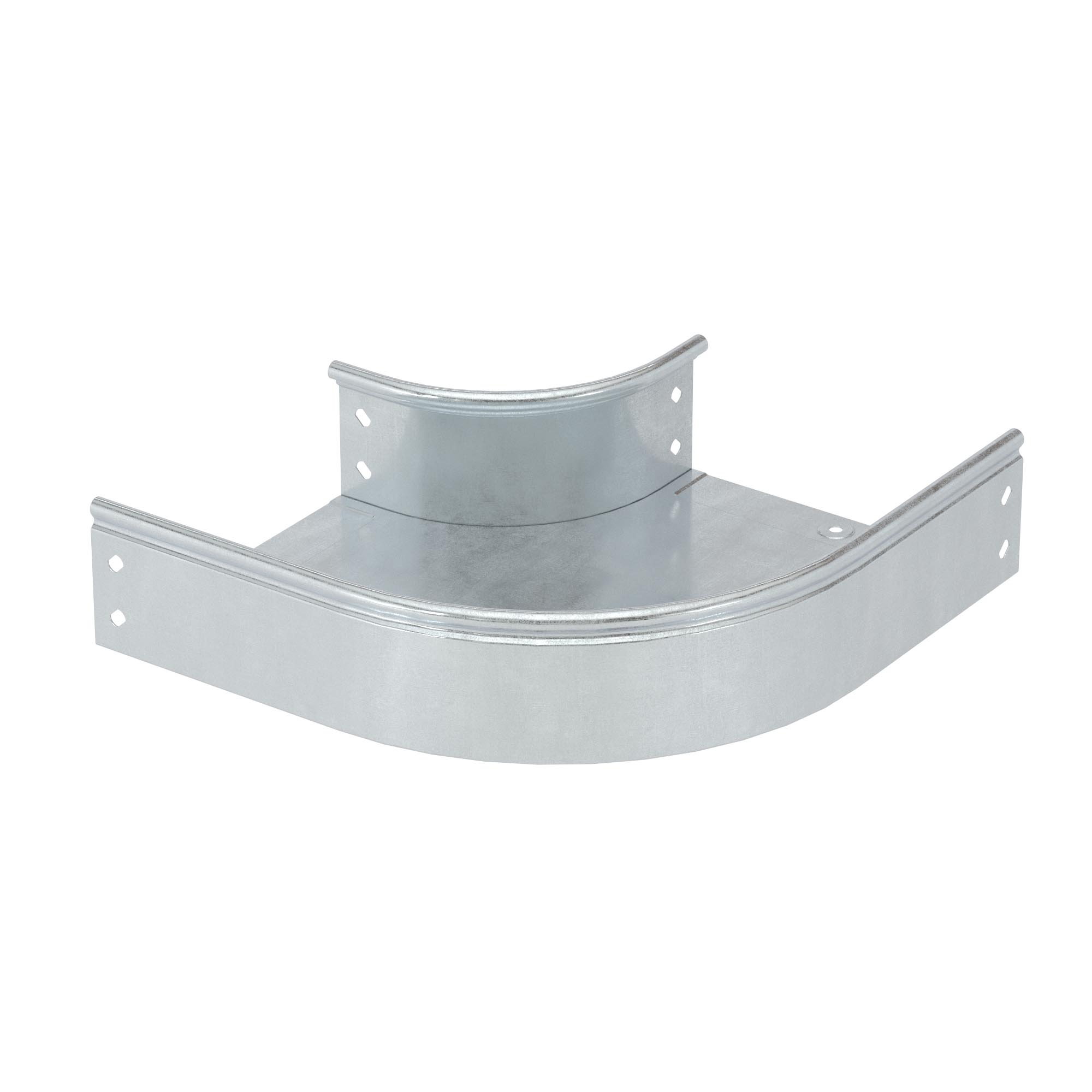

CPO 90 horizontal angle100x80 included with fasteners (joint plates GTO, screws, nuts)
Code:
36022K
CPO 90 horizontal angle100x80 included with fasteners (joint plates GTO, screws, nuts)
Code:
36022K
Colour | Light grey |
Model | Included connector |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 0.8 |
Deflection (angle) | 90° |
Side wall perforation | Yes |
Material quality | Steel |
Material | Steel |
Mounting perforation in bottom | Yes |
Inner radius, mm | 100 |
Cable tray width, mm | 100 |
Cable tray height, mm | 80 |
Change of direction | Horizontal |
Suitable for circuit integrity | Yes |
With cover | No |
Bend model | Smooth bend |
Product type | System accessories |
Type of accessories | 90º Horizontal bend |
Height | 80 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 100 mm |
Kit accessory’s structure
Code | Name | Quantity |
37303 | Joint Plate h. 80 | 4 pcs |
37501 | Copper earthing palte for equipotential connection CU | 2 pcs |
CM010610 | Square neck bolt М6х10 | 20 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 20 pcs |
The accompanying goods

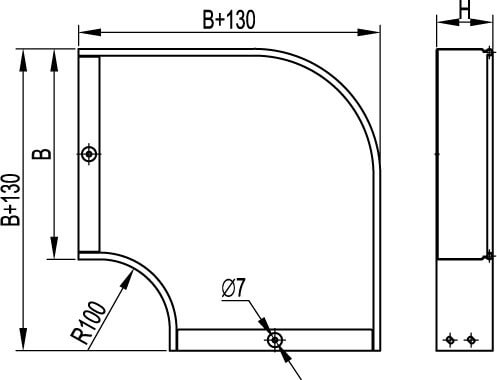

Drawings
Seria | Name | SAT | STEP |
---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
Certificates
Name | Document |
---|---|
