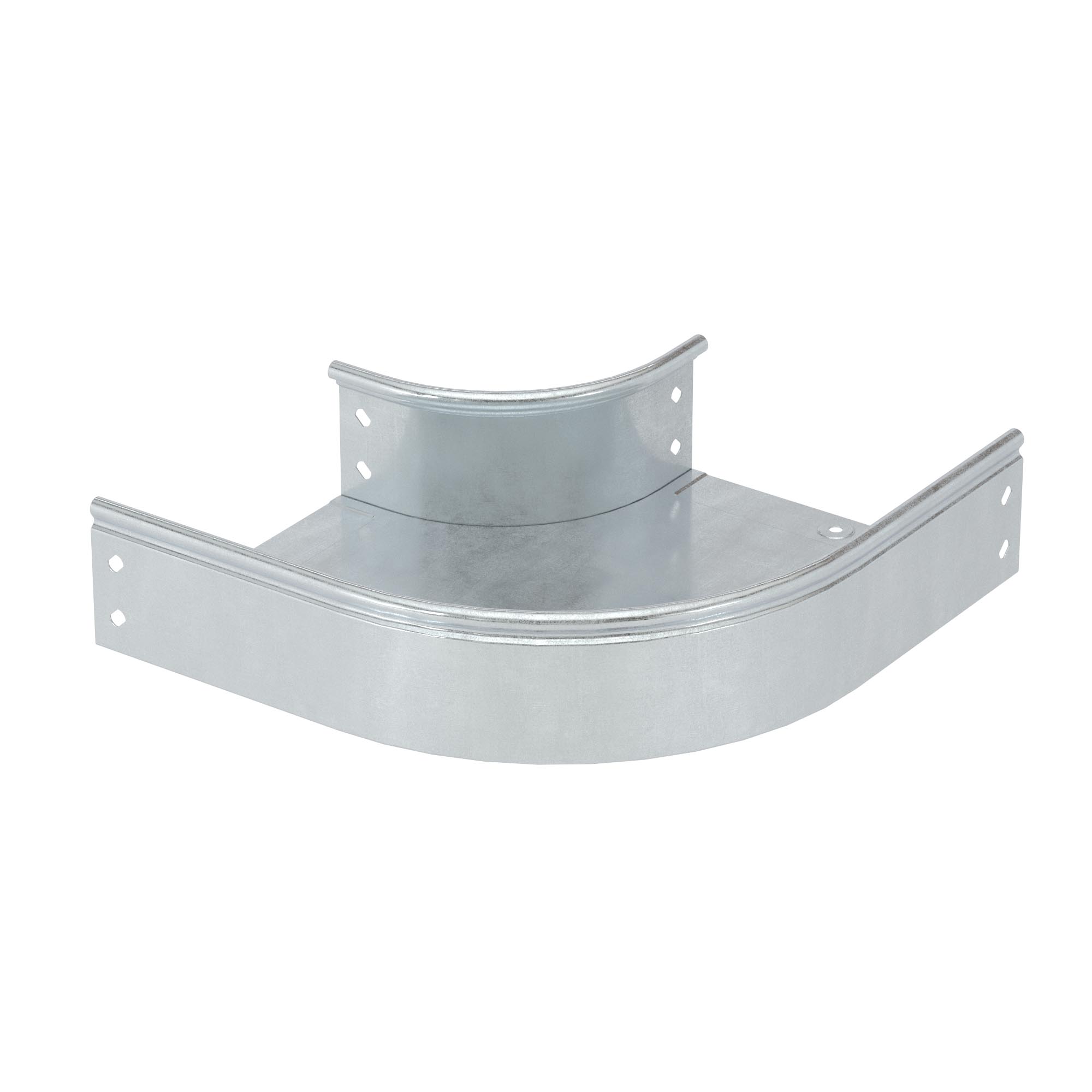

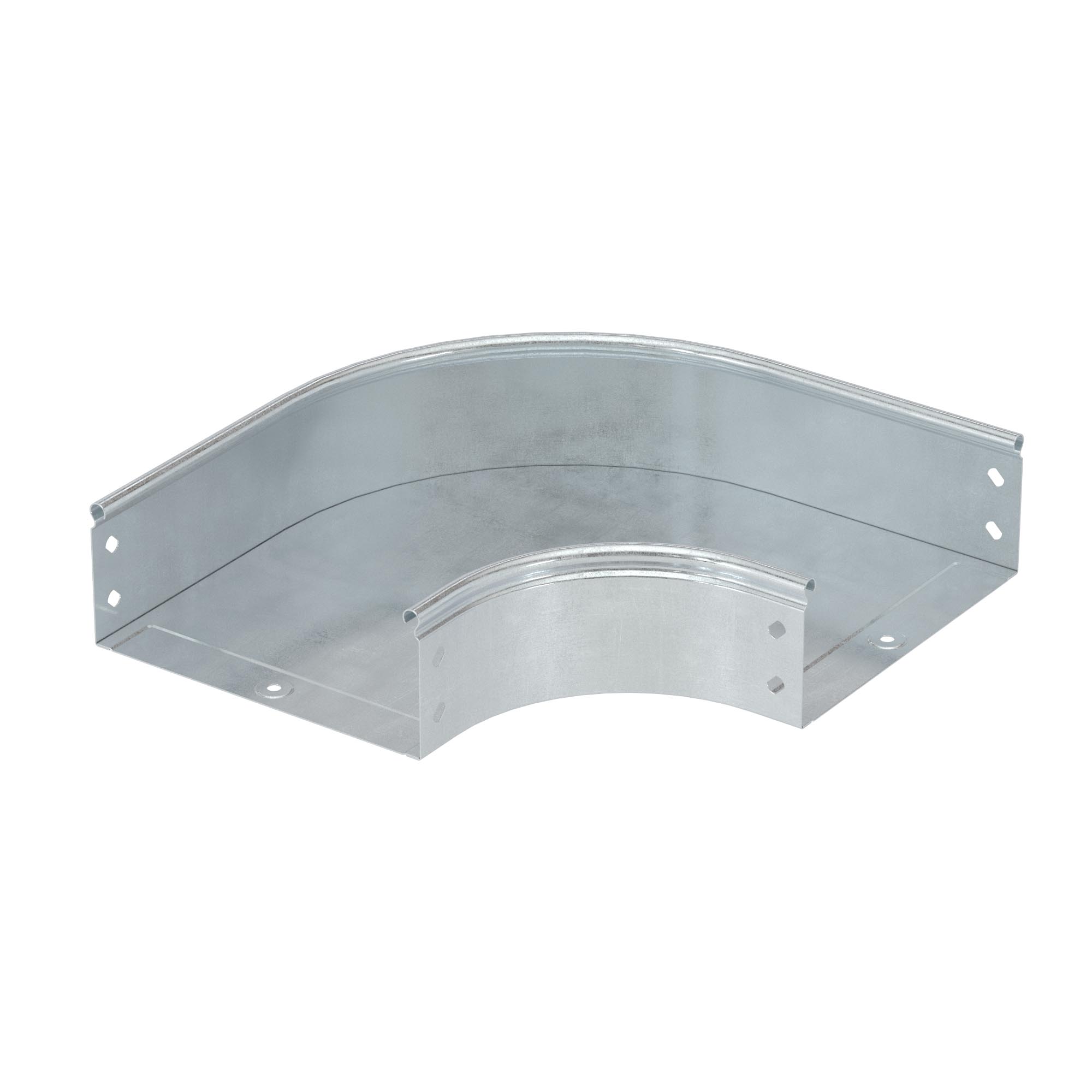

CPO 90 horizontal angle 500x50 included with fasteners (joint plates GTO, screws, nuts)

Code: 36007K

CPO 90 horizontal angle 500x50 included with fasteners (joint plates GTO, screws, nuts)

Code: 36007K
Colour Light grey
Model Included connector
Surface protection Sendzimir galvanized
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation Yes
Material quality Steel
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 100
Cable tray width, mm 500
Cable tray height, mm 50
Change of direction Horizontal
NATO-mounting holes Yes
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
Product type System accessories
Type of accessories 90º Horizontal bend
Width 500 mm
Height 50 mm
Material Pre-galvanized steel
The accompanying goods

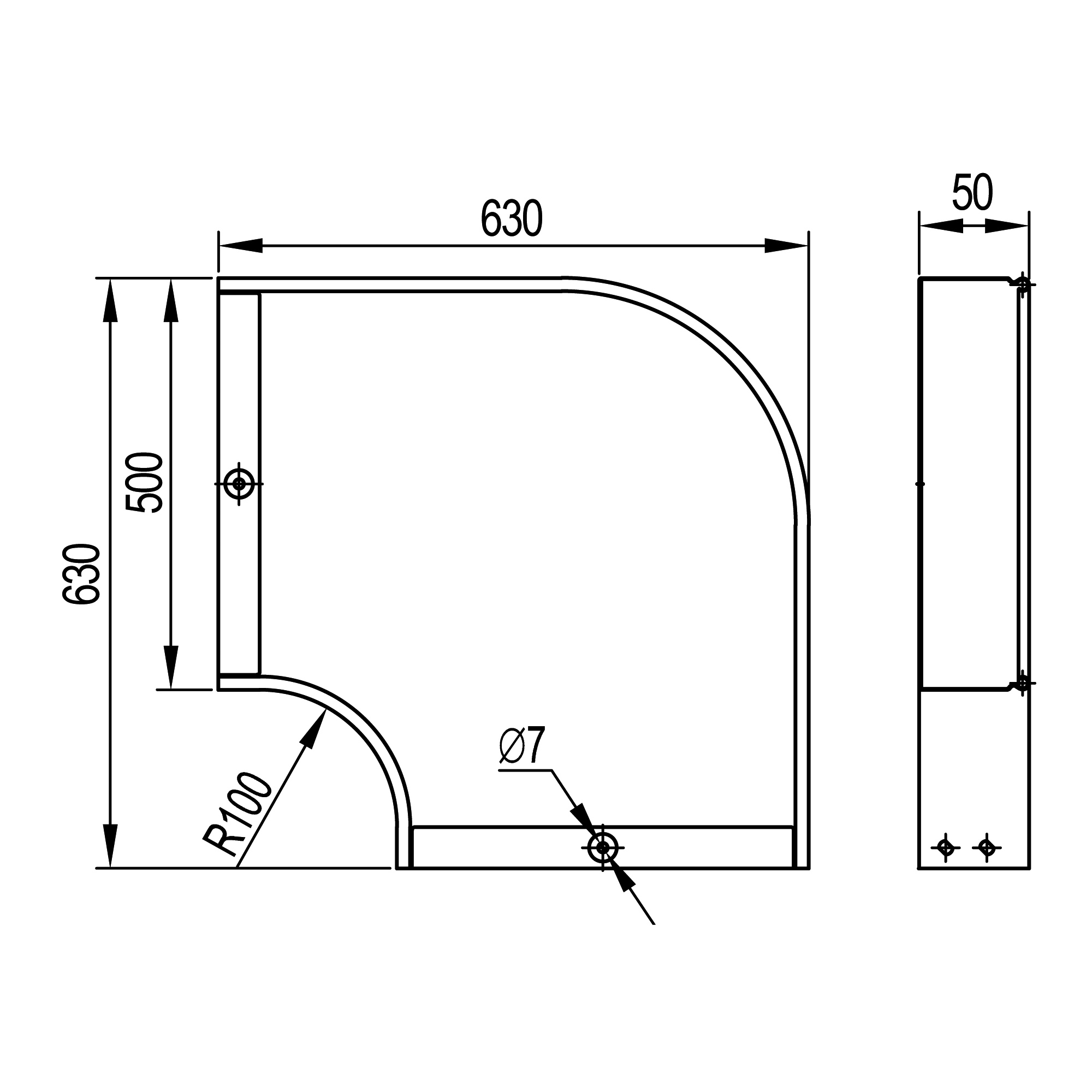

Drawings
Seria Name SAT STEP
Metal sheet trays - " S5 Combitech"
Metal sheet trays - " S5 Combitech"
Certificates
Name Document
