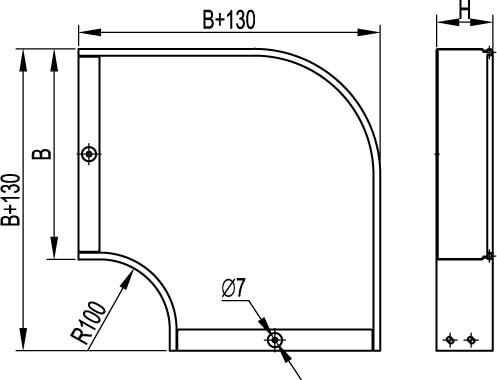

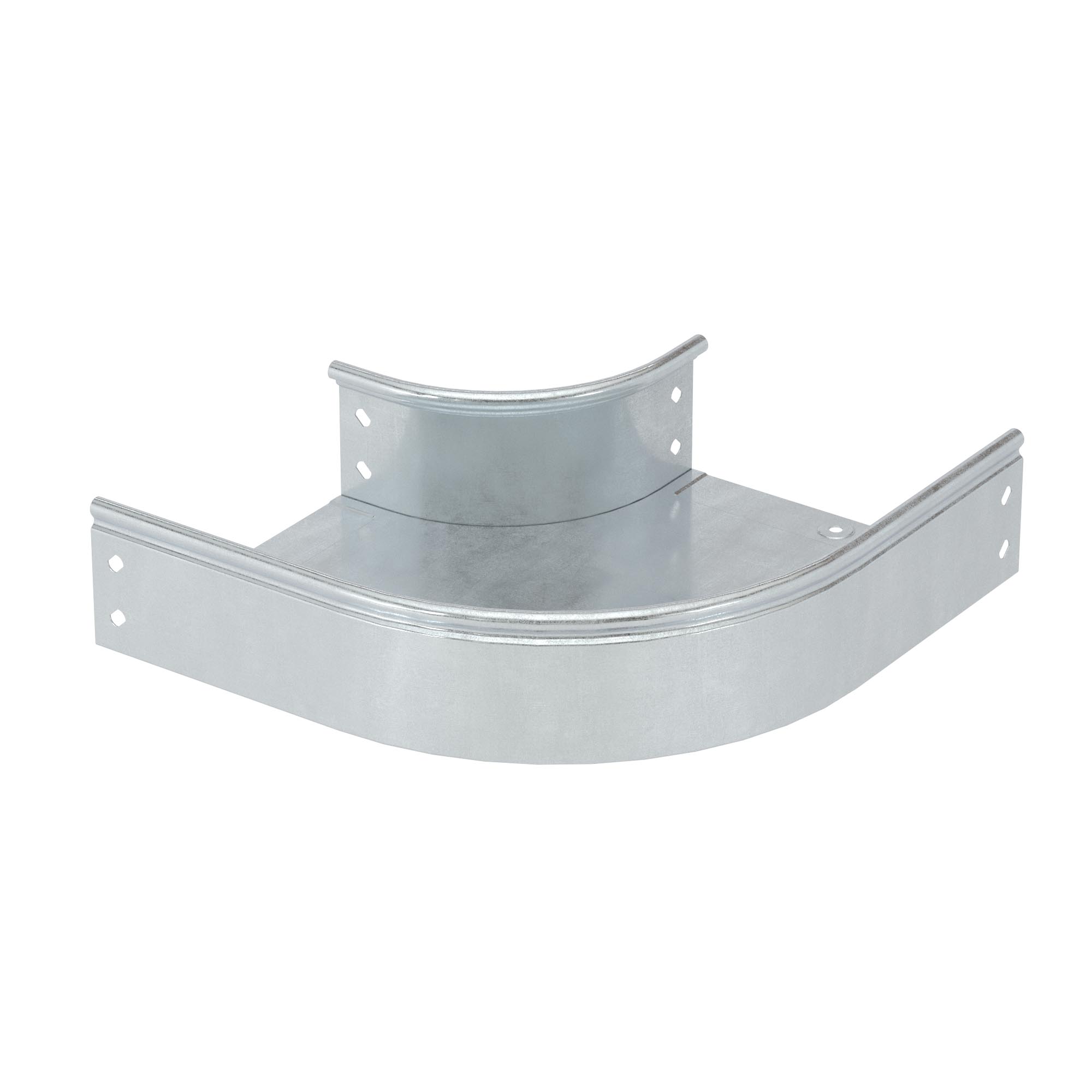

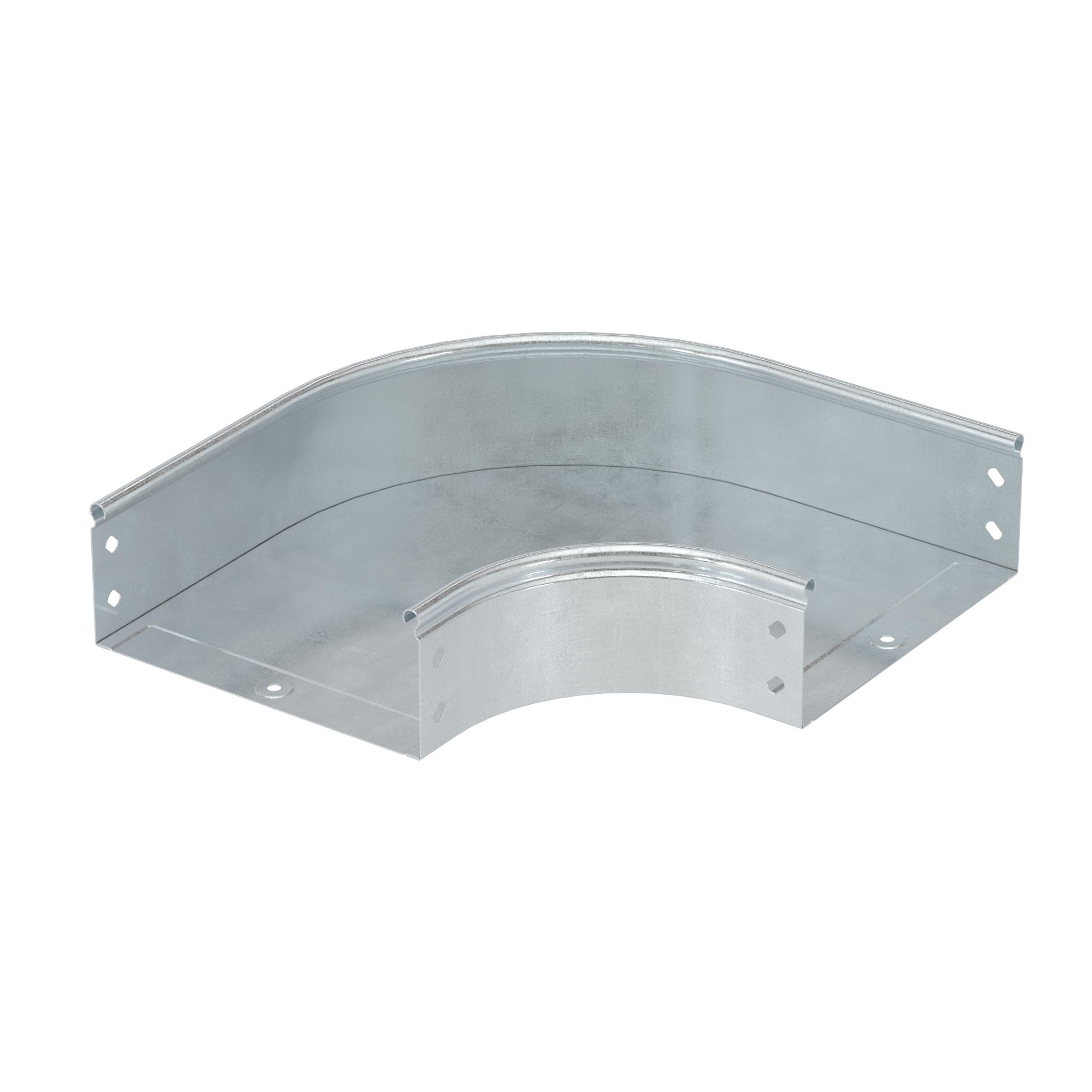

CPO 90 horizontal angle 50x50 included with fasteners (joint plates GTO, screws, nuts)

Code: 36000K
CPO 90 horizontal angle 50x50 included with fasteners (joint plates GTO, screws, nuts)
CPO 90 horizontal angle 50x50 included with fasteners (joint plates GTO, screws, nuts)
Colour Light grey
Model Included connector
Surface protection Sendzimir galvanized
Material thickness, mm 0.8
Deflection (angle) 90°
Side wall perforation No
Material quality Other
Material Steel
Mounting perforation in bottom Yes
Inner radius, mm 100
Cable tray width, mm 50
Cable tray height, mm 50
Change of direction Horizontal
NATO-mounting holes No
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
Kit accessory’s structure

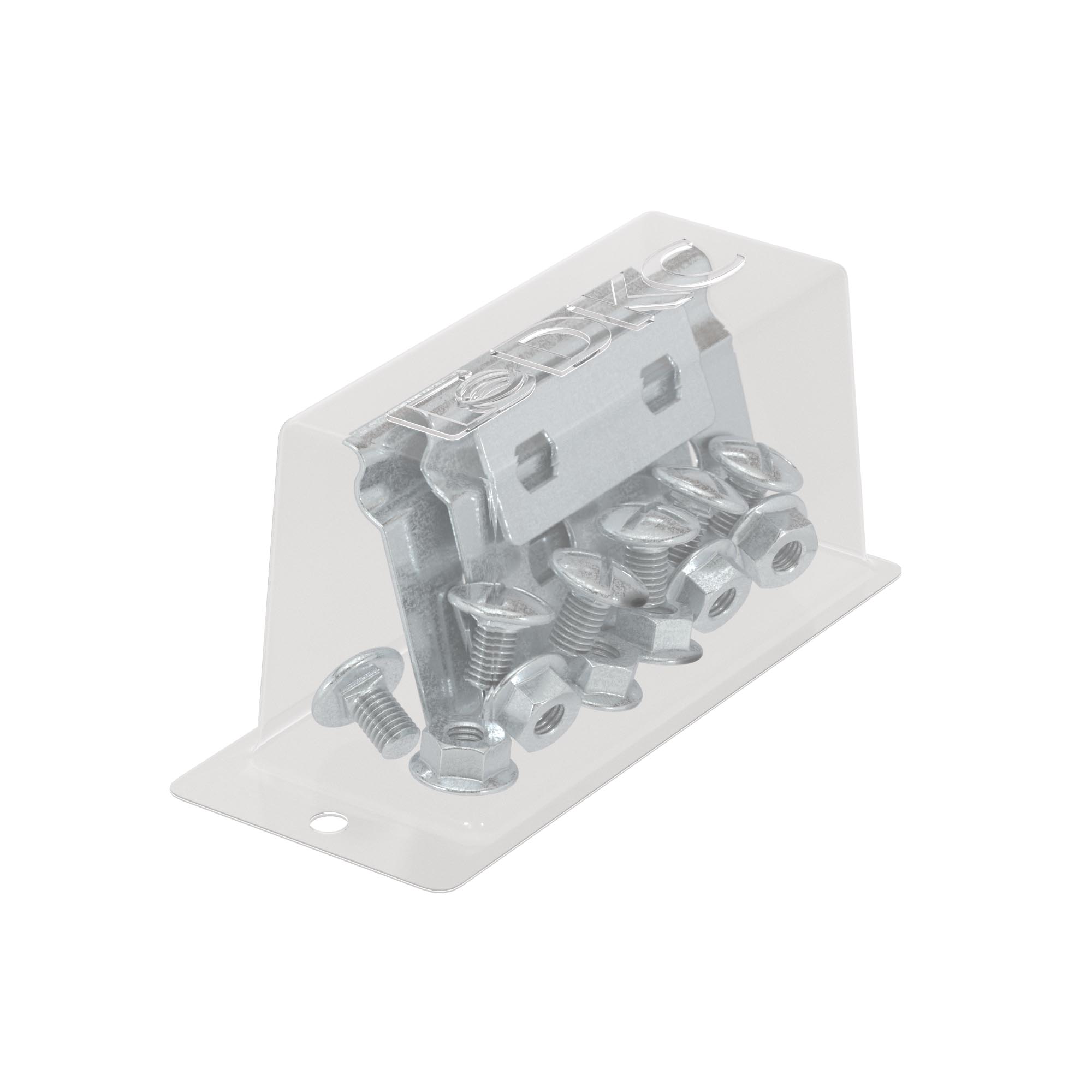

Code Name Quantity
37301 Joint Plate h. 50 4 pcs
37501 Copper earthing palte for equipotential connection CU 2 pcs
CM010610 Square neck bolt М6х10 12 pcs
CM100600 Hexagon nut with serrate flange М6 12 pcs
Analogs
CPO 90 horizontal angle 50x50 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
CPO 90 horizontal angle 50x50 included with fasteners (joint plates GTO, screws, nuts), hot galvanizing method
Code: 36000KHDZ
CPO 90 horizontal angle 50x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
CPO 90 horizontal angle 50x50 included with fasteners (joint plates GTO, screws, nuts), zinc lamellar coating
Code: 36000KZL
