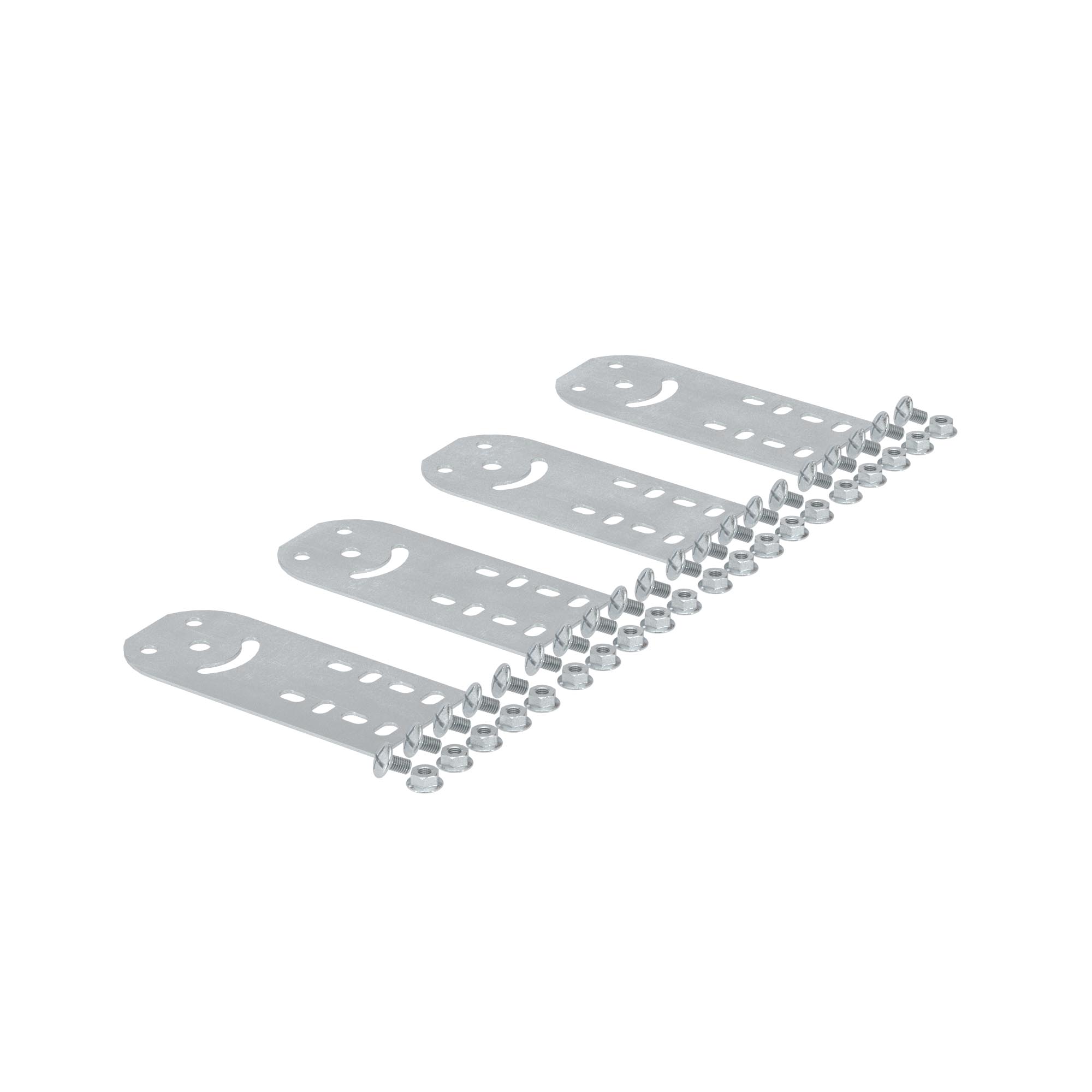

Articulated Vertical Joint h. 100, 4 pcs. , included with fasteners (screws, nuts)
Code: 30015K
Articulated Vertical Joint h. 100, 4 pcs. , included with fasteners (screws, nuts)
Code: 30015K
| Surface protection | Sendzimir galvanized |
| Material | Steel |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Suitable for cable management system height, mm | 100 |
| Hinged joint horizontal | Yes |
| Suitable for cable management system width, mm | 50...600 |
| Length, mm | 140 |
| Stainless steel, pickled | Yes |
| Suitable for circuit integrity | Yes |
| Colour | Light grey |
| Material quality | Steel |
| Model | Joint clip bar |
| Type of connection | Screw connector |
| Product type | Mounting accessories |
| Type of accessories | Mounting accessories |
| Height | 100 mm |
| Material | Pre-galvanized |
Kit accessory’s structure
| Code | Name | Quantity |
| CM010610 | Square neck bolt М6х10 | 20 pcs |
| CM100600 | Hexagon nut with serrate flange М6 | 20 pcs |
