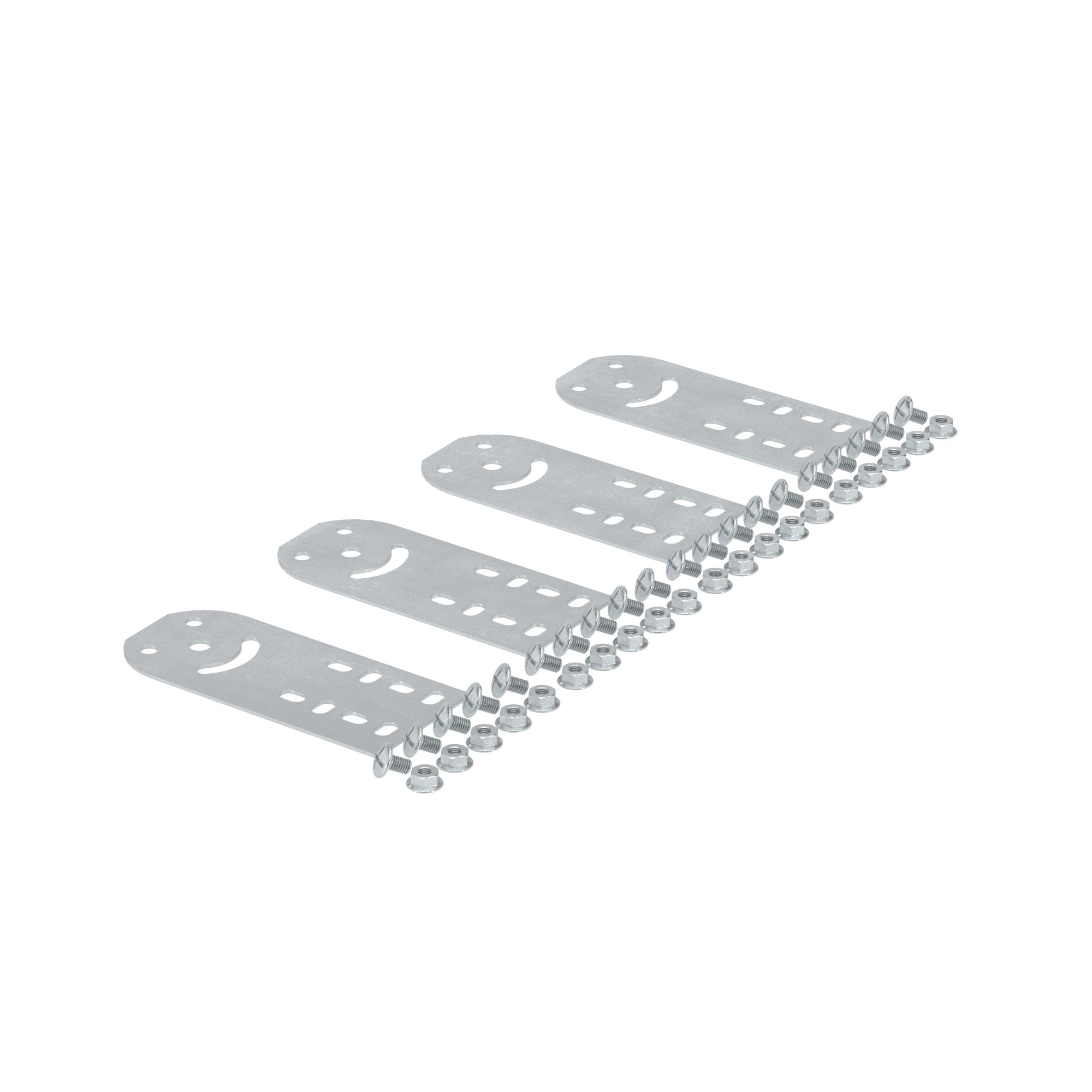

Articulated Vertical Joint h. 80, 4 pcs. , included with fasteners (screws, nuts)
Code: 30014K
Articulated Vertical Joint h. 80, 4 pcs. , included with fasteners (screws, nuts)
Code: 30014K
Surface protection | Sendzimir galvanized |
Material | Steel |
Suitable for cable ladder | Yes |
Suitable for cable tray | Yes |
Suitable for cable management system height, mm | 80 |
Hinged joint horizontal | Yes |
Suitable for cable management system width, mm | 50...600 |
Length, mm | 140 |
Stainless steel, pickled | Yes |
Suitable for circuit integrity | Yes |
Colour | Light grey |
Material quality | Steel |
Model | Joint clip bar |
Type of connection | Screw connector |
Product type | Mounting accessories |
Type of accessories | Mounting accessories |
Height | 80 mm |
Material | Pre-galvanized steel |
Kit accessory’s structure
Code | Name | Quantity |
CM010610 | Square neck bolt М6х10 | 20 pcs |
CM100600 | Hexagon nut with serrate flange М6 | 20 pcs |

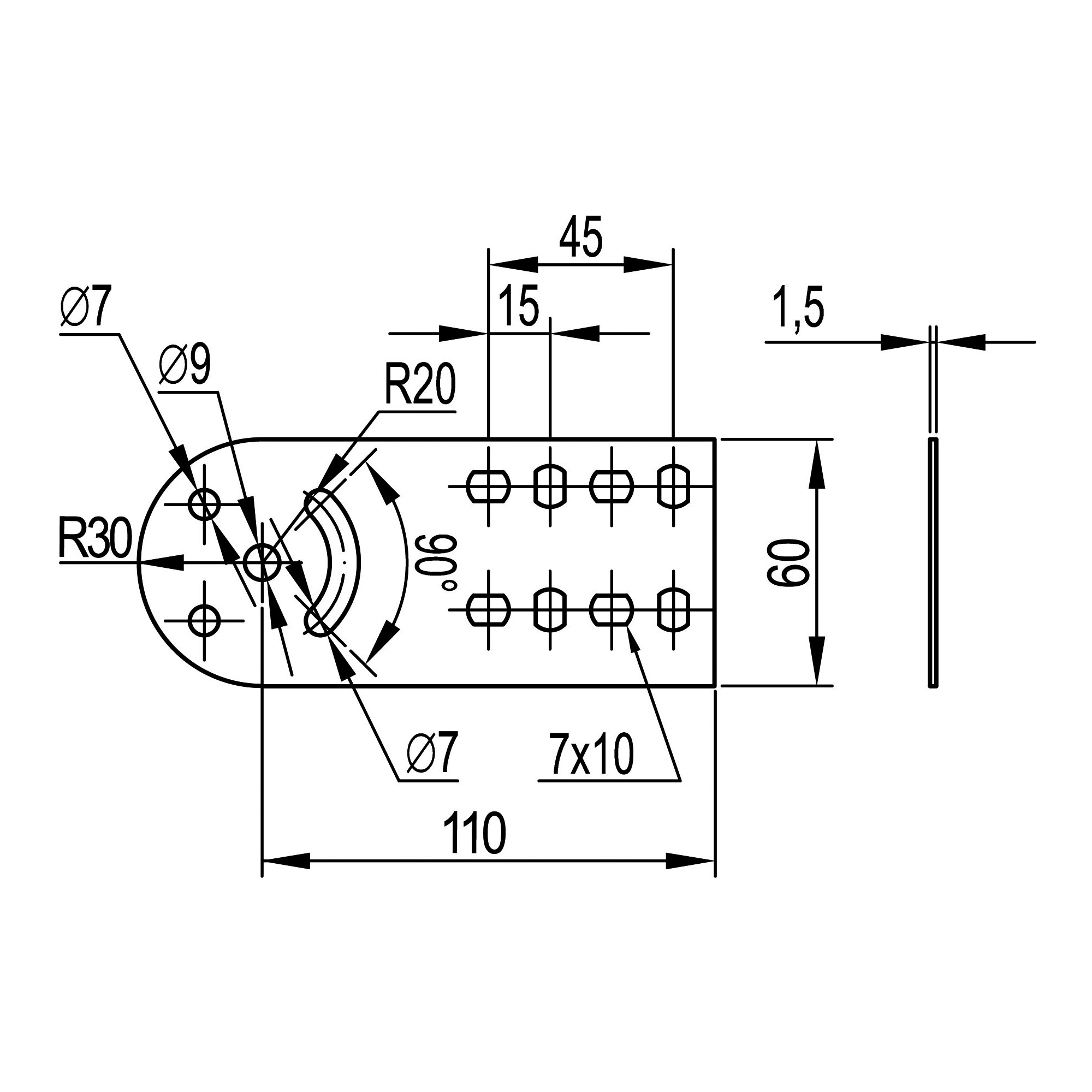

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
