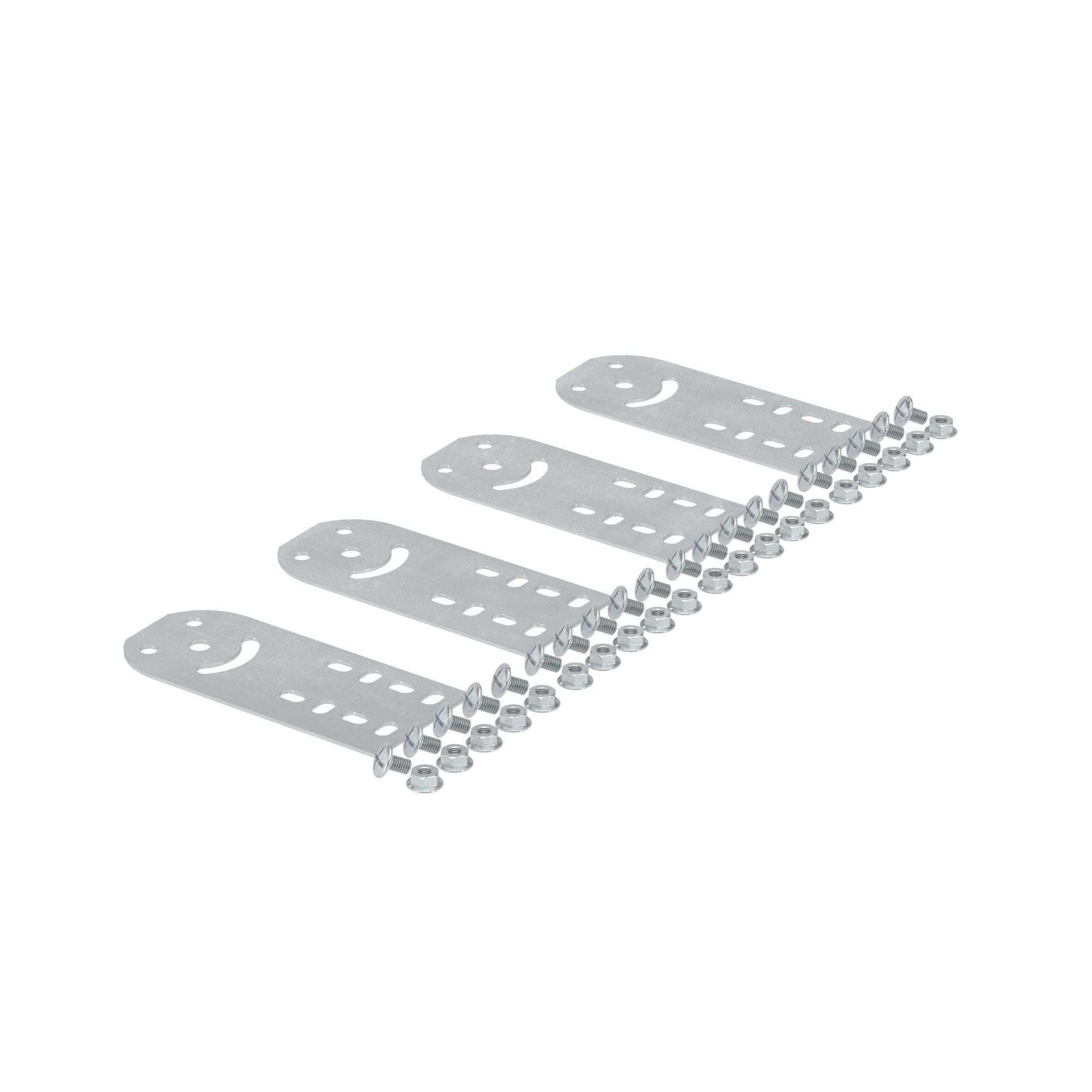

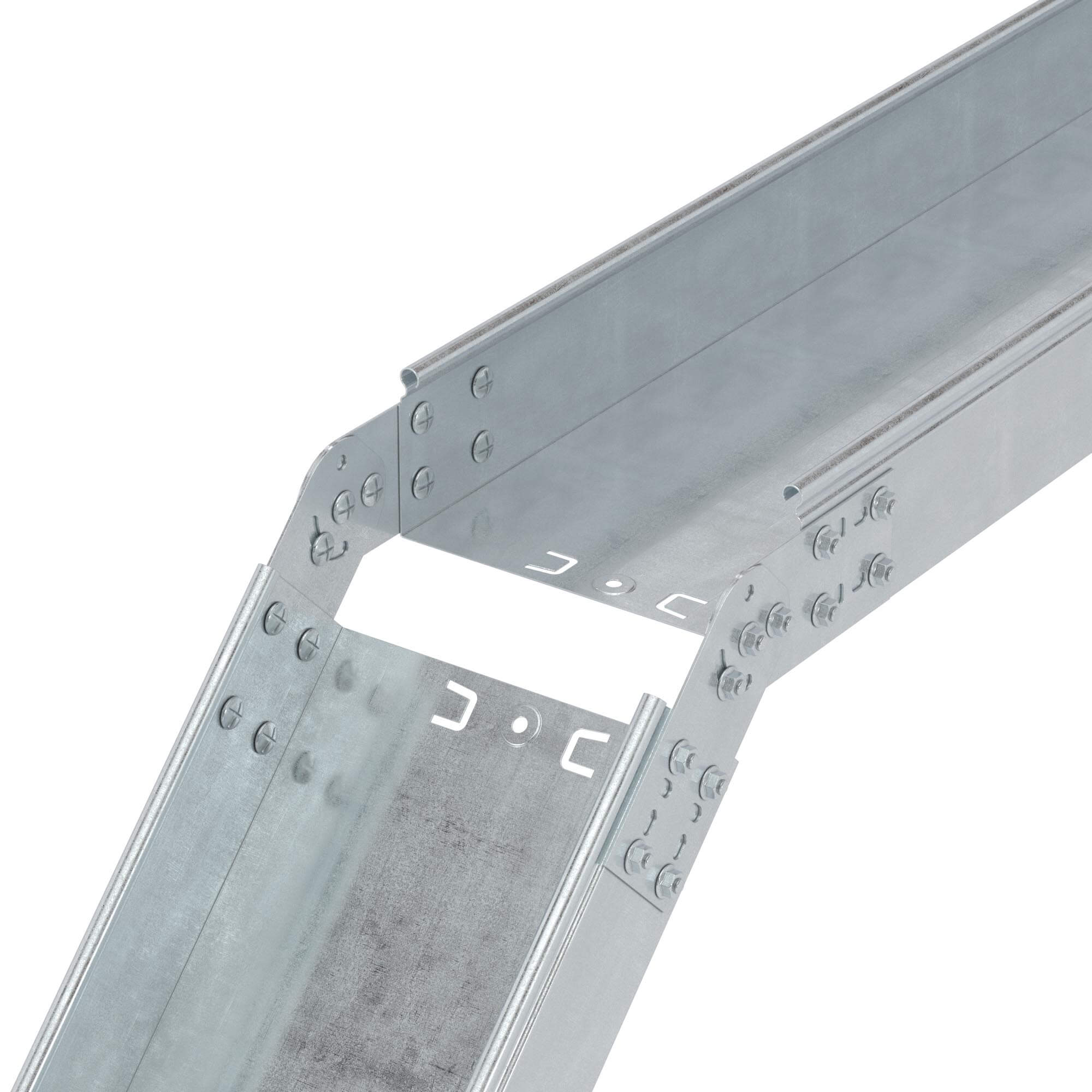

Articulated Vertical Joint h. 50, 4 pcs. , included with fasteners (screws, nuts)

Code: 30013K
Articulated Vertical Joint h. 50, 4 pcs. , included with fasteners (screws, nuts)
Articulated Vertical Joint h. 50, 4 pcs. , included with fasteners (screws, nuts)
Surface protection Sendzimir galvanized
Material quality Other
Material Steel
Suitable for cable ladder Yes
Suitable for cable duct Yes
Suitable for cable management system height, mm 50
Hinged joint horizontal Yes
Suitable for cable management system width, mm 50…600
Type of connection Other
Length, mm 140
Material Pre-galvanized steel
Product type Mounting accessories
Type of accessories Mounting accessories
Height 50 mm
Kit accessory’s structure
Code Name Quantity
CM010610 Square neck bolt М6х10 12 pcs
CM100600 Hexagon nut with serrate flange М6 12 pcs

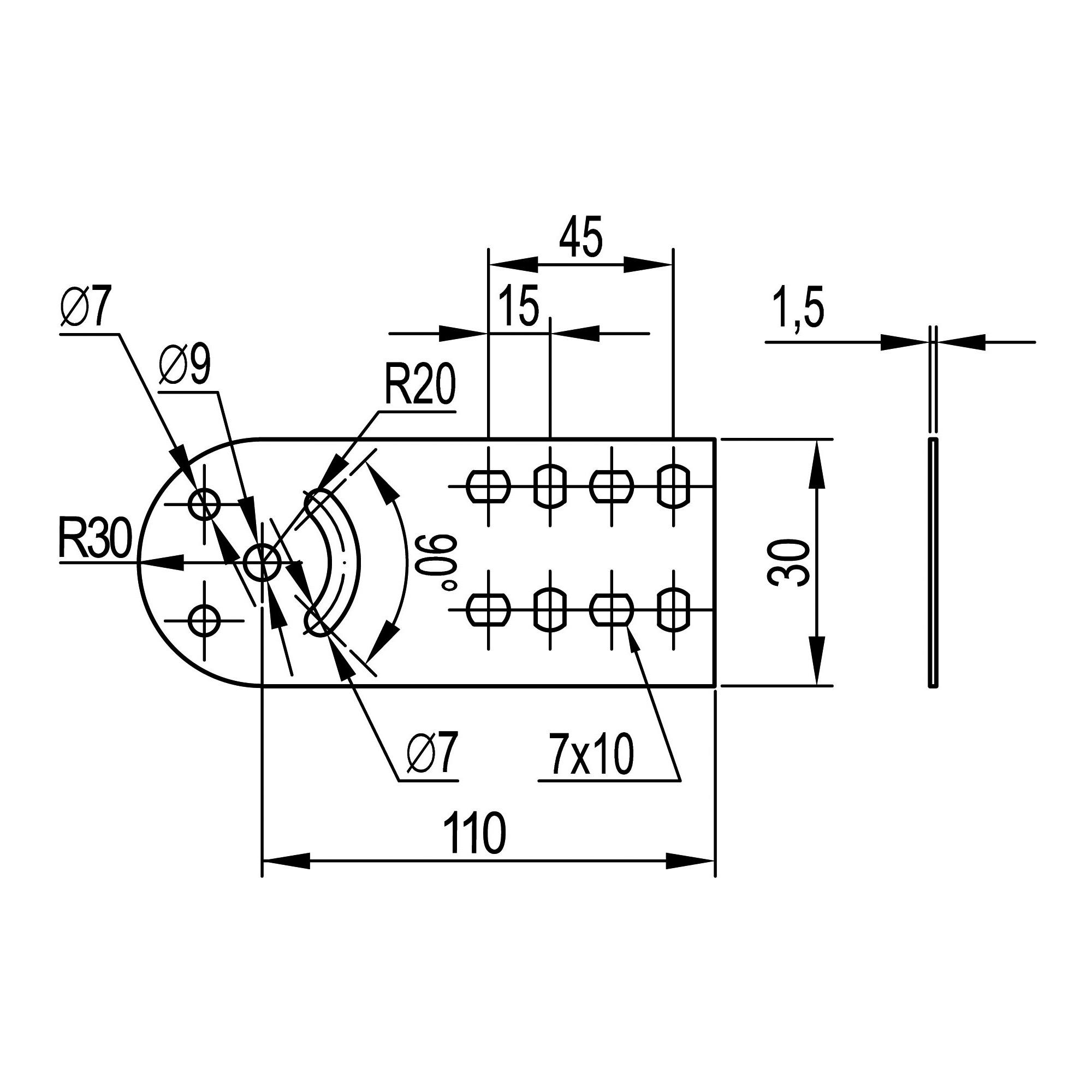

Drawings
