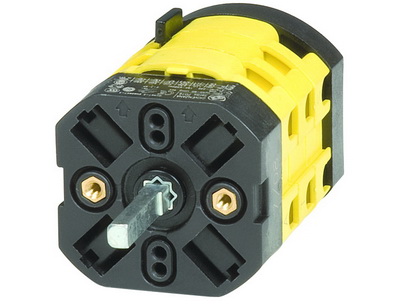

Cam-Switchs for 12 Amp. Schem 04. Mount on DIN
Code:
AS1204D
Code:
AS1204D
Removed from the product range
| Model | Reverser |
| Rated operation power at AC-3, 400 V, kW | 7.5 |
| Rated permanent current Iu, A | 12 |
| Number of poles | 4 |
| With 0 (off) position | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | Yes |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | Yes |
| Complete device in housing | Yes |
| Type of control element | Long turning handle |
| Degree of protection (IP), front side | IP65 |
| With retraction in 0-position | Yes |
| Rated operation current Ie at AC-3, 400 V, A | 4 |
| Product type | Cam switches |
