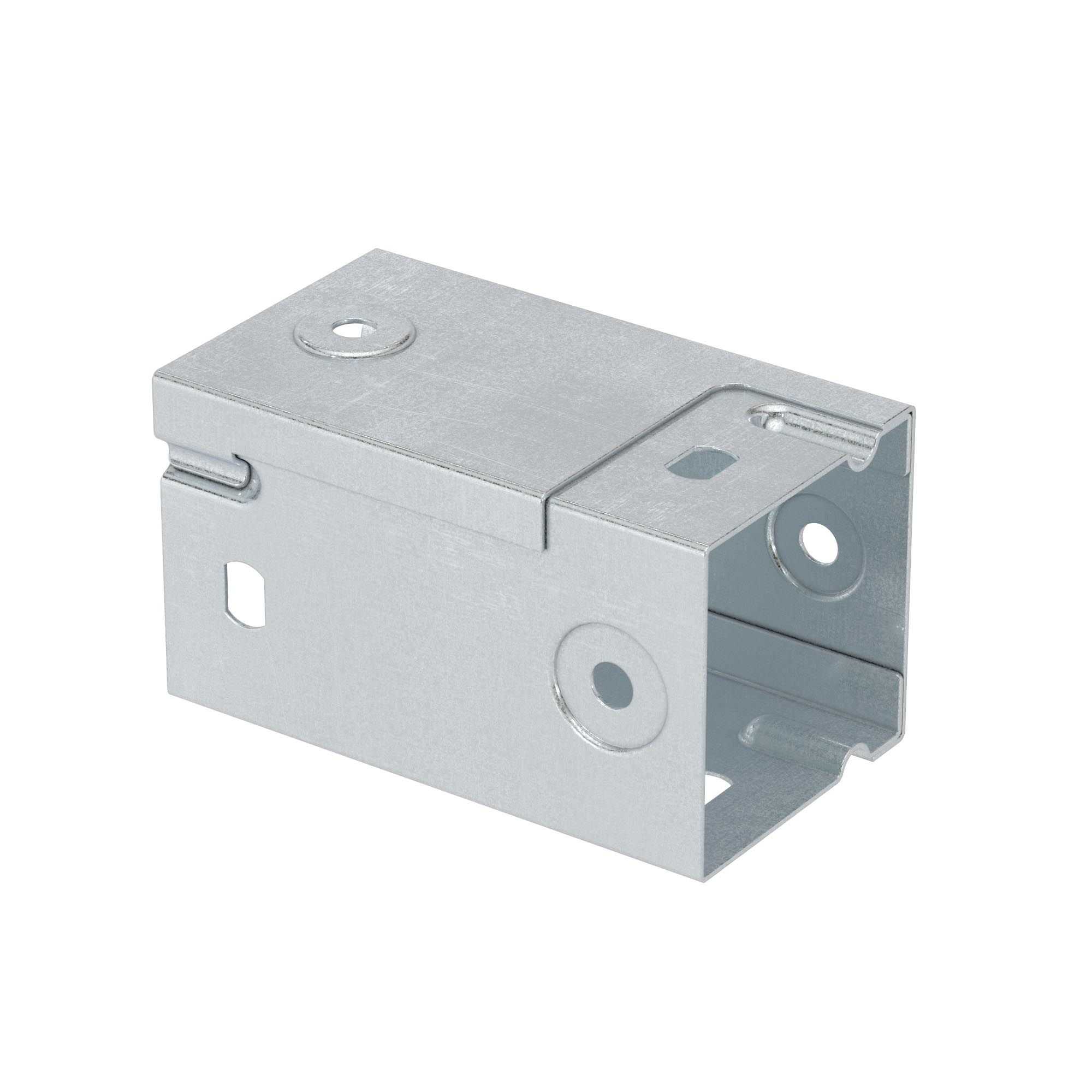

Left plane blind inverter 50x50

Code: 39005
Material PVC
Height, mm 50
Width, mm 50
Thickness of metal sheet, mm 0,8
Colour Light grey
Surface protection Sendzimir galvanized
Height side wall, mm 50
Material quality Other
Material Steel
Cable tray width, mm 50
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No

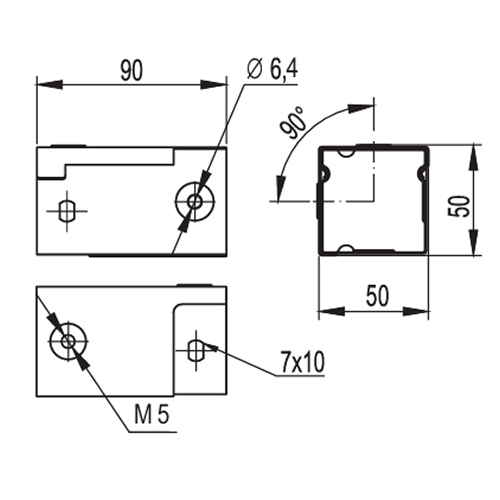

Drawings
Seria Name STEP SAT Intergraph Autodesk Revit DWG (dynamic blocks) AVEVA
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
