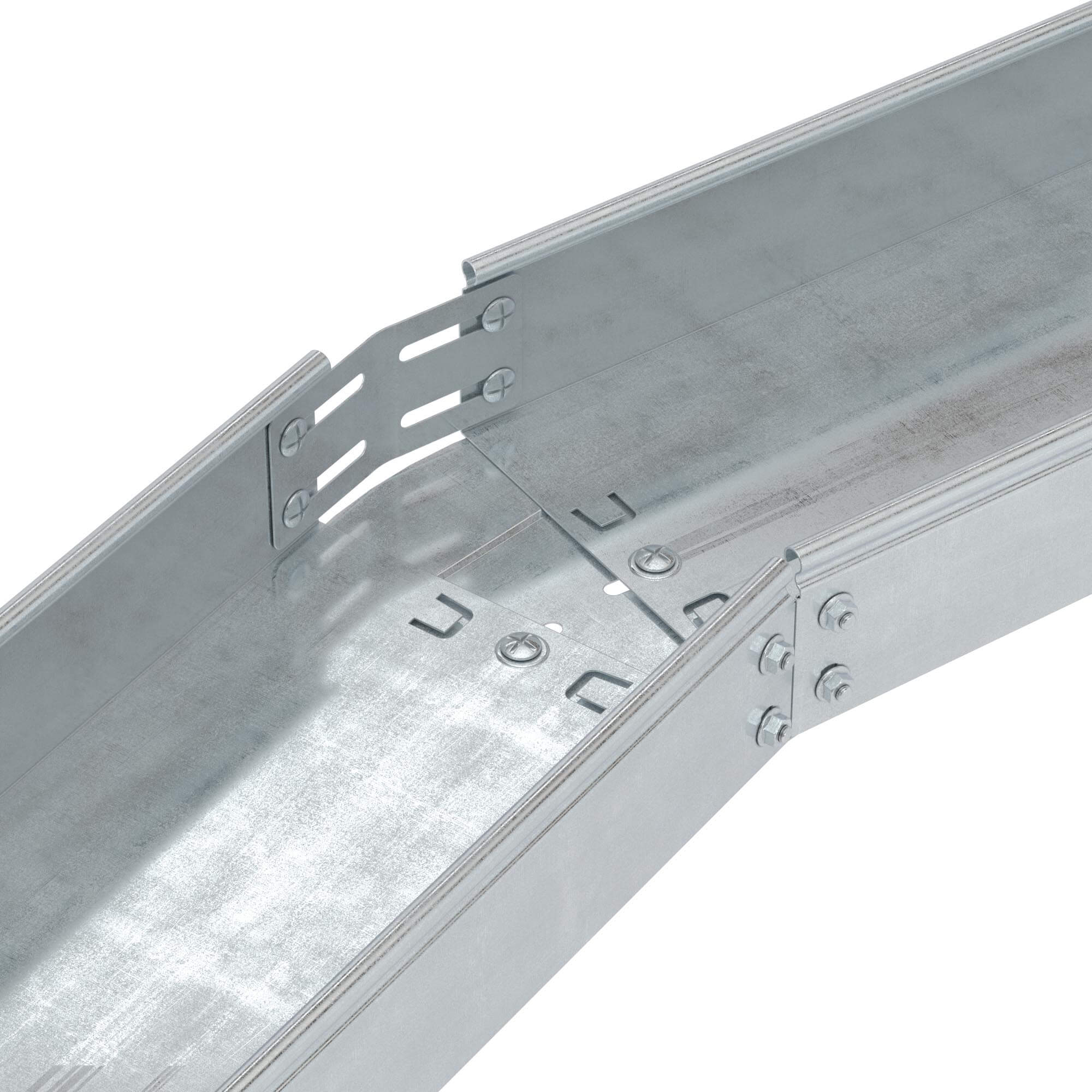

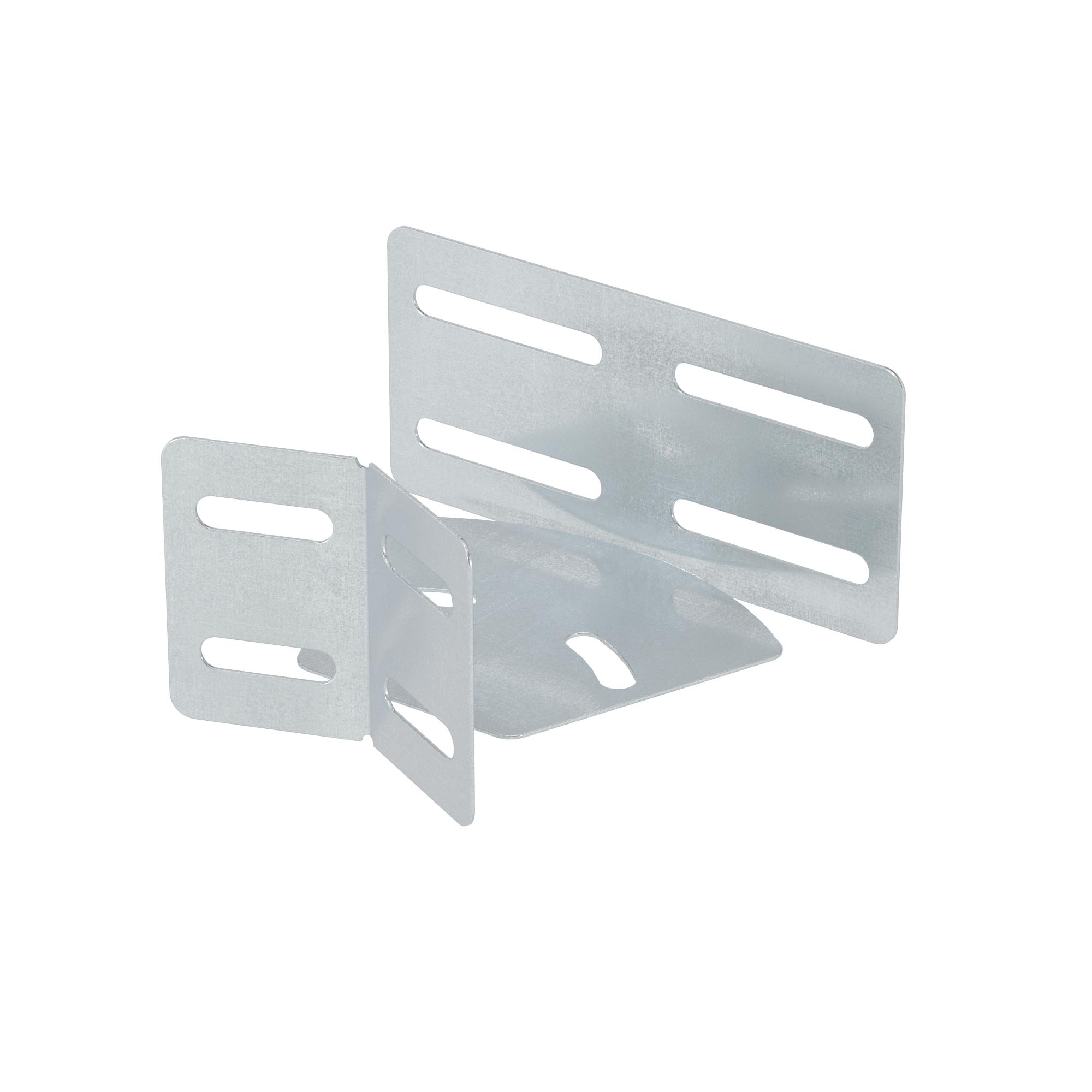

Variable AngleElbow 0-45° 200x100
Code: 36019
Variable AngleElbow 0-45° 200x100
Code: 36019
Colour | Light grey |
Model | Without connector |
Surface protection | Sendzimir galvanized |
Material thickness, mm | 0.8 |
Deflection (angle) | Adjustable |
Side wall perforation | Yes |
Material quality | Steel |
Material | Steel |
Mounting perforation in bottom | Yes |
Inner radius, mm | 197 |
Cable tray width, mm | 200 |
Cable tray height, mm | 100 |
Change of direction | Horizontal |
NATO-mounting holes | Yes |
Stainless steel, pickled | Yes |
Wide span model | Yes |
Suitable for circuit integrity | Yes |
Product type | System accessories |
Type of accessories | Horizontal variable angle angle CPO 0-45 |
Height | 100 mm |
Thickness | 0.8 mm |
Material | Pre-galvanized |
Width | 200 mm |

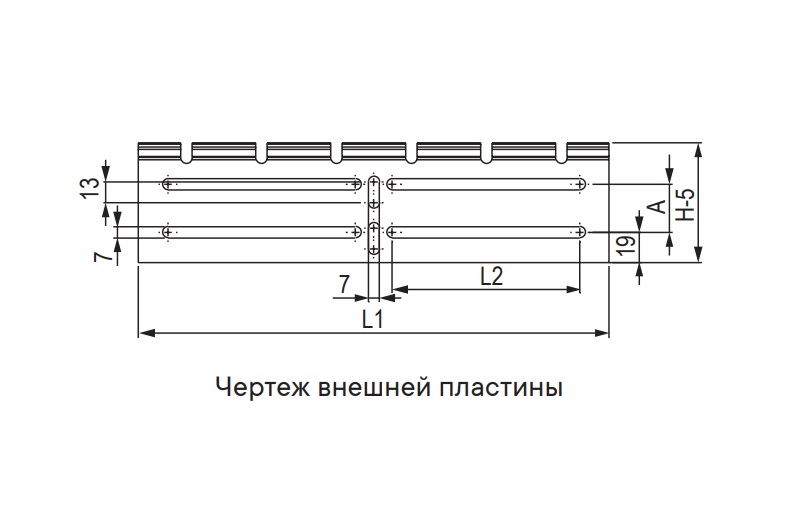

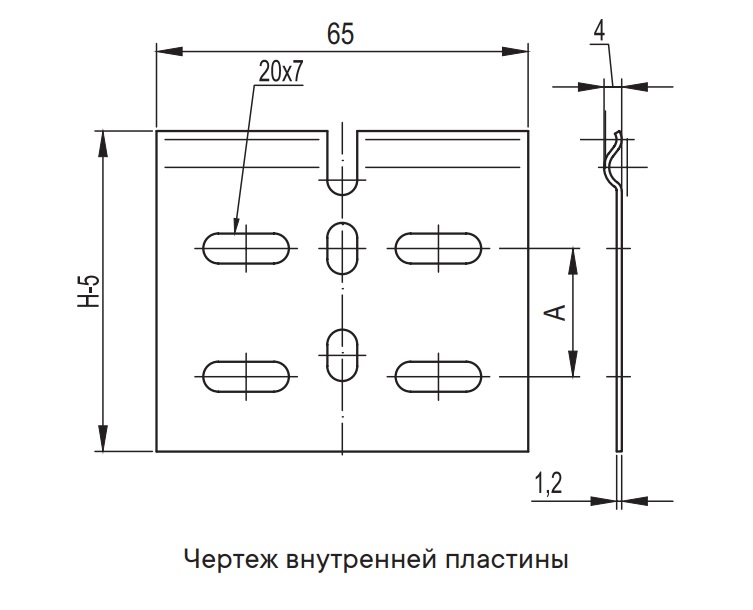

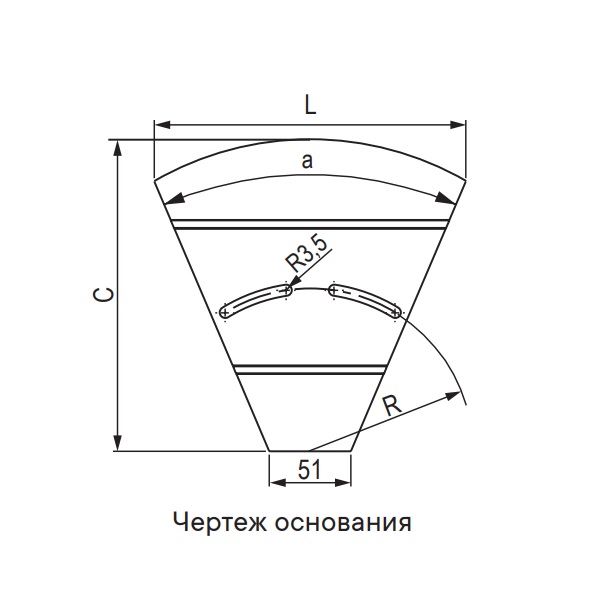

Drawings
Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
---|---|---|---|---|---|---|---|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
Name | Document |
---|---|
