| Model | Without connector |
| Surface protection | Sendzimir galvanized |
| Material thickness, mm | 0.8 |
| Deflection (angle) | Adjustable |
| Side wall perforation | Yes |
| Material quality | Steel |
| Material | Steel |
| Mounting perforation in bottom | Yes |
| Cable tray width, mm | 100 |
| Cable tray height, mm | 80 |
| Change of direction | Horizontal |
| Suitable for circuit integrity | Yes |
| With cover | No |
| Bend model | Smooth bend |
| Product type | System accessories |

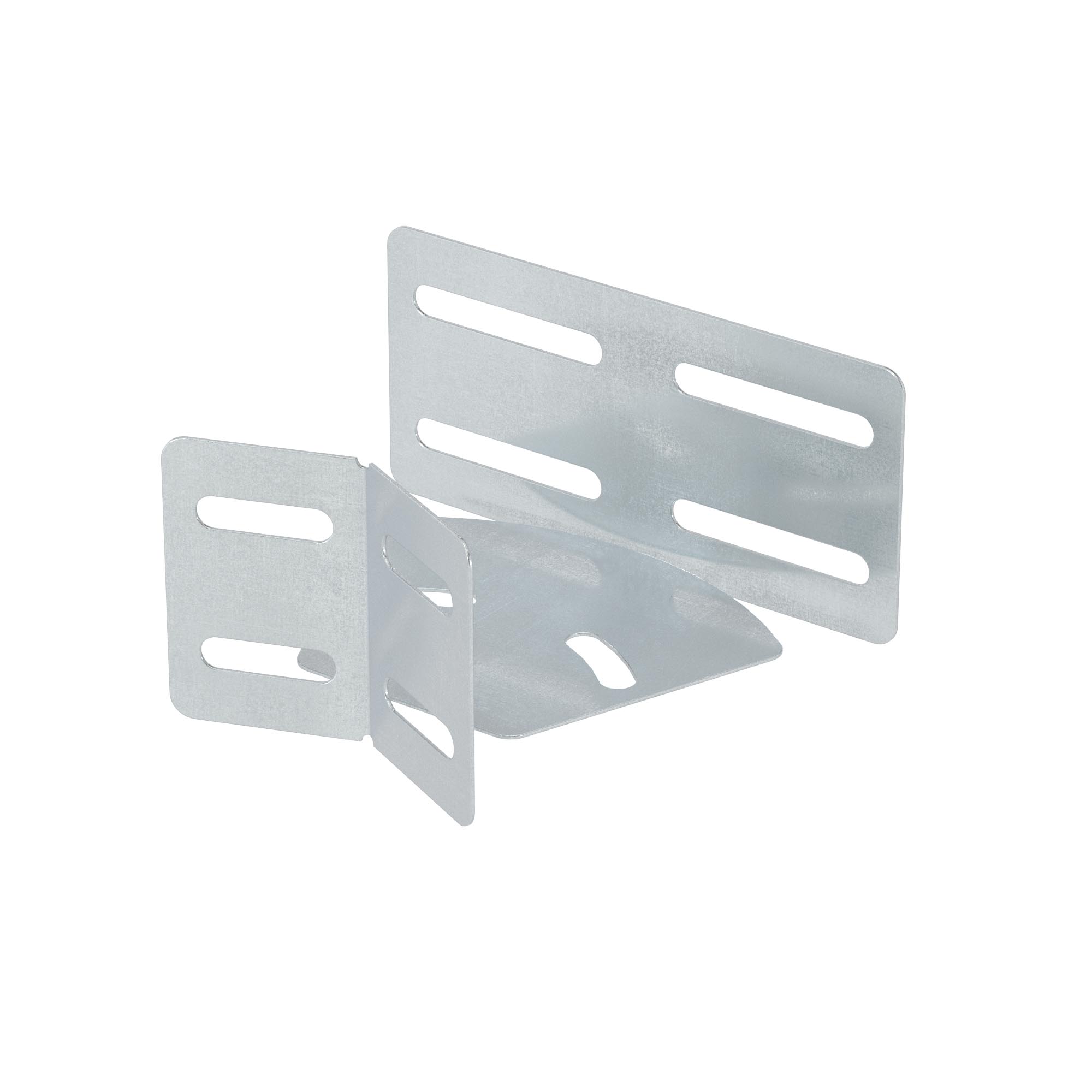

| Type of accessories | Horizontal variable angle angle CPO 0-45 |
| Height | 80 mm |
| Thickness | 0.8 mm |
| Material | Pre-galvanized |
| Width | 100 mm |
