Telescopic Extension 400x50
Code: 35266600
Telescopic Extension 400x50
Code: 35266600
| Surface protection | Sendzimir galvanized |
| Length, mm | 600 |
| Material | Steel |
| Suitable for wire mesh tray | Yes |
| Suitable for cable ladder | Yes |
| Suitable for cable tray | Yes |
| Stainless steel, pickled | Yes |
| Suitable for cable management system height, mm | 50 |
| Hinged joint horizontal | Yes |
| Hinged joint vertical | Yes |
| Suitable for circuit integrity | Yes |
| Suitable for cable management system width, mm | 400...400 |
| Type of connection | Screw connector |
| Colour | Light grey |
| Material quality | Steel |
| Model | Joint clip bar |
| Product type | Mounting accessories |
| Type of accessories | Telescopic Extension |
| Height | 50 mm |
| Length | 600 mm |
| Material | Pre-galvanized |
| Width | 400 mm |

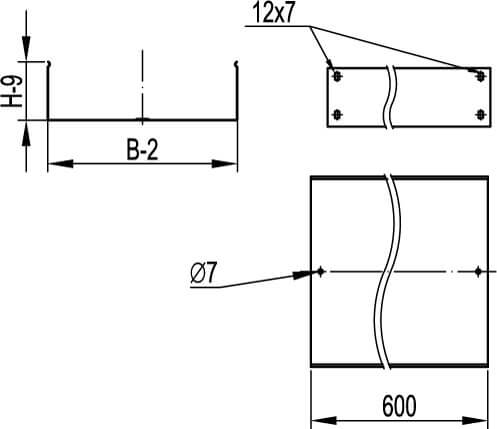

Drawings
| Seria | Name | AVEVA | DWG (dynamic.) | Autodesk Revit | Intergraph | SAT | STEP |
|---|---|---|---|---|---|---|---|
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
||
|
Metal sheet trays - " S5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
