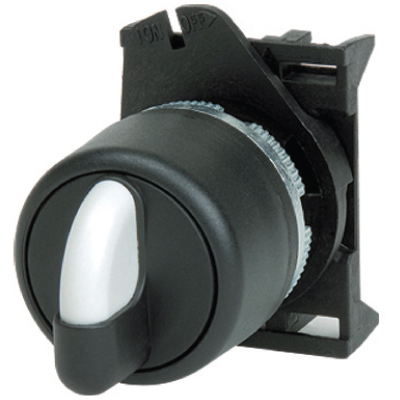

Rotary switcher with short operator
Code: ASSB6D0
Rotary switcher with short operator
Code: ASSB6D0
| Number of switch positions | 2 |
| Modular version | No |
| Measuring between phase and N-neutral possible | No |
| Measurement between phases possible | No |
| With 0 (off) position | Yes |
| With control unit | No |
| With retraction in 0-position | No |
| Interlockable | No |
| Motor drive integrated | No |
| Version as emergency stop installation | No |
| Version as main switch | Yes |
| Version as safety switch | No |
| Version as maintenance-/service switch | Yes |
| Front shield size | Other |
| Suitable for floor mounting | No |
| Suitable for front mounting | No |
| Suitable for front mounting 4-hole | No |
| Suitable for front mounting centre | Yes |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | Yes |
| Complete device in housing | No |
| Motor drive optional | No |
| Voltage release optional | No |
| Device construction | Built-in device |
| Type of control element | Short thumb-grip |
| Degree of protection (IP), front side | IP66 |
| Product type | Control buttons and light-signaling fittings |

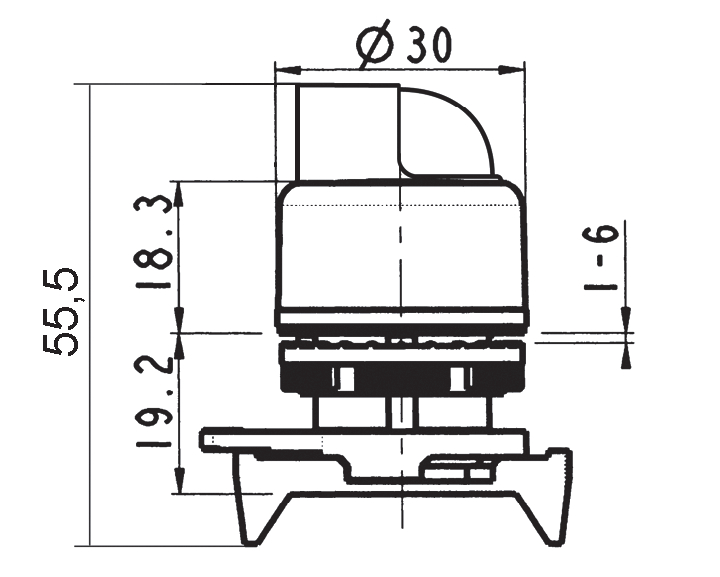

Drawings
| Seria | Name | DWG |
|---|---|---|
|
Buttons and switches - "Quadro"
|
