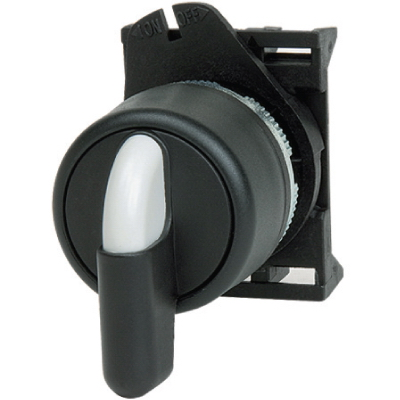

Rotary switcher with long operator
Code: ASLB4T0
Rotary switcher with long operator
Code: ASLB4T0
Number of switch positions | 3 |
Modular version | Нет |
Measuring between phase and N-neutral possible | Нет |
Measurement between phases possible | Нет |
With 0 (off) position | Да |
With control unit | Нет |
With retraction in 0-position | Нет |
Interlockable | Нет |
Motor drive integrated | Нет |
Version as emergency stop installation | Нет |
Version as main switch | Да |
Version as safety switch | Нет |
Version as maintenance-/service switch | Да |
Front shield size | Other |
Suitable for floor mounting | Нет |
Suitable for front mounting | Нет |
Suitable for front mounting 4-hole | Нет |
Suitable for front mounting centre | Да |
Suitable for distribution board installation | Да |
Suitable for intermediate mounting | Да |
Complete device in housing | Нет |
Motor drive optional | Нет |
Voltage release optional | Нет |
Device construction | Built-in device |
Type of control element | Long turning handle |
Degree of protection (IP), front side | IP66 |
Product type | Control buttons and light-signaling fittings |
Drawings
Seria | Name | DWG |
---|---|---|
Buttons and switches - "Quadro"
|
