Momentary, extended push button with lens cap

Code: ABDLR3

Momentary, extended push button with lens cap

Code: ABDLR3
Hole diameter, mm 22.5
Number of switch positions 1
Suitable for illumination No
Number of command positions 1
Unlocking method None
Spring-return Yes
Suitable for emergency stop No
Type of button High
Width opening, mm 22.5
Height opening, mm 22.5
With front ring Yes
Switching function latching No
Colour front ring Black
Material front ring Plastic
Construction type lens Round
Colour button Yellow
Degree of protection (IP), front side IP65
With protection cover No
Labelled No
Product type Control buttons and light-signaling fittings

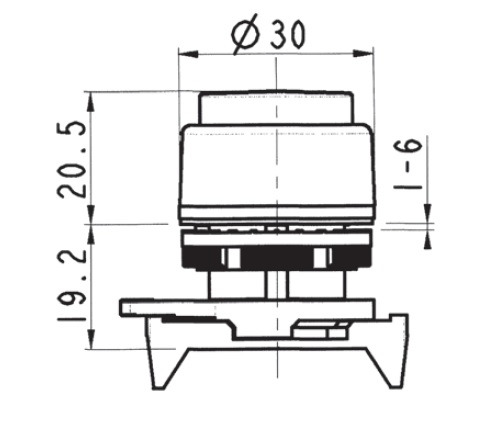

Drawings
Seria Name DWG
Buttons and switches - "Quadro"
