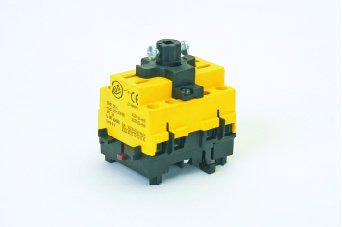

Disconnector for 16 Amp. 04-phases . Mount on plate
Code:
AE1604B
Code:
AE1604B
Removed from the product range
| Model | On/Off switch |
| Rated operation power at AC-3, 400 V, kW | 18.5 |
| Rated permanent current Iu, A | 16 |
| Number of poles | 3 |
| With 0 (off) position | Yes |
| Type of electrical connection of main circuit | Screw connection |
| Suitable for floor mounting | Yes |
| Suitable for front mounting | Yes |
| Suitable for distribution board installation | Yes |
| Suitable for intermediate mounting | Yes |
| Complete device in housing | Yes |
| Type of control element | Long turning handle |
| Degree of protection (IP), front side | IP65 |
| With retraction in 0-position | Yes |
| Rated operation current Ie at AC-3, 400 V, A | 22 |
| Product type | load break switches |
