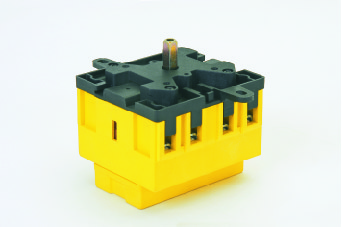

Disconnector for 100 Amp. 03-phases . Mount on panel

Code: AE10003R
Model On/Off switch
Rated operation power at AC-3, 400 V, kW 45
Rated permanent current Iu, A 100
Number of poles 3
With 0 (off) position Yes
Connection type main current circuit Screw connection
Suitable for ground mounting No
Suitable for front mounting 4-hole Yes
Suitable for distribution board installation Yes
Suitable for intermediate mounting Yes
Complete device in housing No
Type of control element Long turning handle
Degree of protection (IP), front side IP65
With retraction in 0-position Yes
Product type Switch/closet door switch
Rated operation current Ie at AC-3, 400 V 55
Height, mm 128
Width, mm 82,5
Ingress Protection rating, IP IP20
Temperature of operation, °C -25 - +55
Voltage of disruption, V 8000
Depth, mm 106
Seria Name DWG
