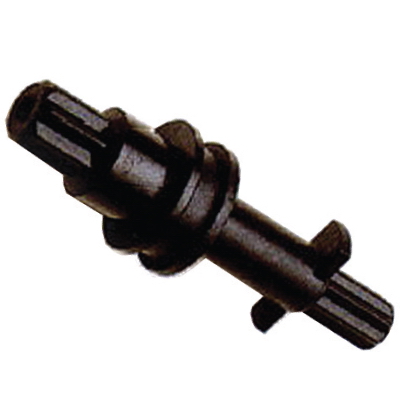

Box shaft

Box shaft

Code: A11706237

To ask a question

Model

Coupling box for plug-in connection

Color	Black
Material of case	ABC-plastic

Temperature of mounting, °C	-25...+55
Temperature of operation, °C	-25 - +55

Drawings

Seria	Name	DWG
Quadro - buttons and switches	Quadro - buttons and switches	ZIP 611.26 kB

Certificates

Name	Document
Quadro_Connection Devices - Exemption letter for a сertificate of conformity to GOST R	PDF 6.07 MB
Quadro_Connection Devices - Certificate of conformity to GOST R for disconnector, series AM32	PDF 1.30 MB
Quadro_Connection Devices - Certificate of conformity to GOST R for cam switches	PDF 1.58 MB
Quadro_Connection Devices - Exemption letter for thermoplastic enclosure for cam switches and buttons	PDF 3.67 MB
