Colour Light grey
Width, mm 600
Model Integrated connector
Height, mm 100
Material thickness, mm 1
Material quality Other
Length, mm 2000
Mounting perforation in bottom No
Wide span model No
Raw material Pre-galvanized

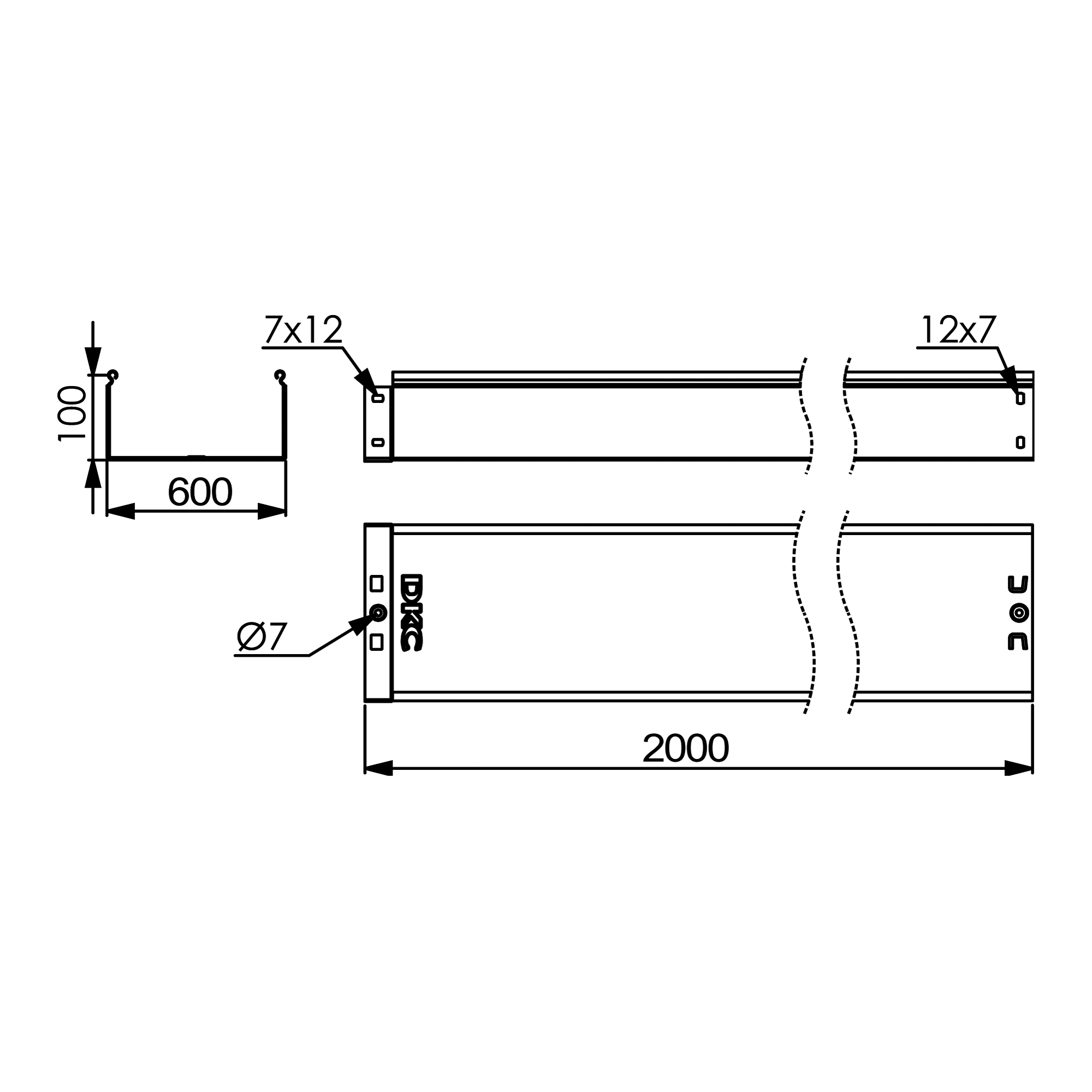

Drawings
Seria Name STEP SAT Intergraph Autodesk Revit DWG (dynamic blocks) AVEVA
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
S5 Combitech - metal sheet trays
Certificates
Name Document
