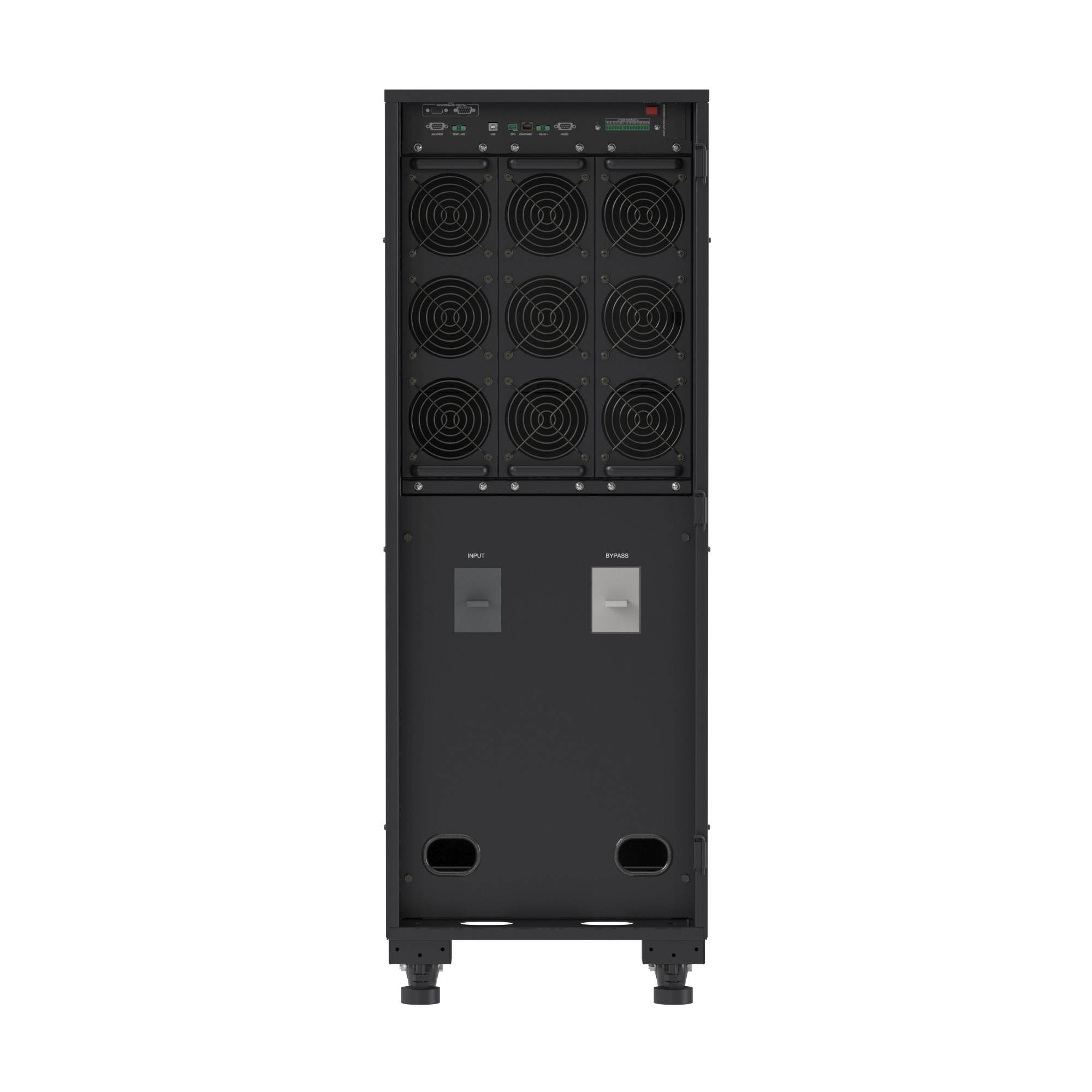

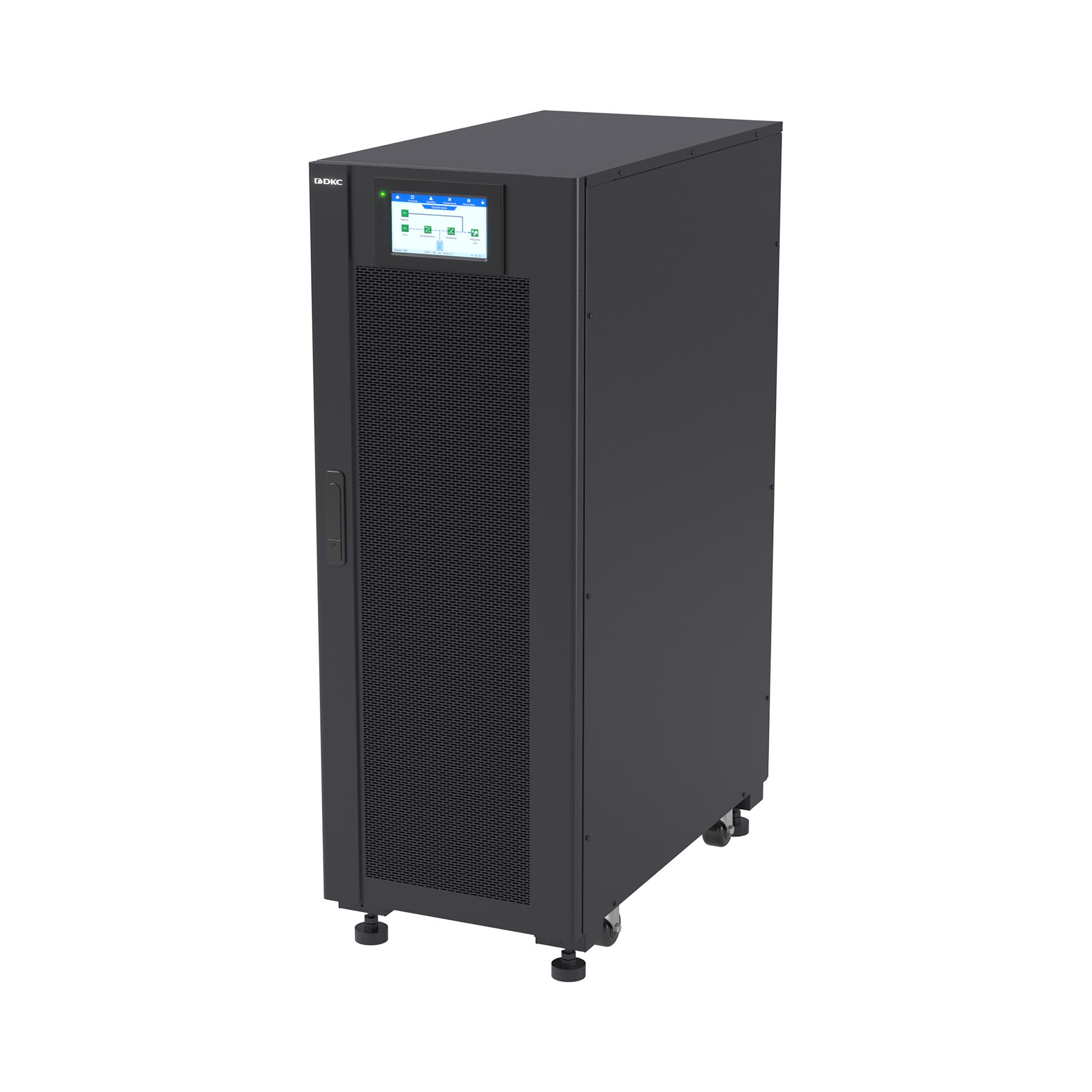

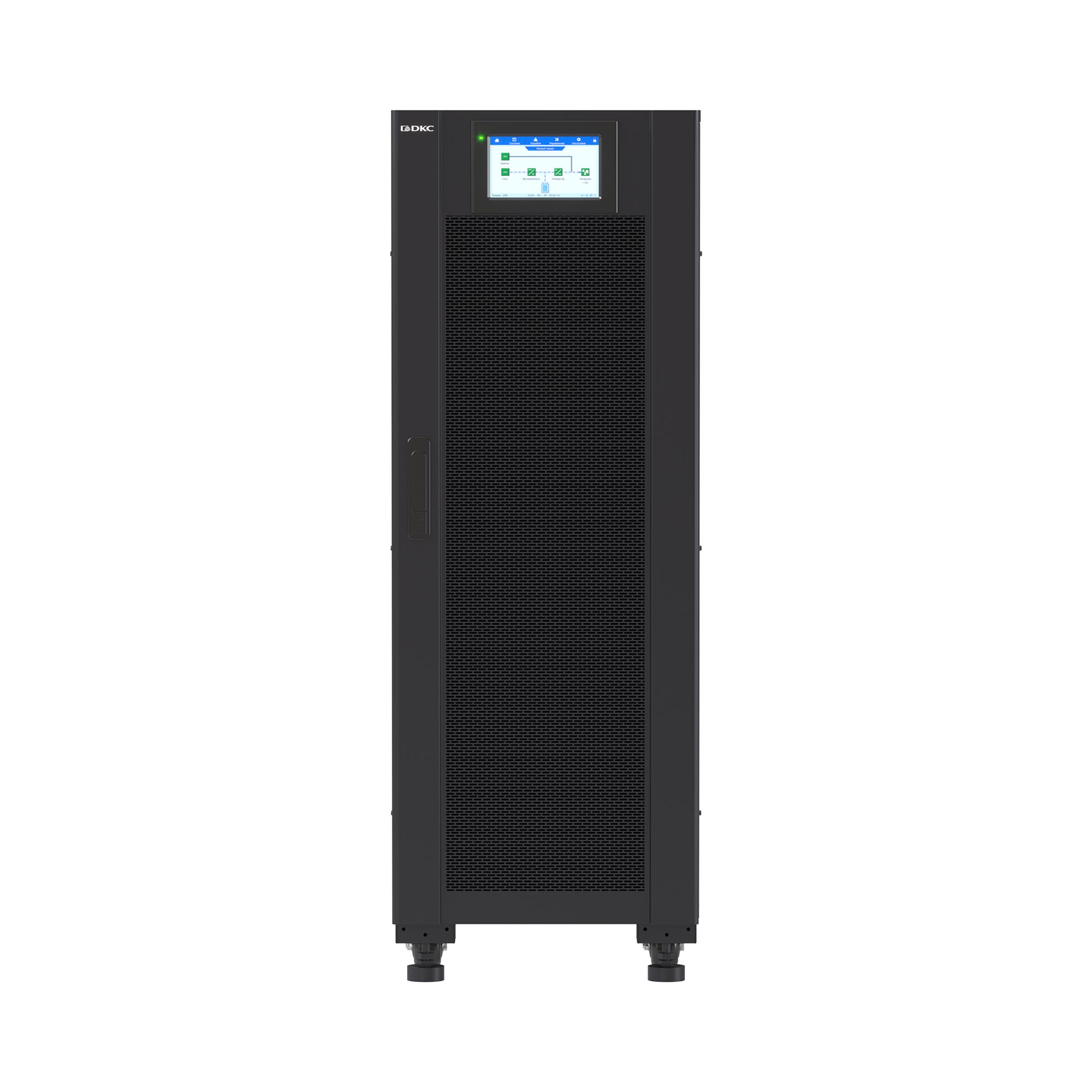

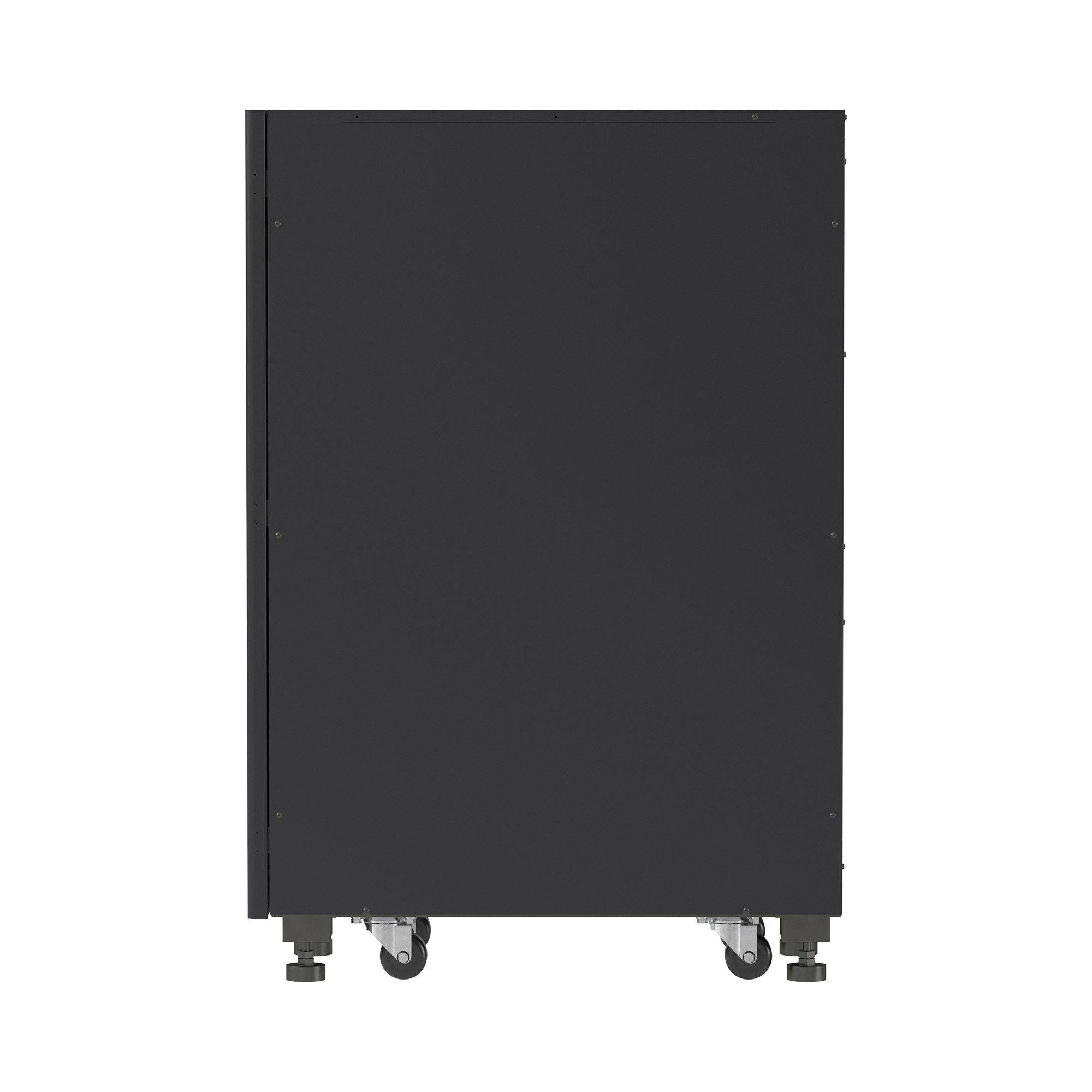

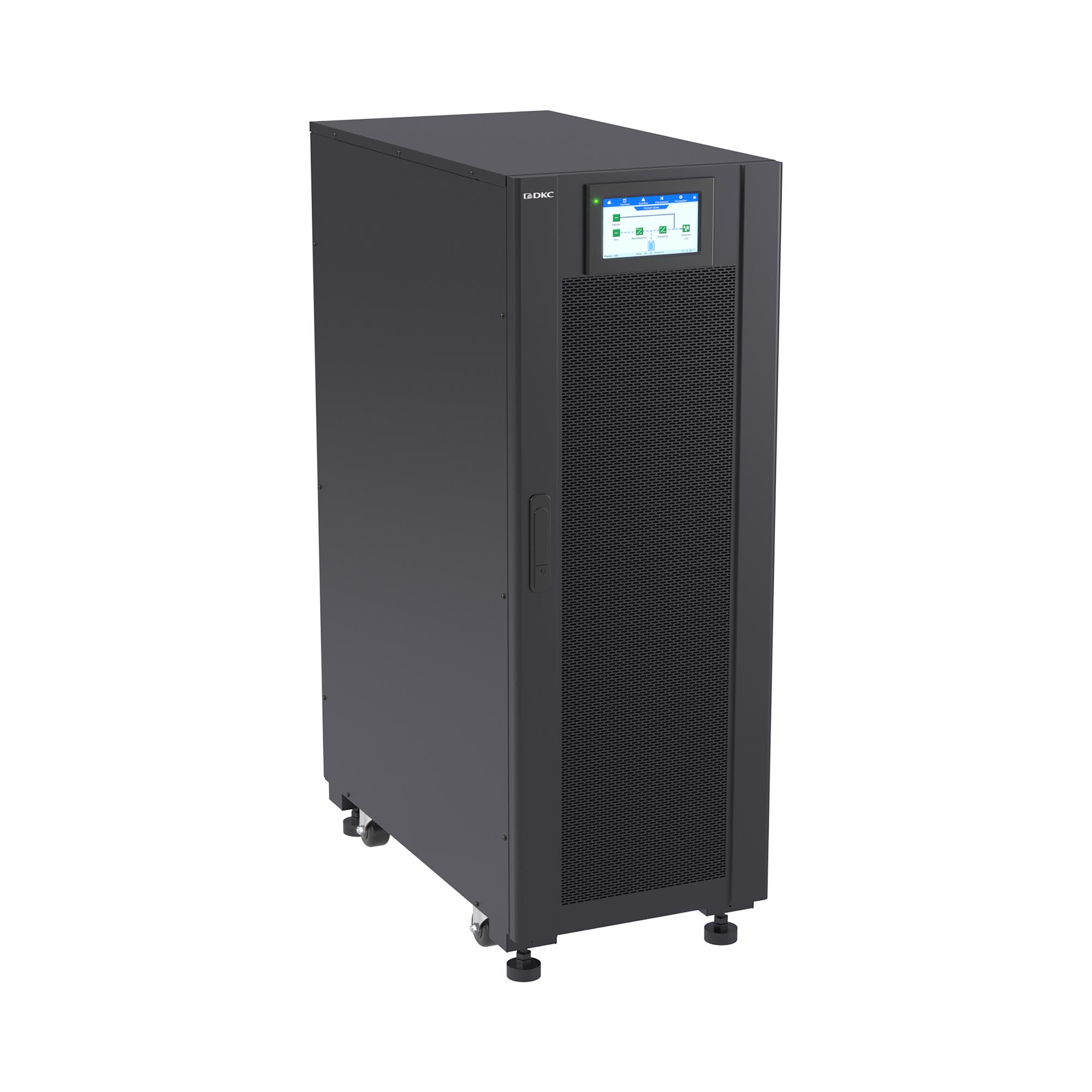

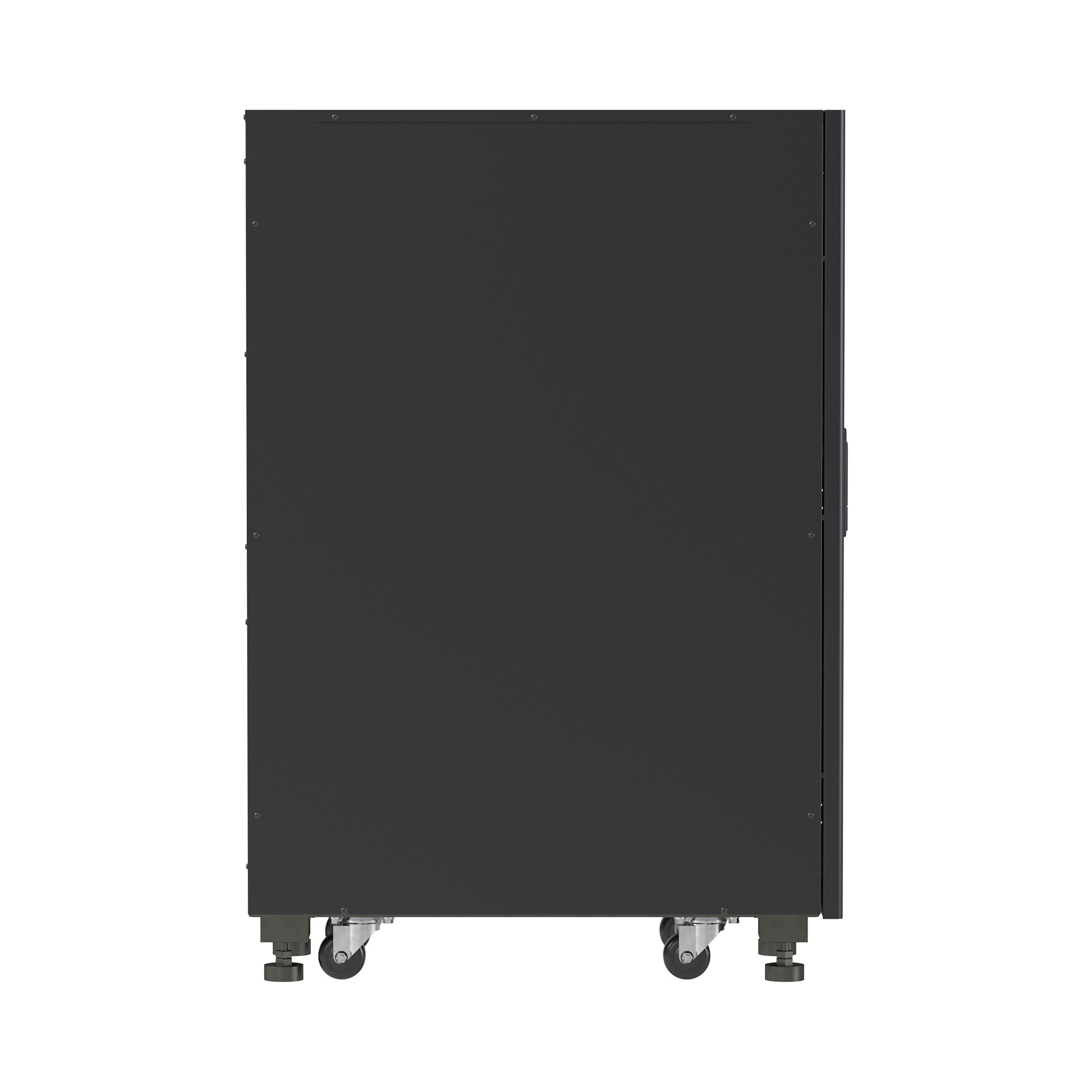

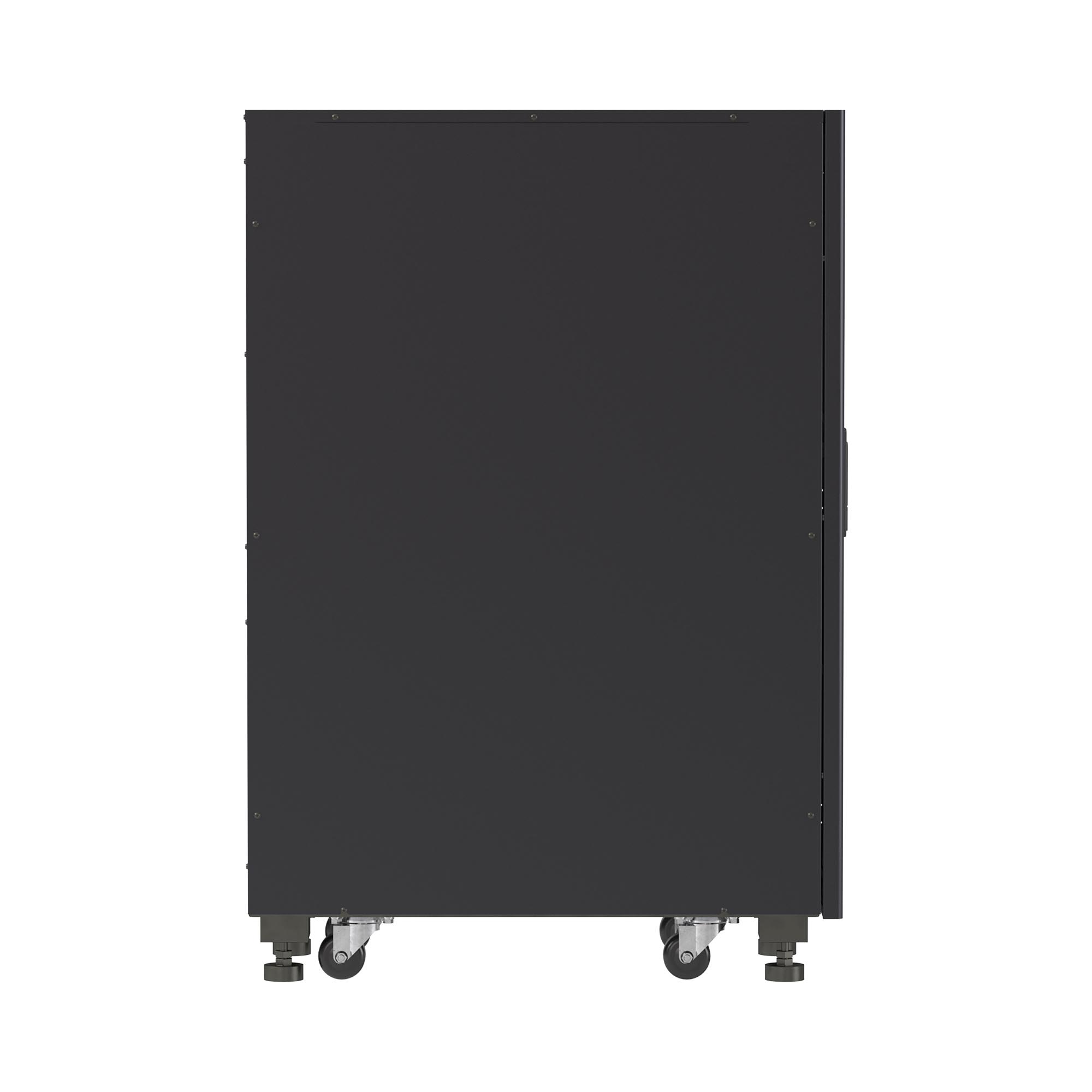

Three-phase DKS UPS of the TRIOMT series, 160 kVA / 60 kW, floor-standing design, without internal batteries

Code: TRIOMT160A0
Code: TRIOMT160A0
  • To ask a question
Weight, kg 200
Voltage type AC
Output power, VA 160000
Construction type Free standing model
Input voltage, V 320...460
PC interface Yes
Width, mm 440
Height, mm 1250
Depth, mm 850
Output voltage, V 380...415
SNMP Yes
USV- technology Online
Degree of protection (IP) IP20
Built-in battery Yes
Number of phases secondary 3
Number of phases primary 3
Output power factor 1
Input voltage range 304~478Vac, full load
Frequency range 40Hz~70Hz
Input power factor >0.99
Input current THDi <3%( full non-linear load)
Rated output voltage 380/400/415 V
Rated frequency 50/60 Hz
Bypass voltage range Optional, default -20%~+15% Top limitation: +10%, +15%, +20%, +25%, Down limitation: -10%, -15%, -20%, -30%, -40%
Bypass frequency range Selectable, ±1Hz, ±3Hz, ±5Hz
Bypass overload 125% long term operation; 125%~130%, 10min
Rated nominal current 1.7×In (100% non-linear load)
Transfer time 0 msec
Rated inverter voltage 380/400/415 V
Power factor 1
Crest factor 3:1
Voltage precision ±1% (linear load)
Precise frequency 0.1 Hz
Total harmonic distortion (THDv) <1% (full linear load)
Inventer overload 110%~125%,10 min;
Installed internal batteries No
Long run model battery voltage ±240 V default, ±120V~±240V
Max charge current 60A
Display Default: 7 inch touch screen
Efficiency network >96%
Efficiency ECO mode 98.5%
Efficiency battery mode >94.5%
Interface Standard: RS232, RS485, USB, Battery cold start Option: programmable dry contact, SNMP, parallel kit
Color Black, RAL 7021
IP protection IP20
