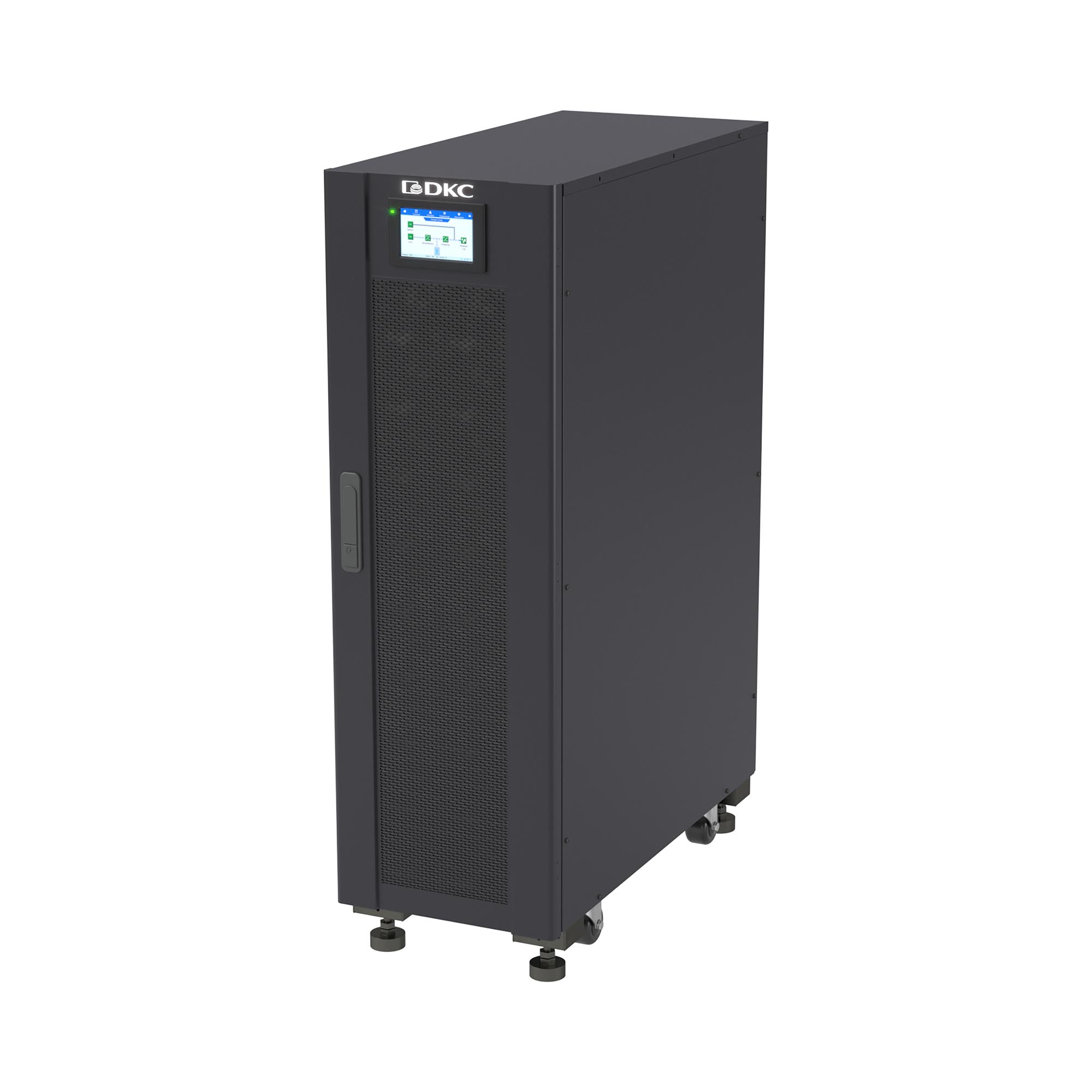

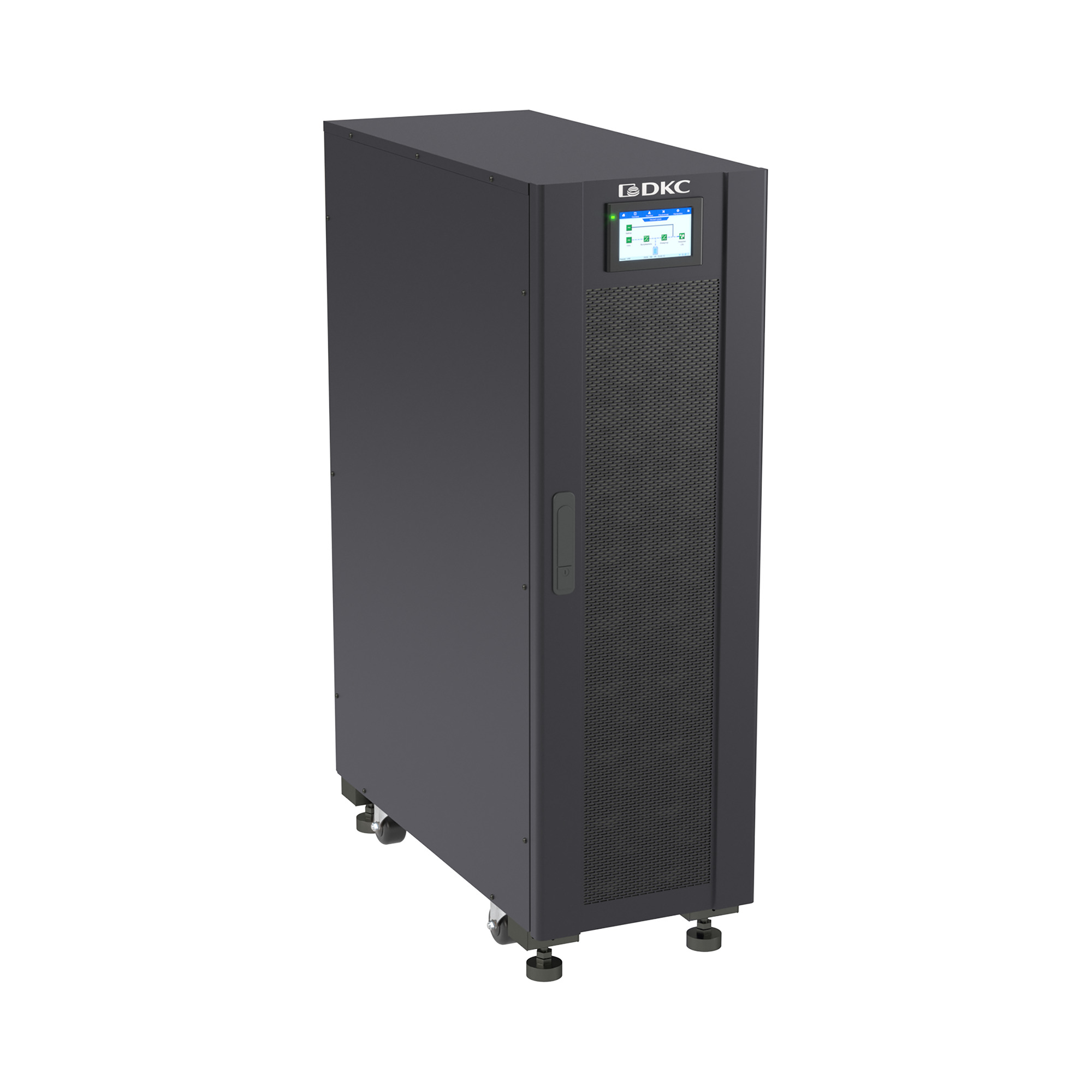

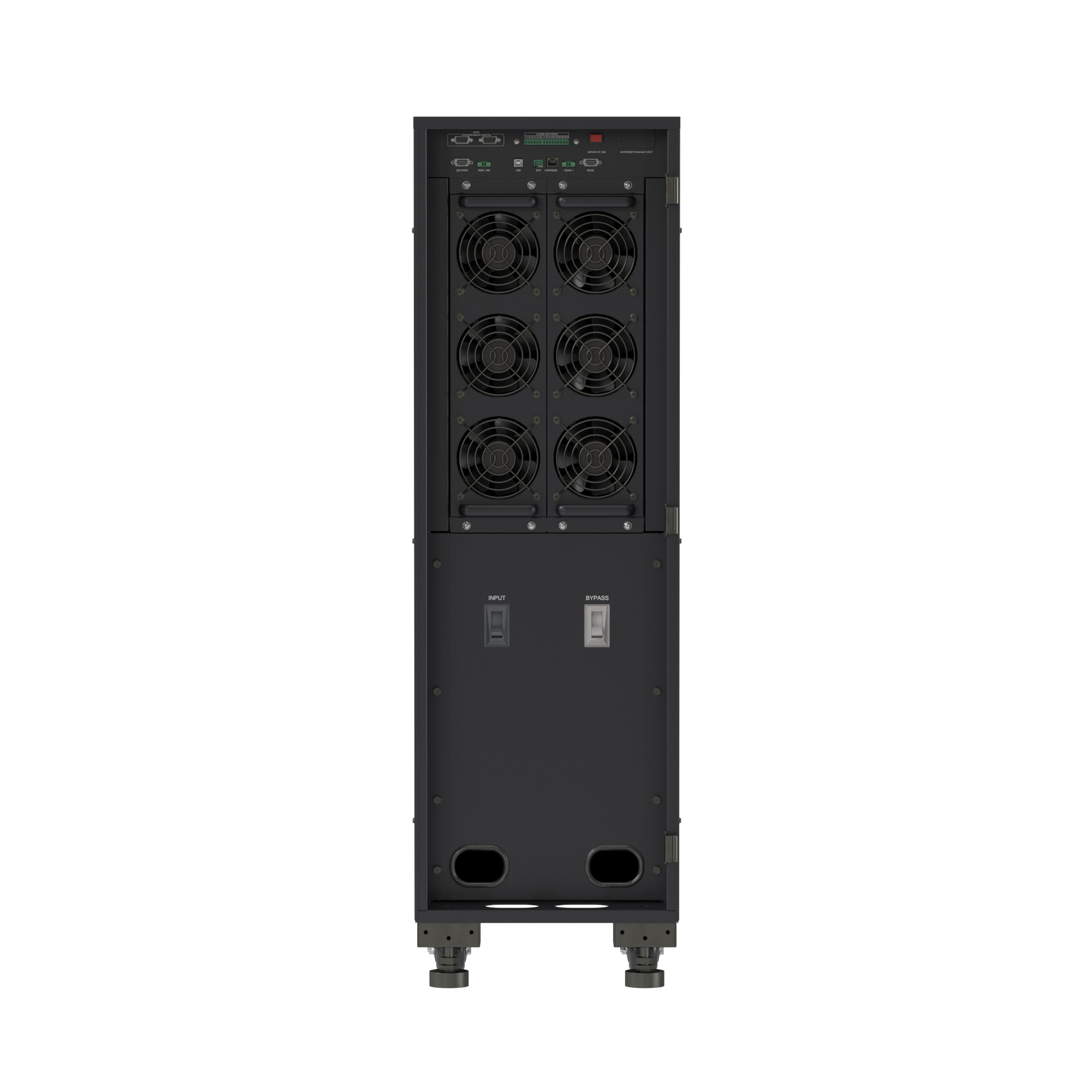

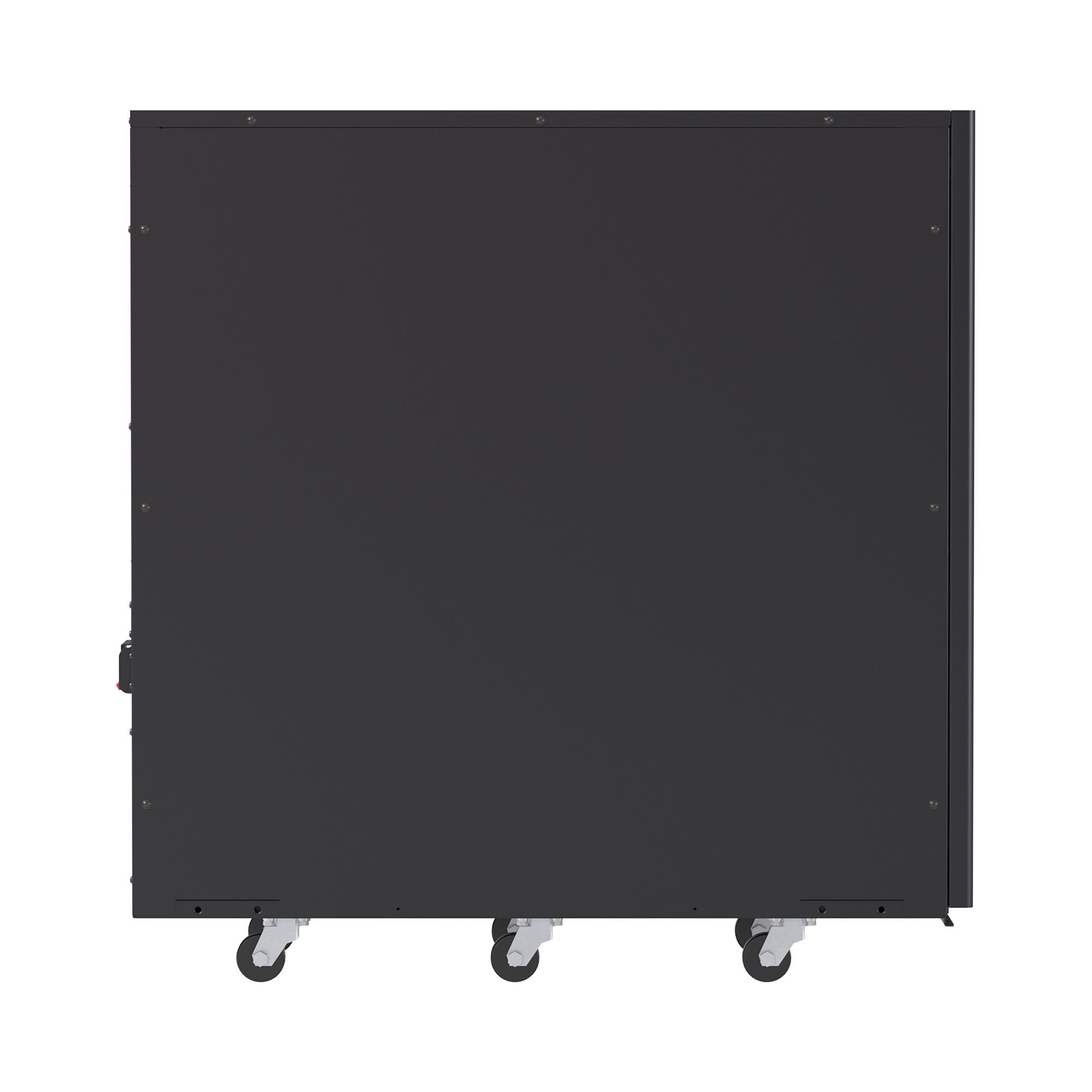

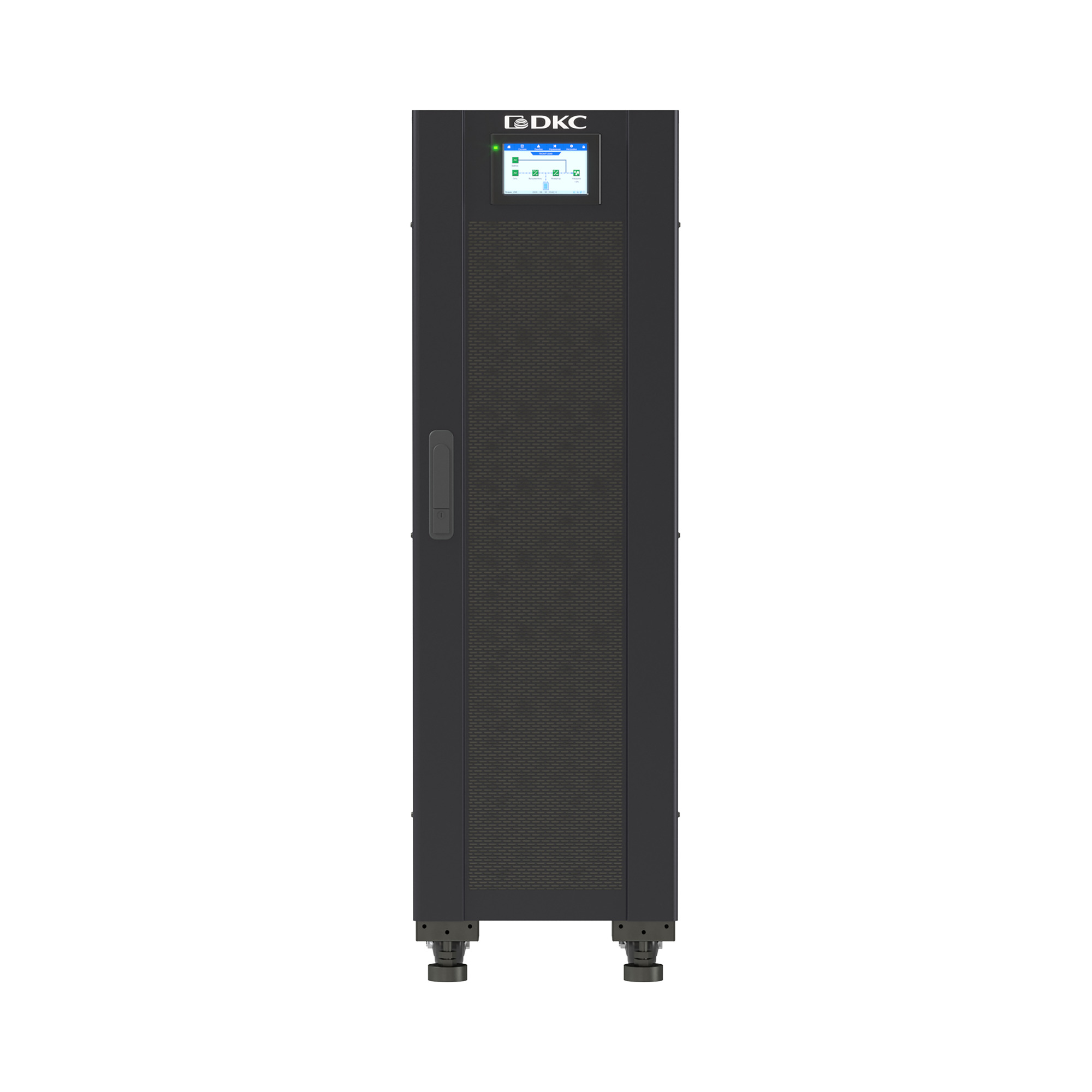

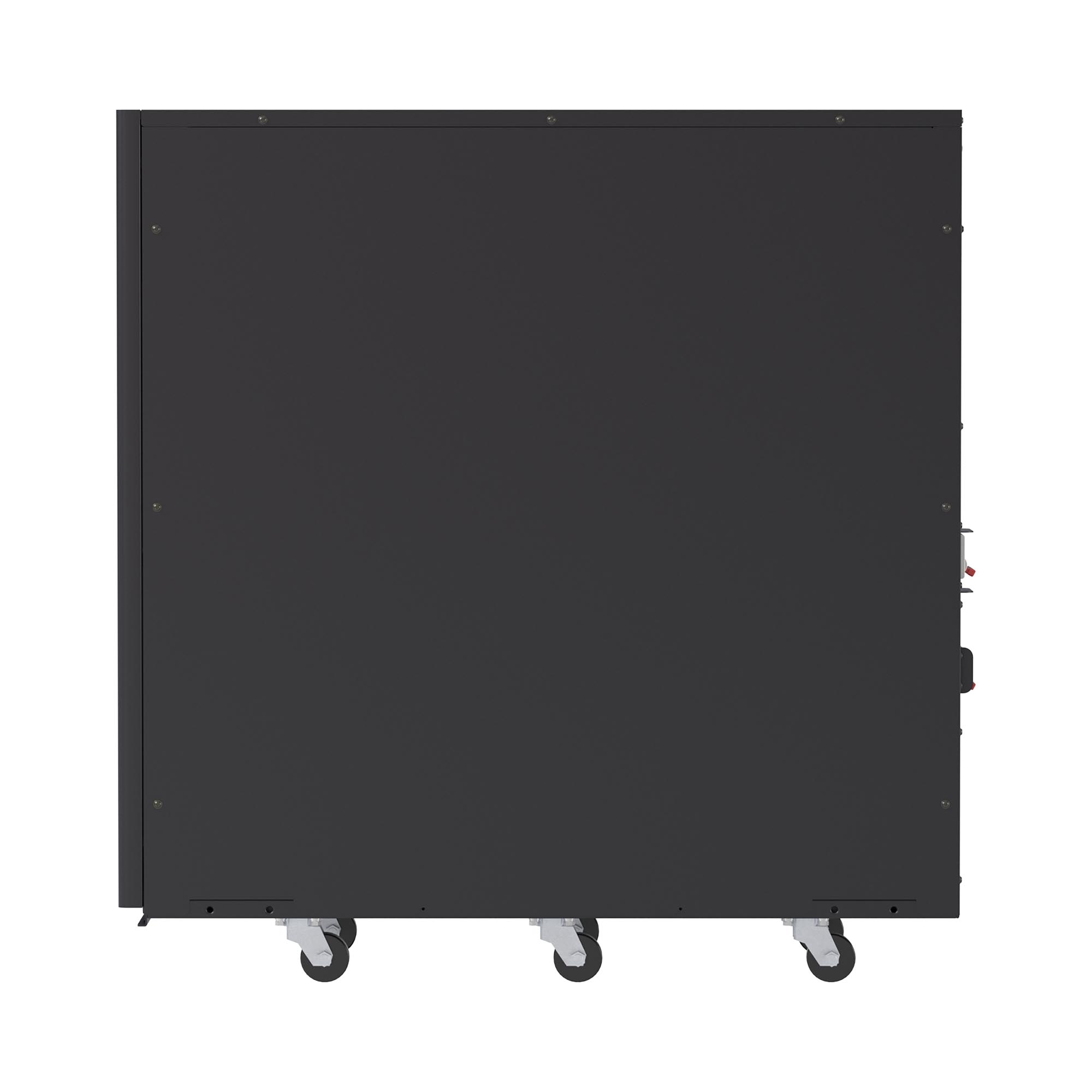

Three-phase DKS UPS of the TRIOMT series, 120 kVA / 60 kW, floor-standing design, without internal batteries
Code:
TRIOMT120A0
Code:
TRIOMT120A0
| Weight, kg | 160 |
| Voltage type | AC |
| Output power, VA | 120000 |
| Construction type | Free standing model |
| Input voltage, V | 320...460 |
| PC interface | Yes |
| Width, mm | 360 |
| Height, mm | 1200 |
| Depth, mm | 850 |
| Output voltage, V | 380...415 |
| SNMP | Yes |
| USV- technology | Online |
| Degree of protection (IP) | IP20 |
| Built-in battery | Yes |
| Number of phases secondary | 3 |
| Number of phases primary | 3 |
| Output power factor | 1 |
| Input voltage range | 304~478Vac, full load |
| Frequency range | 40Hz~70Hz |
| Input power factor | >0.99 |
| Input current THDi | <3%( full non-linear load) |
| Rated output voltage | 380/400/415 V |
| Rated frequency | 50/60 Hz |
| Bypass voltage range | Optional, default -20%~+15% Top limitation: +10%, +15%, +20%, +25%, Down limitation: -10%, -15%, -20%, -30%, -40% |
| Bypass frequency range | Selectable, ±1Hz, ±3Hz, ±5Hz |
| Bypass overload | 125% long term operation; 125%~130%, 10min |
| Rated nominal current | 1.7×In (100% non-linear load) |
| Transfer time | 0 msec |
| Rated inverter voltage | 380/400/415 V |
| Power factor | 1 |
| Crest factor | 3:1 |
| Voltage precision | ±1% (linear load) |
| Precise frequency | 0.1 Hz |
| Total harmonic distortion (THDv) | <1% (full linear load) |
| Inventer overload | 110%~125%,10 min; |
| Installed internal batteries | No |
| Long run model battery voltage | ±240 V default, ±120V~±240V |
| Max charge current | 40A |
| Display | Default: 5 inch touch screen |
| Efficiency network | >96% |
| Efficiency ECO mode | 98.5% |
| Efficiency battery mode | >94.5% |
| Interface | Standard: RS232, RS485, USB, Battery cold start Option: programmable dry contact, SNMP, parallel kit |
| Color | Black, RAL 7021 |
| IP protection | IP20 |
