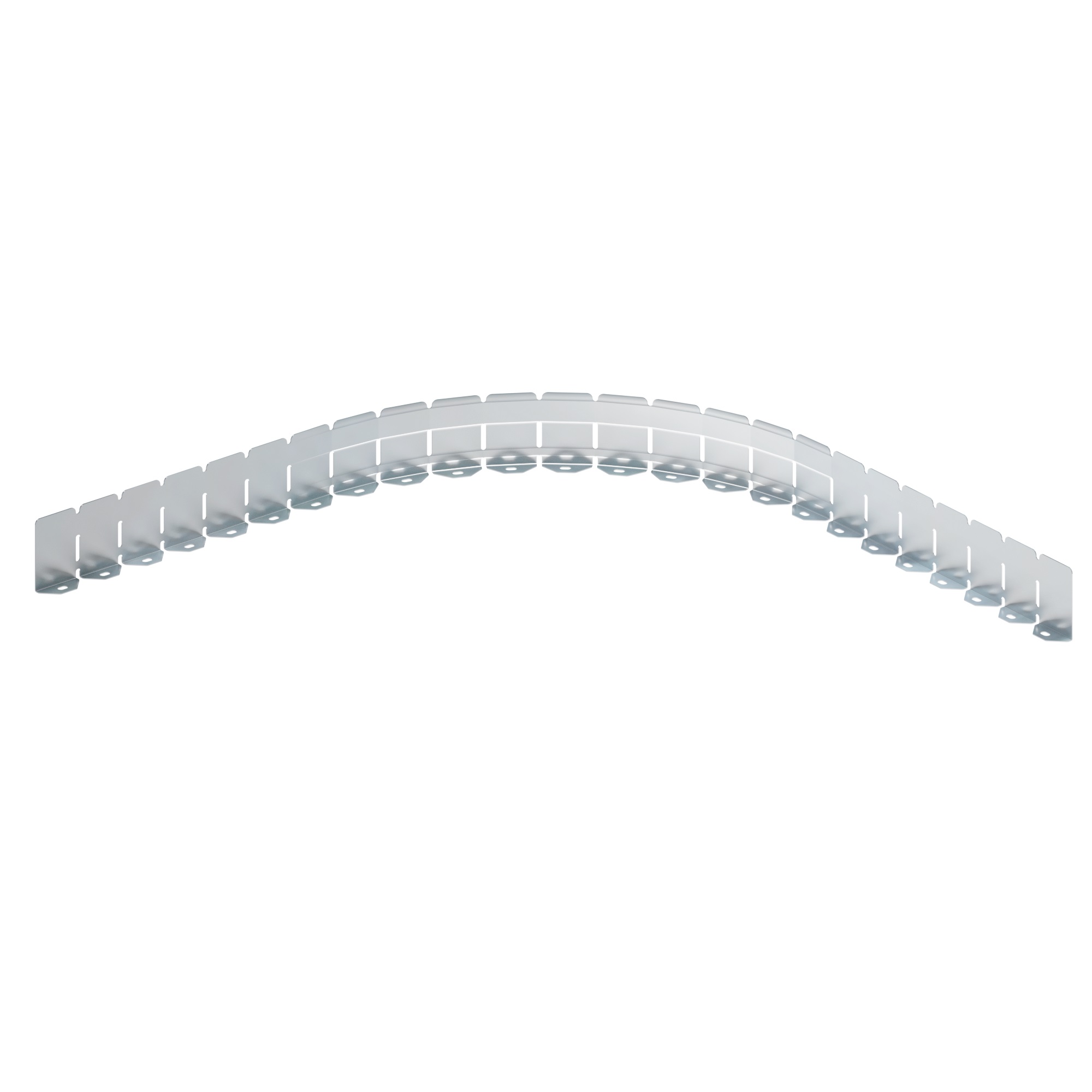

Divider H50 for horizontal angle, included with fasteners , hot galvanizing method
| Colour | Light grey |
| Surface protection | Hot-dip galvanized and coated |
| Material | Steel |
| Type of fastening | Screwable |
| Partition height, mm | 50 |
| Mounting perforation | Yes |
| Material thickness | 0.8 |
| Product type | Mounting accessories |
| Type of accessories | Partition for cover |
| Height | 50 mm |

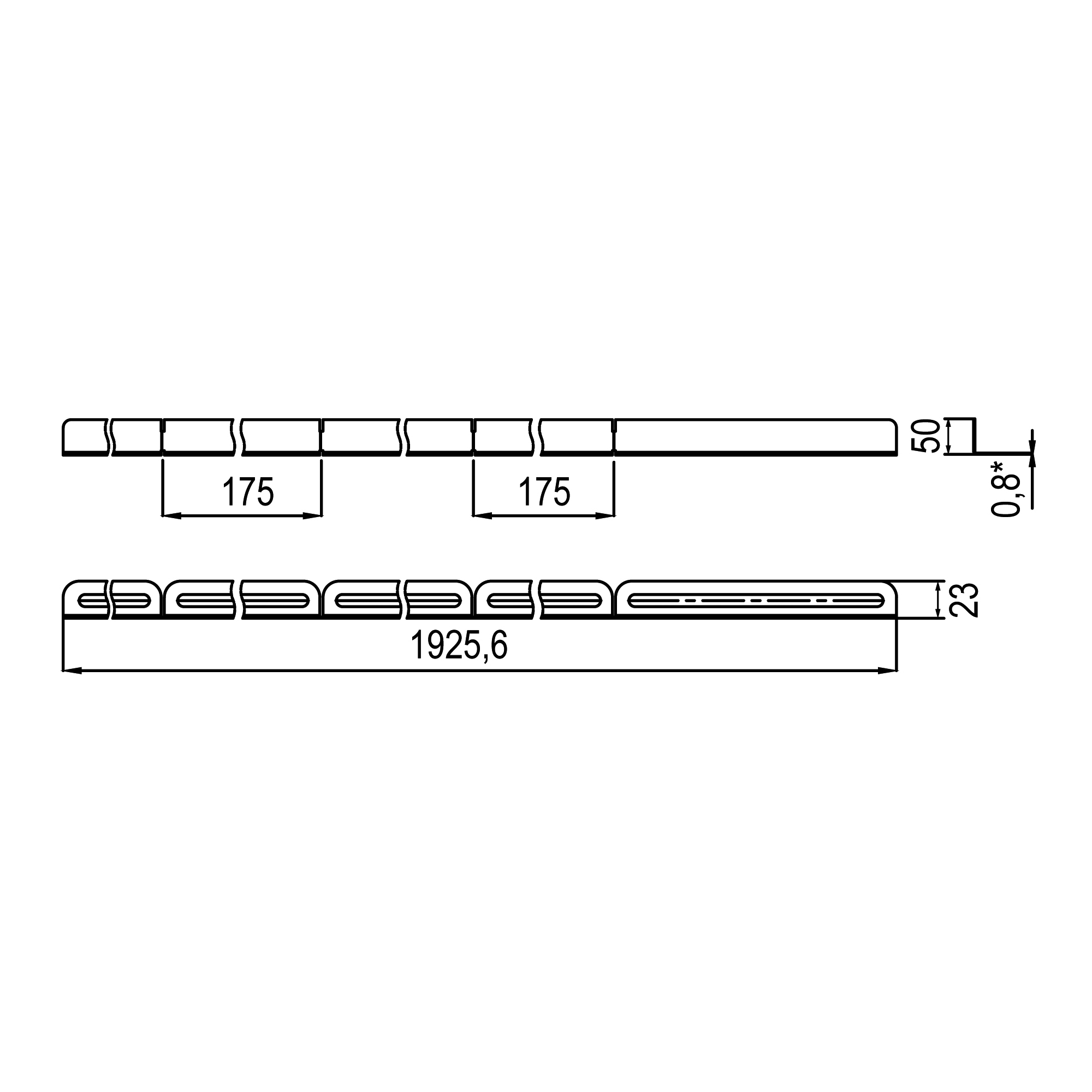

Drawings
| Seria | Name | AVEVA | Intergraph | DWG (dynamic.) | SAT | STEP | Autodesk Revit |
|---|---|---|---|---|---|---|---|
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
||
|
Metal ladder trays - "L5 Combitech"
|
|
|
|
|
|
Certificates
| Name | Document |
|---|---|
