External vertical angle 90° 80x200, R600, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LO8620KHDZ
  • To ask a question
Colour Light grey
Surface protection Hot-dip galvanized
Deflection (angle) 90°
Material Steel
Inner radius, mm 600
Cable tray width, mm 200
Cable tray height, mm 80
Change of direction Vertically declining
Model Included connector
Product type System accessories
Type of accessories 90º vertical external bend
Height 80 mm
Width 200 mm
Material Hot-dip galvanized

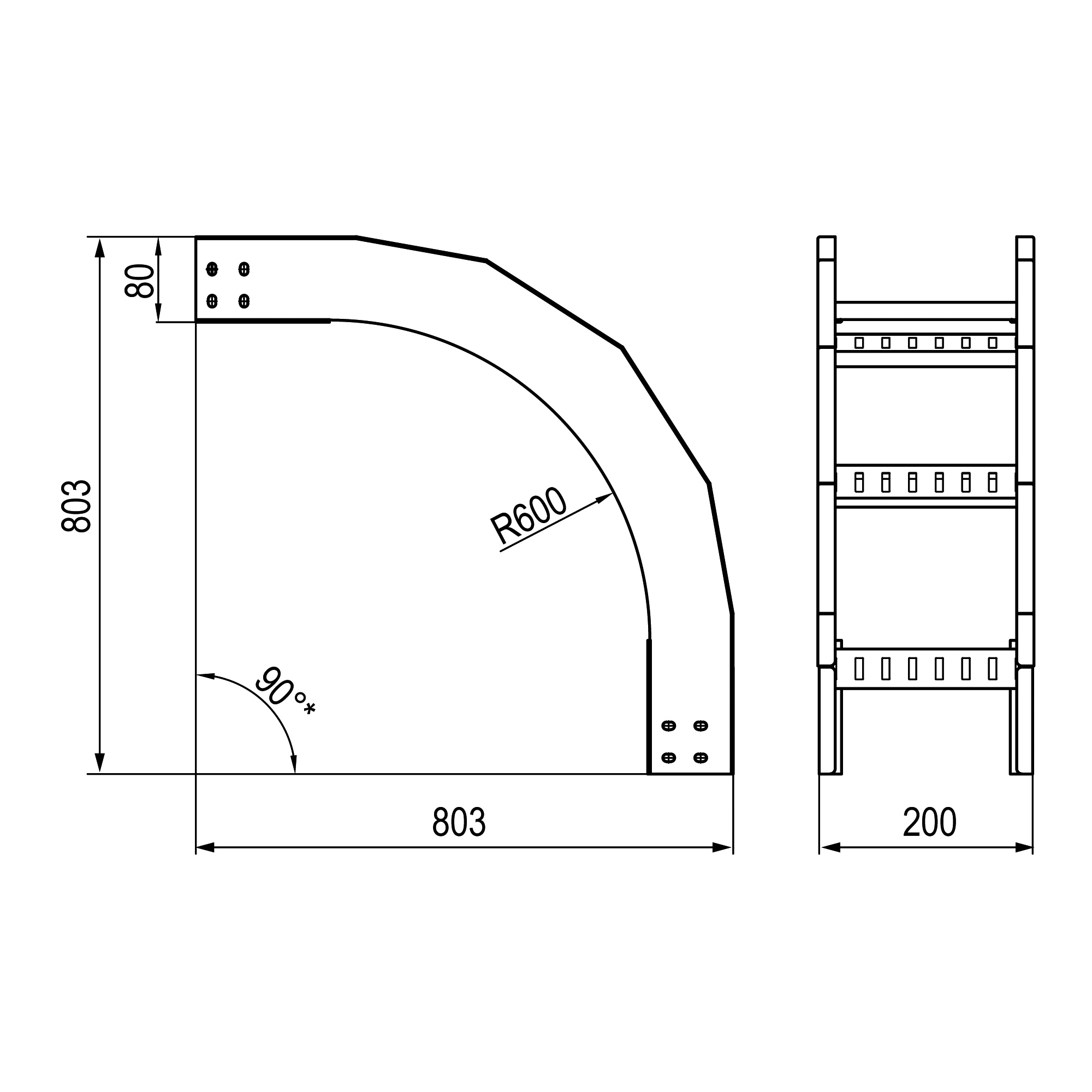

Drawings
Seria Name Autodesk Revit STEP SAT DWG (dynamic blocks) Intergraph AVEVA
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
