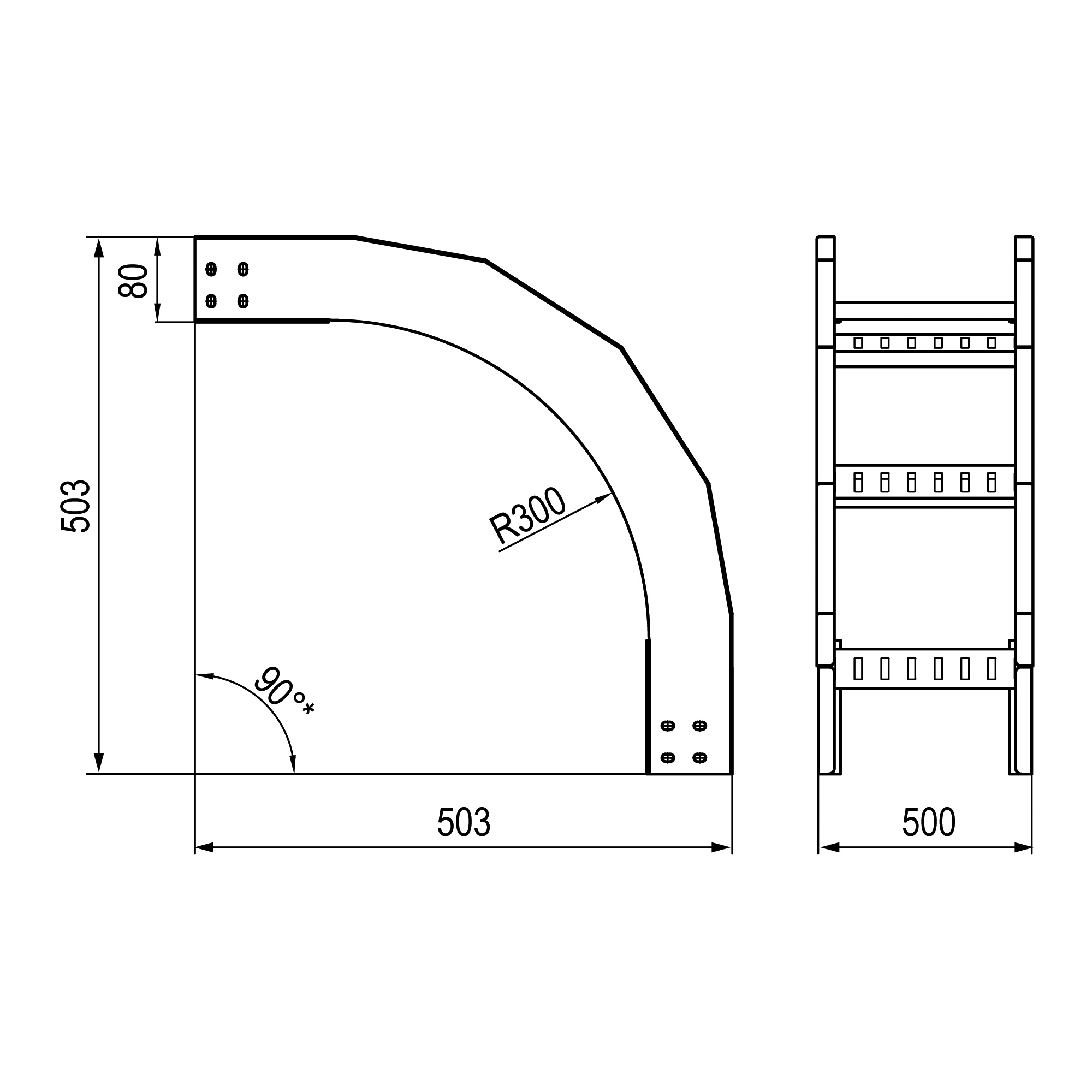

External vertical angle 90° 80x500, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LO8350KHDZ
External vertical angle 90° 80x500, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws,  nuts)
  • To ask a question
Colour Light grey
Deflection (angle) 90°
Cable tray width, mm 500
Cable tray height, mm 80
Stainless steel, pickled No
Wide span model No
Suitable for circuit integrity No
With cover No
Surface protection Hot-dip galvanized
Material quality Steel
Material Steel
Product type System accessories
Type of accessories 90º vertical external bend
Height 80 mm
Width 500 mm
Material Hot-dip galvanized
Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
