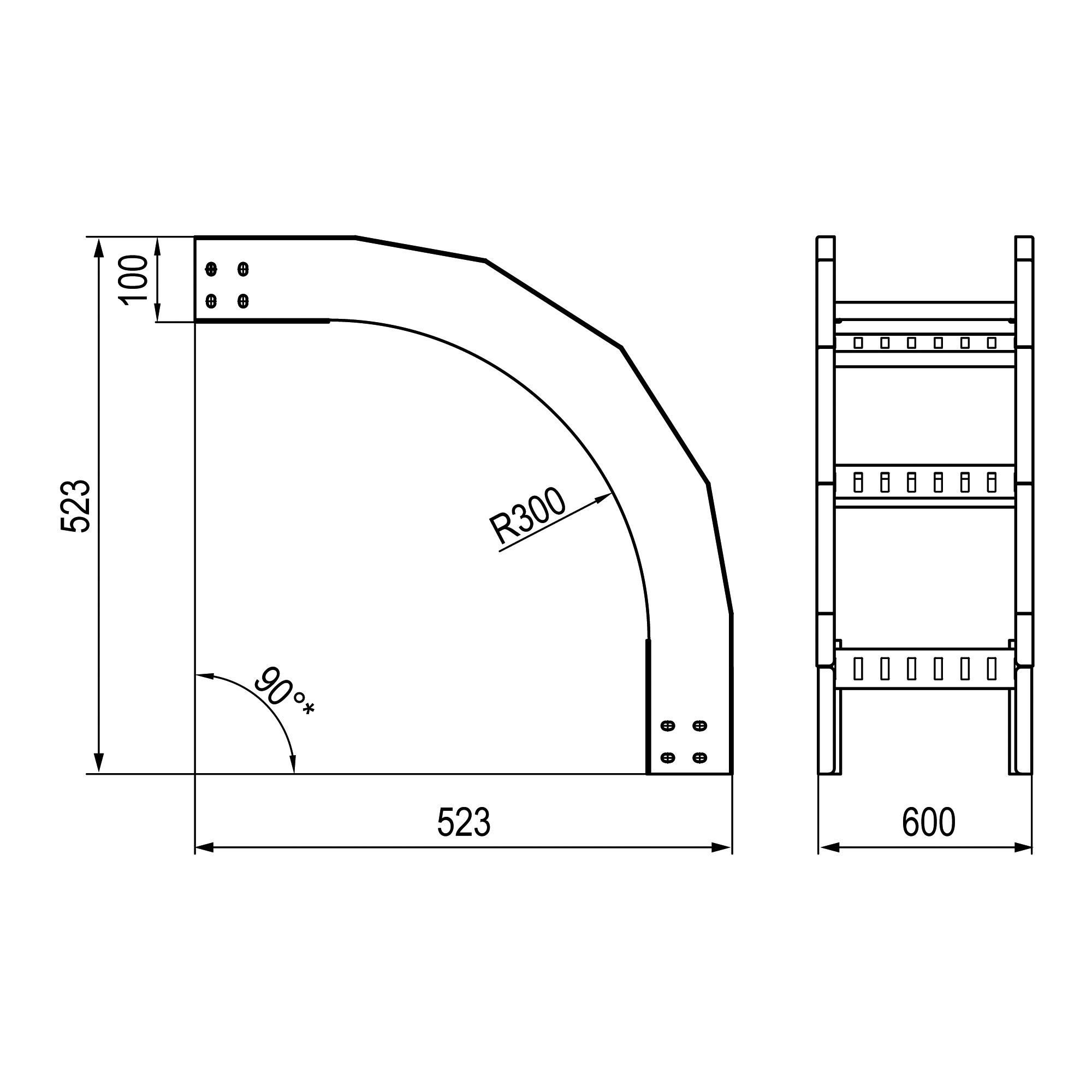

External vertical angle 90° 100х600, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LO1360KHDZ
External vertical angle 90° 100х600, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws,  nuts)
  • To ask a question
Colour Light grey
Deflection (angle) 90°
Cable tray width, mm 600
Cable tray height, mm 100
Stainless steel, pickled Yes
Wide span model Yes
Suitable for circuit integrity Yes
With cover Yes
Surface protection Hot-dip galvanized
Material quality Steel
Material Steel
Change of direction Vertically descending
Product type System accessories
Type of accessories 90º vertical external bend
Height 100 mm
Width 600 mm
Material Hot-dip galvanized
Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
