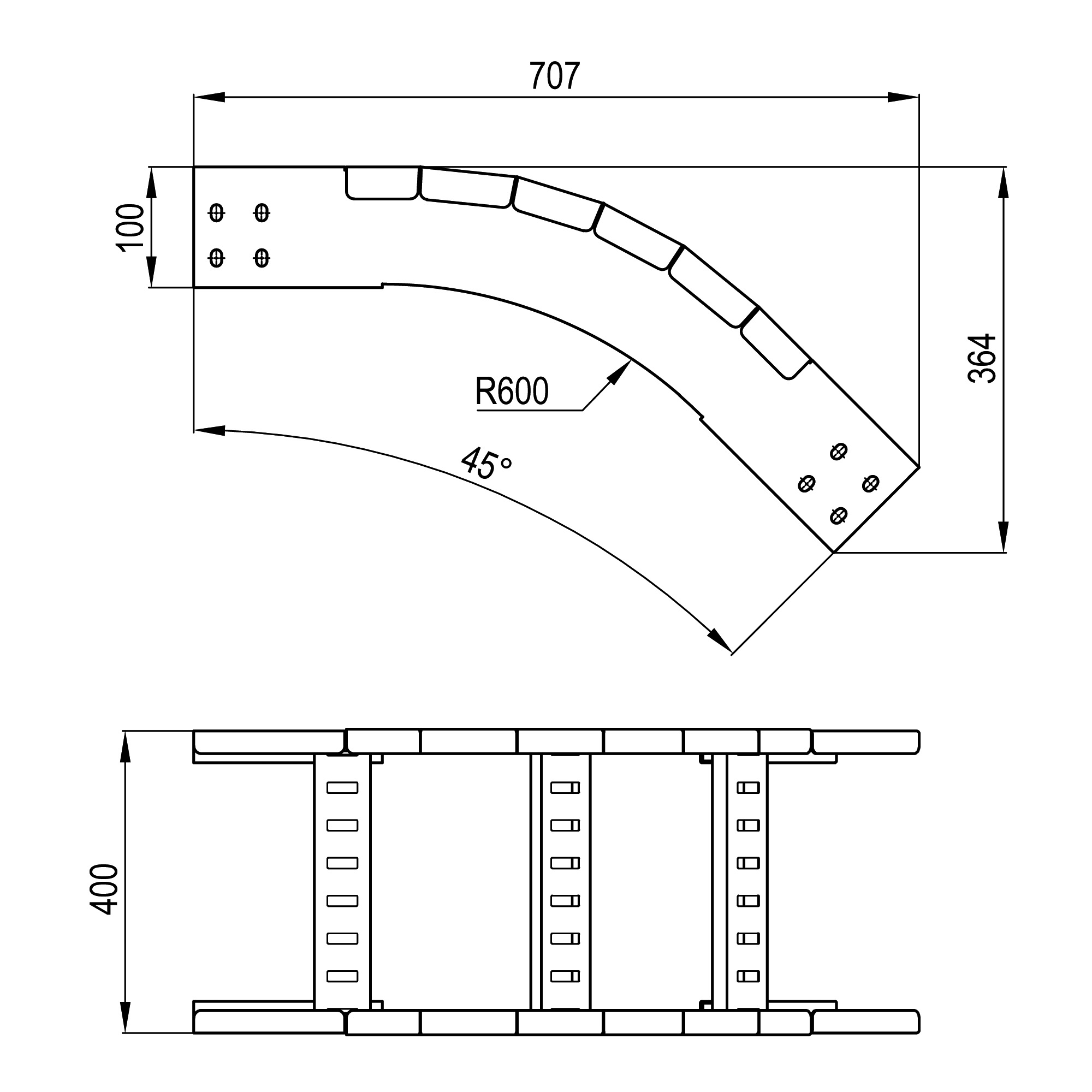

External vertical angle 45° 100x400, R600, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)
Code: LO0164KHDZ
External vertical angle 45° 100x400, R600, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)
Code: LO0164KHDZ
| Type of rung | Perforated profile |
| Cable ladder width, mm | 400 |
| Cable ladder height, mm | 100 |
| Type of side joist | Profile (open) |
| Product type | System accessories |
| Type of accessories | 45º vertical external bend |
| Height | 100 mm |
| Side rail thickness | 1.2 mm |
| Material | Hot-dip galvanized |
| Width | 400 mm |
| 19 мм | 600 mm |
