Cover for External vertical angle 45° 100x400, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LKO0134KHDZ

Cover for External vertical angle 45° 100x400, R300, hot galvanizing method, included with fasteners (joint plates GTO, screws, nuts)

Code: LKO0134KHDZ
Colour Light grey
Width, mm 400
Deflection (angle) 45°
Material Steel
Material quality Steel
Stainless steel, pickled Yes
Suitable for circuit integrity Yes
Surface protection Hot-dip galvanized
Type of fastening Snapped on
Change of direction Vertically descending
Product type Covers for system accessories
Type of accessories Cover for 45º vertical external bend
Height 100 mm
Thickness 1.0 mm
Material Hot-dip galvanized
Width 400 mm
19 мм 300 mm

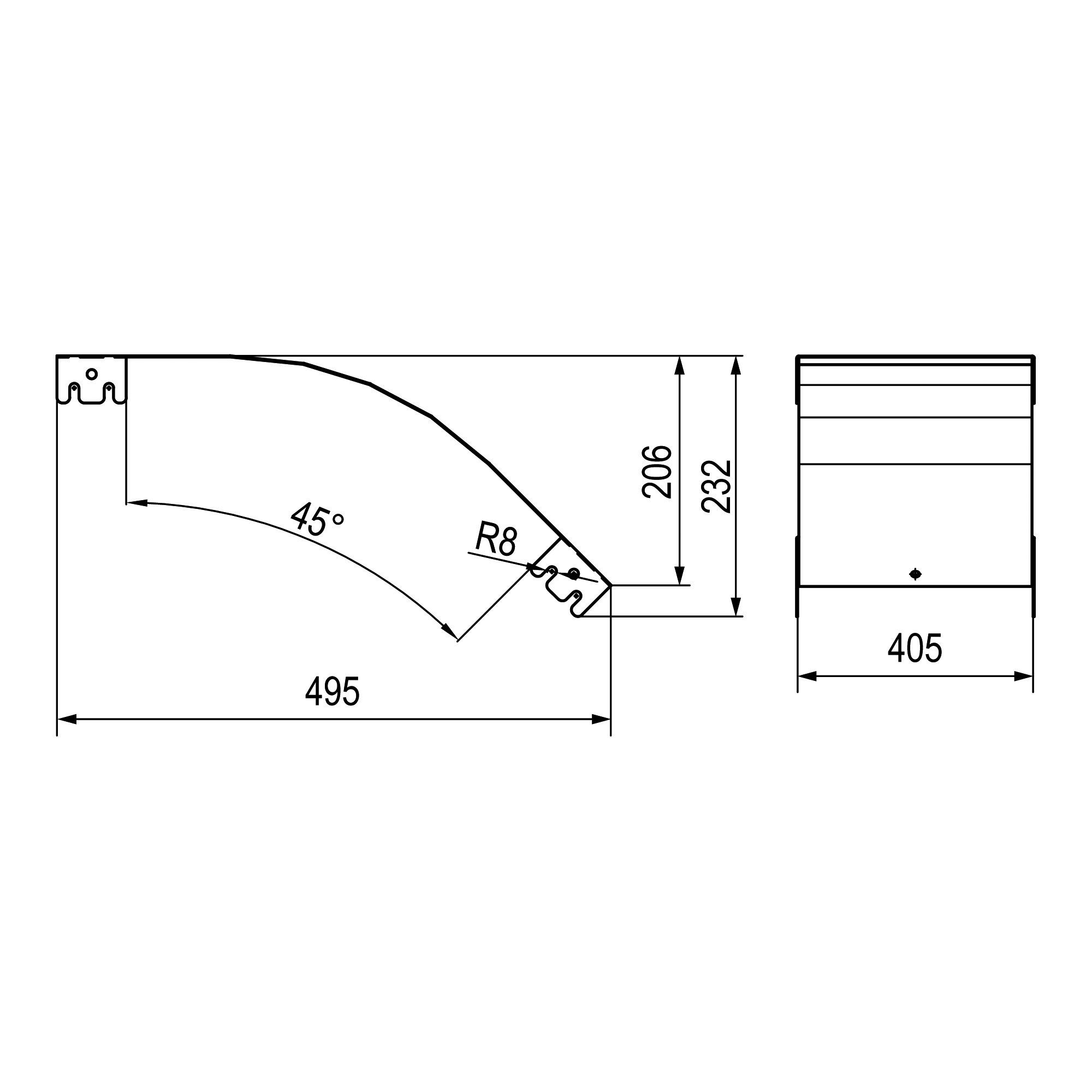

Drawings
Seria Name AVEVA Intergraph DWG (dynamic.) SAT STEP Autodesk Revit
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Metal ladder trays - "L5 Combitech"
Certificates
Name Document
